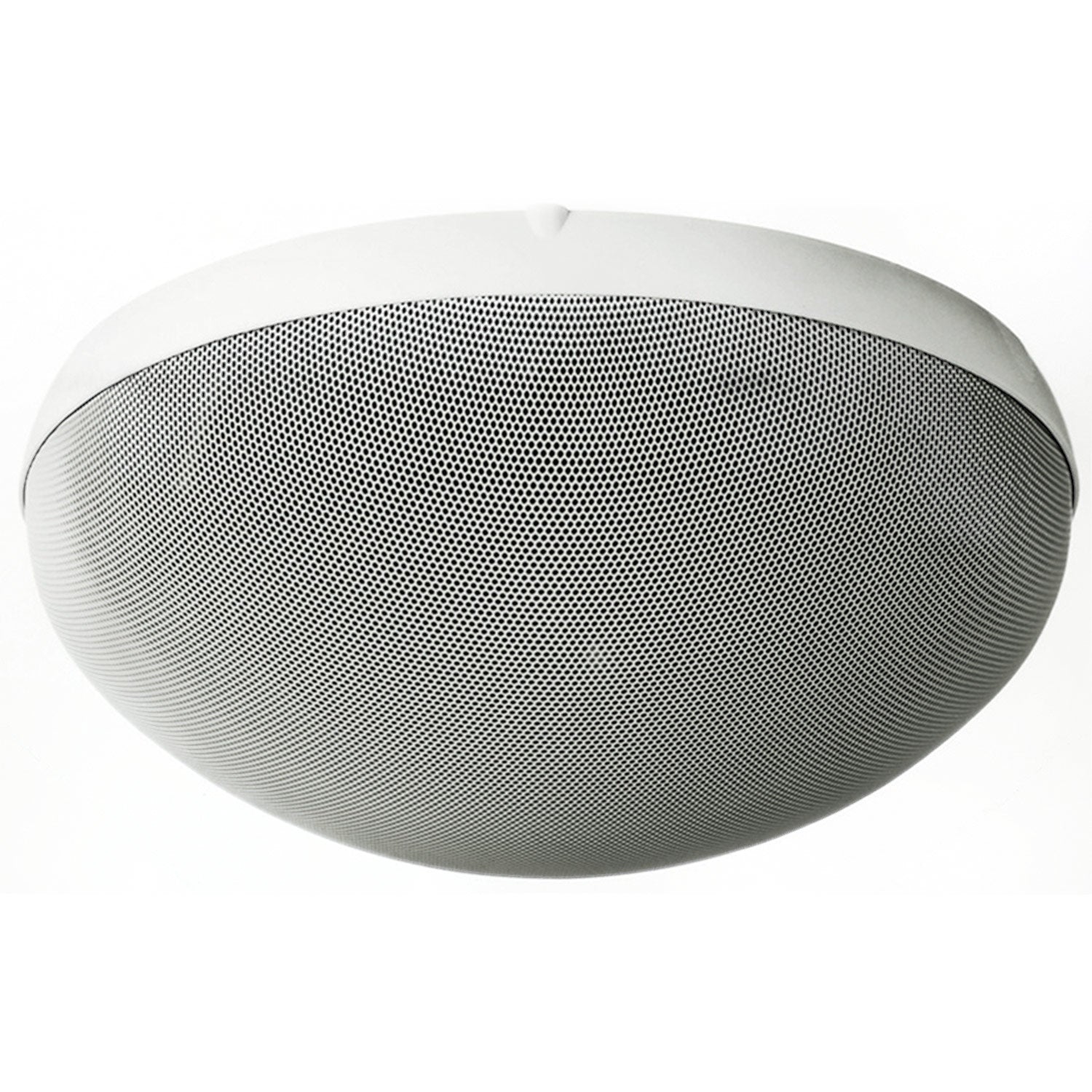

TOA H-2WP 2-Way Surface-Mount Ceiling Speaker System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Designed for outdoor-use applications, the H-2WP is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface. (For the installation on walls, however, keep the speaker facing down within 45 degrees left and right each.)
| Enclosure Type | Sealed type |
| Power Handling | 120 W (continuous program/4 ½), 40 W (continuous pink noise/4 ½) |
| Rated Input | 12 W (16 ½, high impedance) |
| Rated Impedance | 4 ½, 16 ½ 100 V line: 830 ½ (12 W), 1.7 k½ (6 W), 3.3 k½ (3 W) 70 V line: 420 ½ (12 W), 830 ½ (6 W), 1.7 k½ (3 W), 3.3 k½ (1.5 W) |
| Sensitivity | 88 dB (1 W, 1 m) at installation in 1/2 free sound field (Measured by installing the unit in the center of a wall.) |
| Frequency Response | 100 Hz - 20 kHz |
| Dust/Water Protection | IP64 |
| Speaker Component | Low frequency: 10 cm cone-type, High frequency: Balanced dome-type |
| Input Terminal | Detachable screw terminal, (+)/(-) 2 each (for bridging connection) |
| Usable Cable | Solid cable, stranded cable: 0.2 - 2.5 m_ (AWG No. 24 - 14 equivalent) |
| Finish | Punched net: Steel plate (zinc plating), white, powder coating Frame: Fire-resistant ABS, white, paint Base frame: Stainless plate |
| Dimensions | _268 _ 111 mm |
| Weight | 2.1 kg (including base frame) |
| Accessory | Base frame ÉÉ1, Electrical box mounting screw ÉÉ1 set |
| Usable Electrical Box | 1-gang type (with cover)(*1) |
| Other Feature | Angle of speaker: 360 degrees adjustable in parallel to the mounting surface (The angle should be kept within 45 degrees left and right each in a downward direction for the wall installation.) |
| (*1) Without using an electrical box | mounting the supplied base frame directly to a wall or ceiling allows the speaker installation. |
| Note: Do not install the unit where it is likely to be corroded in such places as indoor pools | bathrooms |
Designed for outdoor-use applications, the H-2WP is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface. (For the installation on walls, however, keep the speaker facing down within 45 degrees left and right each.)
| Enclosure Type | Sealed type |
| Power Handling | 120 W (continuous program/4 ½), 40 W (continuous pink noise/4 ½) |
| Rated Input | 12 W (16 ½, high impedance) |
| Rated Impedance | 4 ½, 16 ½ 100 V line: 830 ½ (12 W), 1.7 k½ (6 W), 3.3 k½ (3 W) 70 V line: 420 ½ (12 W), 830 ½ (6 W), 1.7 k½ (3 W), 3.3 k½ (1.5 W) |
| Sensitivity | 88 dB (1 W, 1 m) at installation in 1/2 free sound field (Measured by installing the unit in the center of a wall.) |
| Frequency Response | 100 Hz - 20 kHz |
| Dust/Water Protection | IP64 |
| Speaker Component | Low frequency: 10 cm cone-type, High frequency: Balanced dome-type |
| Input Terminal | Detachable screw terminal, (+)/(-) 2 each (for bridging connection) |
| Usable Cable | Solid cable, stranded cable: 0.2 - 2.5 m_ (AWG No. 24 - 14 equivalent) |
| Finish | Punched net: Steel plate (zinc plating), white, powder coating Frame: Fire-resistant ABS, white, paint Base frame: Stainless plate |
| Dimensions | _268 _ 111 mm |
| Weight | 2.1 kg (including base frame) |
| Accessory | Base frame ÉÉ1, Electrical box mounting screw ÉÉ1 set |
| Usable Electrical Box | 1-gang type (with cover)(*1) |
| Other Feature | Angle of speaker: 360 degrees adjustable in parallel to the mounting surface (The angle should be kept within 45 degrees left and right each in a downward direction for the wall installation.) |
| (*1) Without using an electrical box | mounting the supplied base frame directly to a wall or ceiling allows the speaker installation. |
| Note: Do not install the unit where it is likely to be corroded in such places as indoor pools | bathrooms |
