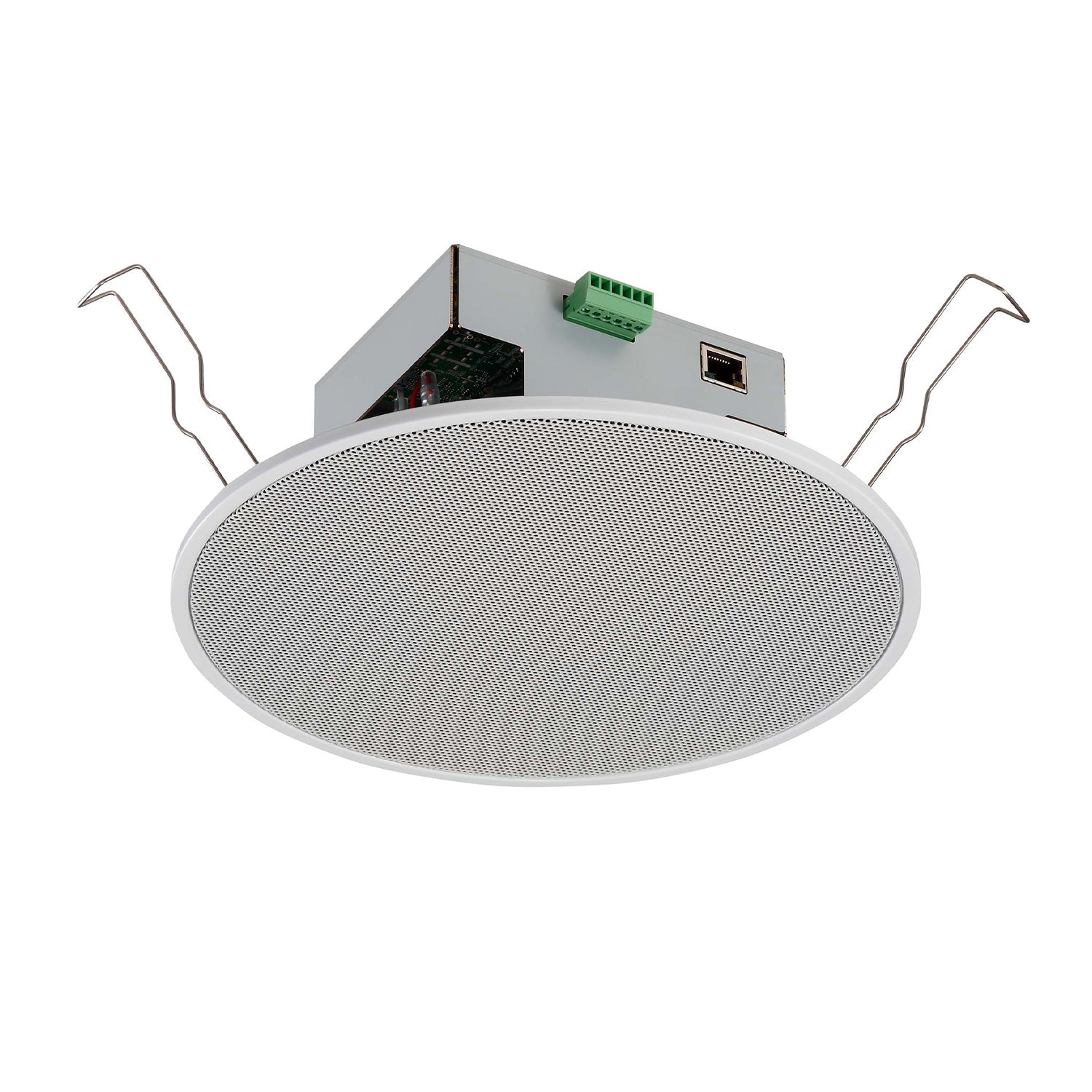

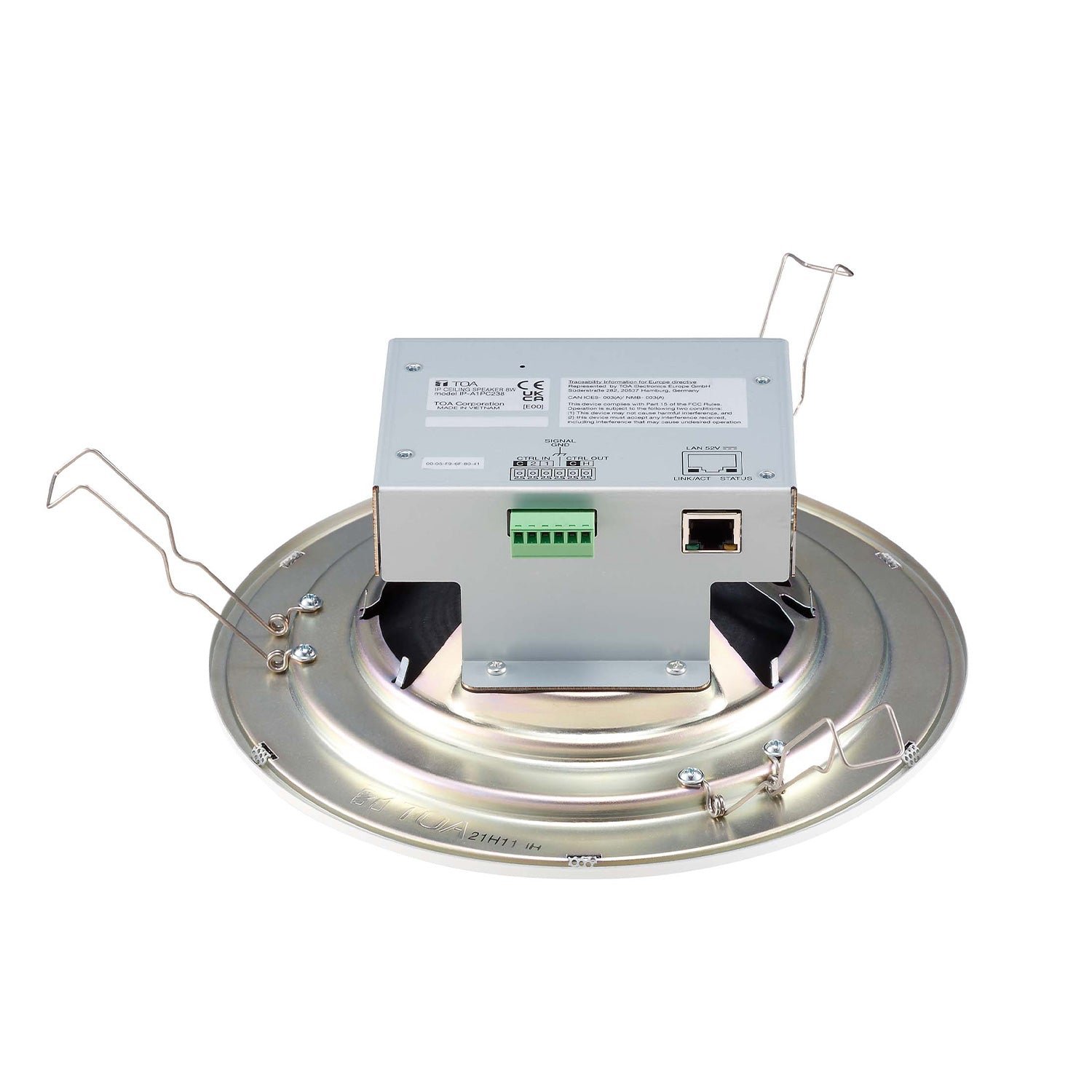

TOA IP-A1PC238 - 8-Watt IP Ceiling Speaker for IP-A1 Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
TOA IP-A1PC238 - 8-Watt IP Ceiling Speaker for IP-A1 Series
Sale price$567.00
Regular price$700.00
Description
The IP-A1PC238 is a PoE-powered Ceiling Speaker with a built-in 8 W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management System via ONVIF audio backchannel. Device control and further system integration is accessed through remote API (HTTP) or local control inputs.
Features:
- 16cm (6") cone-type speaker for in-ceiling installations
- Receive SIP audio, ONVIF Audio Backchannel and Multicast
- Local broadcast using internal audio files
- 8W built-in amplifier
- 2 control inputs and 1 control output
- HTTP commands (receive)
- Audio file storage (20 files, total 80MB, WAV/MP3)
- Playback programs (Repeat, Weekly Timer)
- PoE powered
| Power Source | PoE (IEEE802.3af Class 3) |
| Power Consumption | 12.95 W (rated output) 5 W (IEC62368-1) |
| Amplifier Rated Output | 8 W |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Maximum Sound Pressure Level | 103 dB (8 W, 1 m) |
| Frequency Response | 60 Hz - 20 kHz (peak - 20 dB) |
| Speaker Component | 16 cm (6") cone-type |
| Audio Codec | PCMU (G.711u), PCMA (G.711a), G.722 |
| Broadcasting Mode | SIP Broadcasting Mode: PCMU/PCMA/G.722, P2P/SIP Server Connection Multicast Broadcasting Mode: PCMU/PCMA/G.722 Auto codec recognition, 20 ports VMS Broadcasting Mode: ONVIF Audio Backchannel, PCMU Internal Message Broadcasting Mode Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function. |
| Internal Messages | Max. 20 messages (Max. recording capacity: 80 MB) Supported file formats WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo Repeat playback: Playcount (1-10 times), Duration (5-3600 sec) or Timer (from Start time to End time) Interval time: 0 - 60 sec, Delay time: 0 - 30 sec Trigger: Control Input or Remote API (HTTP) |
| Network I/F | 100BASE-TX, Auto MDI/MDI-X, RJ45 connector |
| Network Protocol | TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261) |
| Control Input | 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins) |
| Control Output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, removable terminal block (6 pins) |
| Indicator | STATUS (orange), LINK/ACT (green) |
| Clock Accuracy | ±13 seconds per month |
| Time Adjustment | Manual time setting, Time adjustment by NTP server |
| Power Outage Protection Period | 24 hours (RTC time retention, at 40 ¡C (104 ¡F)) |
| Dimensions for Fixing Hole | Mounting hole: _200 ±2 mm (7.87" ±0.08") Ceiling thickness: 5 - 25 mm (0.2" - 0.98") |
| Speaker Mounting Method | Spring clamp |
| Operating Temperature | 0 ¡C to +50 ¡C (32 ¡F to 122 ¡F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Frame: Steel plate, white (RAL 9016 equivalent), paint Grill: Steel net, white (RAL 9016 equivalent), paint |
| Dimensions | _230 x 89 (D) mm (9.06" x 3.5") |
| Weight | 880 g (1.94 lb) |
| Accessory | Pattern paper ...1, Removable terminal plug (6 pins, preinstalled on the unit) ...1 |
The IP-A1PC238 is a PoE-powered Ceiling Speaker with a built-in 8 W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management System via ONVIF audio backchannel. Device control and further system integration is accessed through remote API (HTTP) or local control inputs.
Features:
- 16cm (6") cone-type speaker for in-ceiling installations
- Receive SIP audio, ONVIF Audio Backchannel and Multicast
- Local broadcast using internal audio files
- 8W built-in amplifier
- 2 control inputs and 1 control output
- HTTP commands (receive)
- Audio file storage (20 files, total 80MB, WAV/MP3)
- Playback programs (Repeat, Weekly Timer)
- PoE powered
| Power Source | PoE (IEEE802.3af Class 3) |
| Power Consumption | 12.95 W (rated output) 5 W (IEC62368-1) |
| Amplifier Rated Output | 8 W |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Maximum Sound Pressure Level | 103 dB (8 W, 1 m) |
| Frequency Response | 60 Hz - 20 kHz (peak - 20 dB) |
| Speaker Component | 16 cm (6") cone-type |
| Audio Codec | PCMU (G.711u), PCMA (G.711a), G.722 |
| Broadcasting Mode | SIP Broadcasting Mode: PCMU/PCMA/G.722, P2P/SIP Server Connection Multicast Broadcasting Mode: PCMU/PCMA/G.722 Auto codec recognition, 20 ports VMS Broadcasting Mode: ONVIF Audio Backchannel, PCMU Internal Message Broadcasting Mode Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function. |
| Internal Messages | Max. 20 messages (Max. recording capacity: 80 MB) Supported file formats WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo Repeat playback: Playcount (1-10 times), Duration (5-3600 sec) or Timer (from Start time to End time) Interval time: 0 - 60 sec, Delay time: 0 - 30 sec Trigger: Control Input or Remote API (HTTP) |
| Network I/F | 100BASE-TX, Auto MDI/MDI-X, RJ45 connector |
| Network Protocol | TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261) |
| Control Input | 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins) |
| Control Output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, removable terminal block (6 pins) |
| Indicator | STATUS (orange), LINK/ACT (green) |
| Clock Accuracy | ±13 seconds per month |
| Time Adjustment | Manual time setting, Time adjustment by NTP server |
| Power Outage Protection Period | 24 hours (RTC time retention, at 40 ¡C (104 ¡F)) |
| Dimensions for Fixing Hole | Mounting hole: _200 ±2 mm (7.87" ±0.08") Ceiling thickness: 5 - 25 mm (0.2" - 0.98") |
| Speaker Mounting Method | Spring clamp |
| Operating Temperature | 0 ¡C to +50 ¡C (32 ¡F to 122 ¡F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Frame: Steel plate, white (RAL 9016 equivalent), paint Grill: Steel net, white (RAL 9016 equivalent), paint |
| Dimensions | _230 x 89 (D) mm (9.06" x 3.5") |
| Weight | 880 g (1.94 lb) |
| Accessory | Pattern paper ...1, Removable terminal plug (6 pins, preinstalled on the unit) ...1 |
