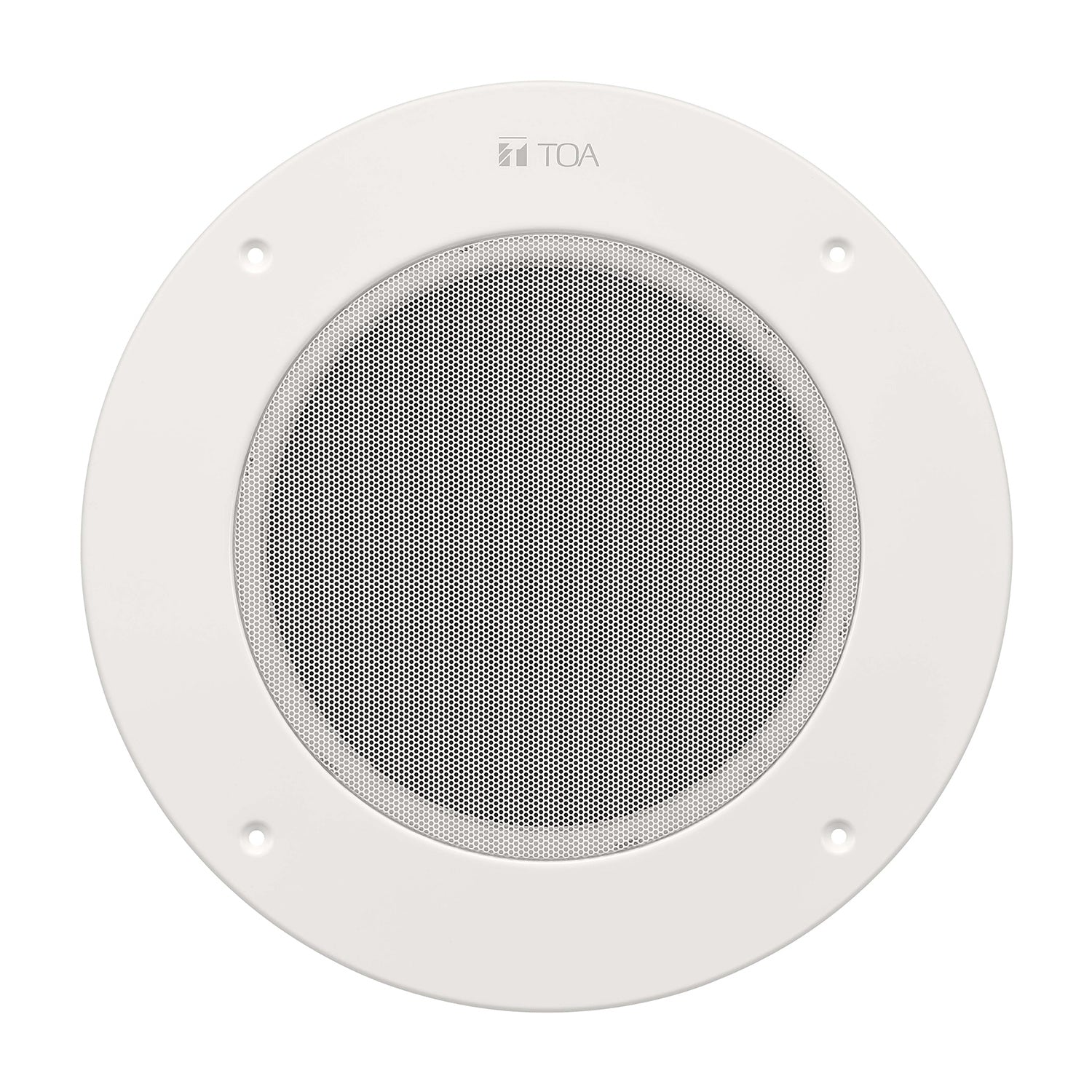

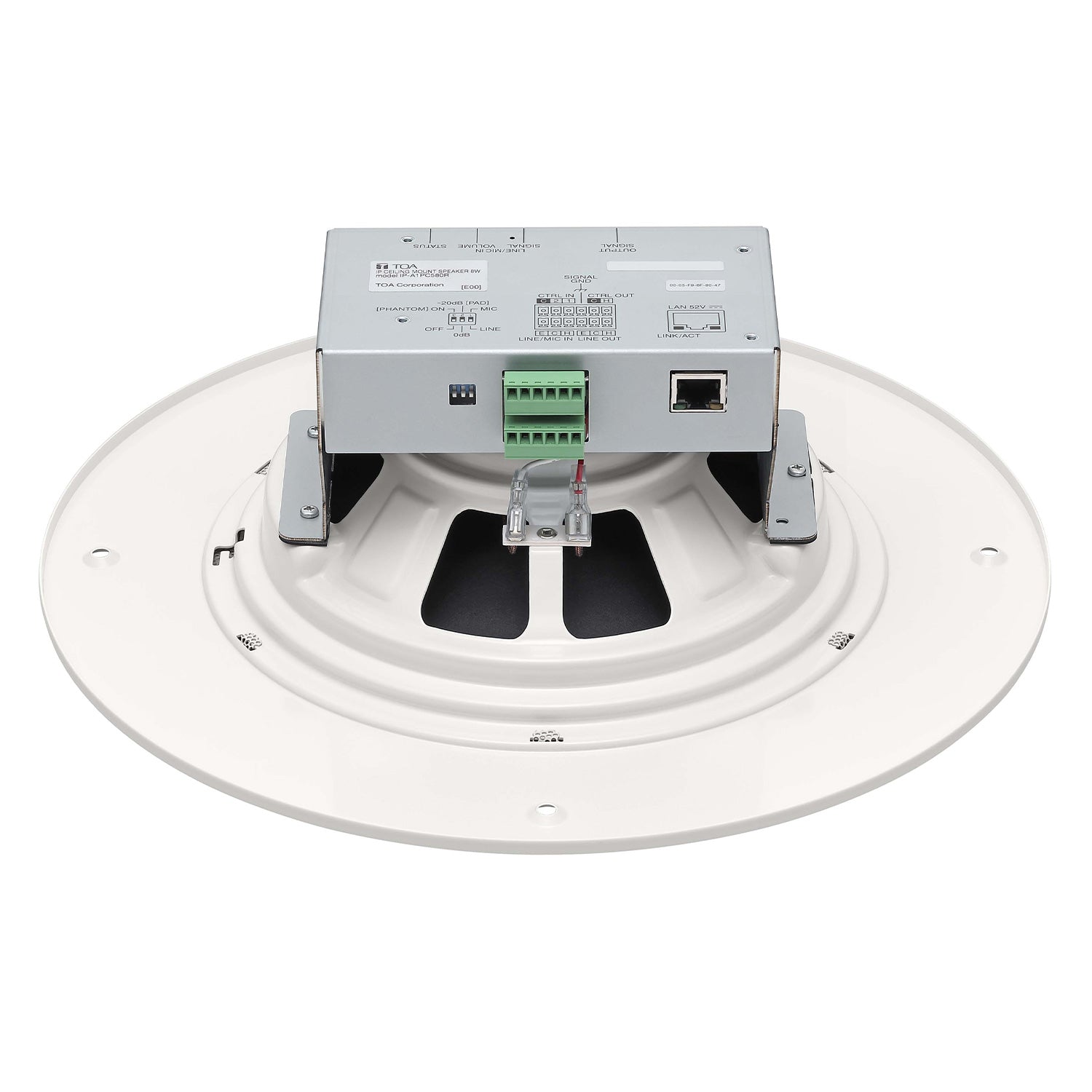

TOA IP-A1PC580R - 8-Watt IP Ceiling Mount Speaker for IP-A1 Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
TOA IP-A1PC580R - 8-Watt IP Ceiling Mount Speaker for IP-A1 Series
Sale price$678.00
Regular price$839.00
Description
The IP-A1PC580R is a PoE-powered Ceiling Speaker with a built-in 8W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management System via ONVIF audio backchannel. Device control and further system integration is accessed through remote API (HTTP) or local control inputs.
Features:
- 20cm (8") dual cone-type speaker with metal construction
- Receive SIP audio, ONVIF Audio Backchannel and Multicast
- Local broadcast using internal audio files
- 1 audio input (LINE/MIC selectable, phantom power On/Off)
- 8W built-in amplifier, 1 LINE audio output
- 2 control inputs and 1 control output
- HTTP commands (receive)
- Audio file storage (20 files, total 80MB, WAV/MP3)
- Playback programs (Repeat, Weekly Timer)
- PoE powered
| Power Source | PoE (IEEE802.3af Class 3) |
| Power Consumption | 12.95 W (rated output) 5 W (IEC62368-1) |
| Amplifier Rated Output | 8 W |
| Sensitivity | 97 dB (1 W,1 m) |
| Maximum Sound Pressure Level | 106 dB (8 W,1 m) |
| Frequency Response | 50 Hz - 16.5 kHz |
| Speaker Component | 20 cm (8") Dual cone-type |
| Audio Codec | PCMU (G.711u), PCMA (G.711a), G.722 |
| Broadcasting Mode | SIP Broadcasting/SIP calling Mode: PCMU/PCMA/G.722, P2P/SIP Server Connection Multicast Broadcasting Mode: PCMU/PCMA/G.722 Auto codec recognition, 20 ports VMS Broadcasting Mode: ONVIF Audio Backchannel, PCMU Internal Message Broadcasting Mode Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function. |
| Internal Messages | Max. 20 messages (Max. recording capacity: 80 MB) Supported file format: WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo Repeat playback: Playcount (1 - 10 times), Duration (5 - 3600 sec) or Timer (from Start time to End time) Interval time: 0 - 60 sec, Delay time: 0 - 30 sec Trigger: Control Input or Remote API (HTTP) |
| Network I/F | 100BASE-TX, Auto MDI/MDI-X, RJ45 connector |
| Network Protocol | TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP(RFC3261) |
| Audio Input | 1 channel, electronically-balanced,10 k½ LINE/MIC selectable (Rated input: LINE: 0 dB (*1), MIC: -60 dB(*1)) PAD function(-20 dB(*1)), Phantom power ON/OFF(12 V DC), volume adjustable removable terminal block(6 pins) |
| Audio Output | 1 channel, electronically-balanced, 600 ½ or less Rated output: 0 dB(*1), removable terminal block (6 pins) |
| Control Input | 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins) |
| Control Output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, removable terminal block (6 pins) |
| Indicator | STATUS (green/blue/orange/red), LINE/MIC IN (green/red), OUTPUT(green), LINK/ACT(green) |
| Clock Accuracy | ±13 seconds per month |
| Time Adjustment | Manual time setting, Time adjustment by NTP server |
| Power Outage Protection Period | 24 hours (RTC time retention, at 40 ¡C (104 ¡F)) |
| Dimensions for Fixing Hole | Mounting hole: _228.6 mm (9") |
| Speaker Mounting Method | Screw in type |
| Operating Temperature | 0 ¡C to +50 ¡C (32 ¡F to 122 ¡F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Frame: Steel plate, white (RAL 9016 equivalent), paint Grill: Steel net, white (RAL 9016 equivalent), paint |
| Dimensions | _324 _111 (D) mm (12.76" _4.37") |
| Weight | 1.8 kg (3.97 lb.) |
| Accessory | Pattern paper...1, Removable terminal plug (6 pins, preinstalled on the unit) ...2, Mounting screw (5 x 38) ...4 |
| Option | Back Can (for UL 2043 certified installation): HY-BC580U |
The IP-A1PC580R is a PoE-powered Ceiling Speaker with a built-in 8W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management System via ONVIF audio backchannel. Device control and further system integration is accessed through remote API (HTTP) or local control inputs.
Features:
- 20cm (8") dual cone-type speaker with metal construction
- Receive SIP audio, ONVIF Audio Backchannel and Multicast
- Local broadcast using internal audio files
- 1 audio input (LINE/MIC selectable, phantom power On/Off)
- 8W built-in amplifier, 1 LINE audio output
- 2 control inputs and 1 control output
- HTTP commands (receive)
- Audio file storage (20 files, total 80MB, WAV/MP3)
- Playback programs (Repeat, Weekly Timer)
- PoE powered
| Power Source | PoE (IEEE802.3af Class 3) |
| Power Consumption | 12.95 W (rated output) 5 W (IEC62368-1) |
| Amplifier Rated Output | 8 W |
| Sensitivity | 97 dB (1 W,1 m) |
| Maximum Sound Pressure Level | 106 dB (8 W,1 m) |
| Frequency Response | 50 Hz - 16.5 kHz |
| Speaker Component | 20 cm (8") Dual cone-type |
| Audio Codec | PCMU (G.711u), PCMA (G.711a), G.722 |
| Broadcasting Mode | SIP Broadcasting/SIP calling Mode: PCMU/PCMA/G.722, P2P/SIP Server Connection Multicast Broadcasting Mode: PCMU/PCMA/G.722 Auto codec recognition, 20 ports VMS Broadcasting Mode: ONVIF Audio Backchannel, PCMU Internal Message Broadcasting Mode Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function. |
| Internal Messages | Max. 20 messages (Max. recording capacity: 80 MB) Supported file format: WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo Repeat playback: Playcount (1 - 10 times), Duration (5 - 3600 sec) or Timer (from Start time to End time) Interval time: 0 - 60 sec, Delay time: 0 - 30 sec Trigger: Control Input or Remote API (HTTP) |
| Network I/F | 100BASE-TX, Auto MDI/MDI-X, RJ45 connector |
| Network Protocol | TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP(RFC3261) |
| Audio Input | 1 channel, electronically-balanced,10 k½ LINE/MIC selectable (Rated input: LINE: 0 dB (*1), MIC: -60 dB(*1)) PAD function(-20 dB(*1)), Phantom power ON/OFF(12 V DC), volume adjustable removable terminal block(6 pins) |
| Audio Output | 1 channel, electronically-balanced, 600 ½ or less Rated output: 0 dB(*1), removable terminal block (6 pins) |
| Control Input | 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins) |
| Control Output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, removable terminal block (6 pins) |
| Indicator | STATUS (green/blue/orange/red), LINE/MIC IN (green/red), OUTPUT(green), LINK/ACT(green) |
| Clock Accuracy | ±13 seconds per month |
| Time Adjustment | Manual time setting, Time adjustment by NTP server |
| Power Outage Protection Period | 24 hours (RTC time retention, at 40 ¡C (104 ¡F)) |
| Dimensions for Fixing Hole | Mounting hole: _228.6 mm (9") |
| Speaker Mounting Method | Screw in type |
| Operating Temperature | 0 ¡C to +50 ¡C (32 ¡F to 122 ¡F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Frame: Steel plate, white (RAL 9016 equivalent), paint Grill: Steel net, white (RAL 9016 equivalent), paint |
| Dimensions | _324 _111 (D) mm (12.76" _4.37") |
| Weight | 1.8 kg (3.97 lb.) |
| Accessory | Pattern paper...1, Removable terminal plug (6 pins, preinstalled on the unit) ...2, Mounting screw (5 x 38) ...4 |
| Option | Back Can (for UL 2043 certified installation): HY-BC580U |
