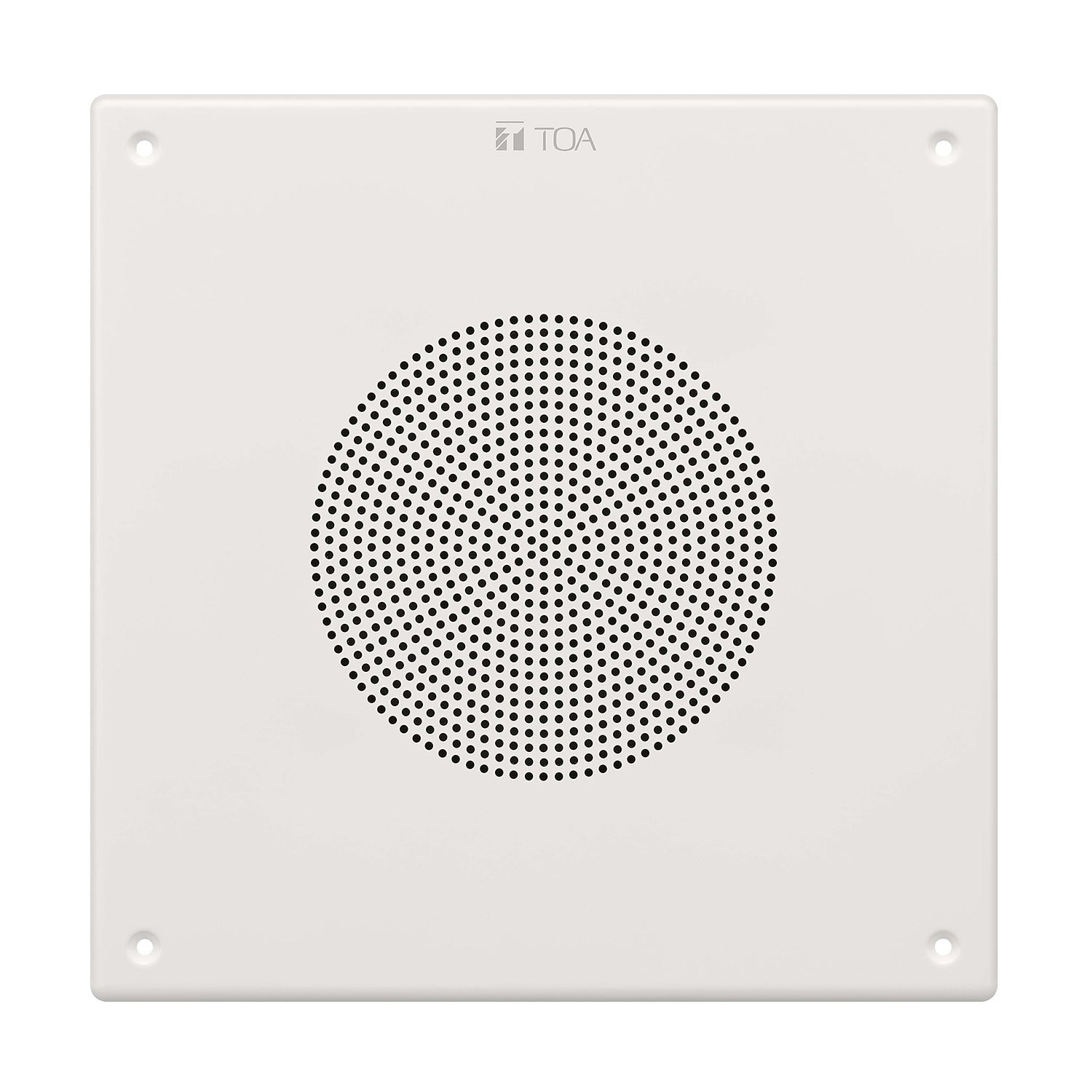

TOA IP-A1PC580S - 8-Watt IP Square Speaker for IP-A1 Series



  • Dale #:

    TOA-IPA1PC580S

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The IP-A1PC580S is a PoE-powered Surface mount Speaker with a built-in 8W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive b... Read More

Retail Price: $739.00 Our Price: $597.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The IP-A1PC580S is a PoE-powered Surface mount Speaker with a built-in 8W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management System via ONVIF audio backchannel. Device control and further system integration is accessed through remote API (HTTP) or local control inputs.

Features:

  • 20cm (8 in.) dual cone-type speaker with metal construction
  • Receive SIP audio, ONVIF Audio Backchannel and Multicast
  • Local broadcast using internal audio files
  • 1 audio input (LINE/MIC selectable, phantom power On/Off)
  • 8W built-in amplifier, 1 LINE audio output
  • 2 control inputs and 1 control output
  • HTTP commands (receive)
  • Audio file storage (20 files, total 80MB, WAV/MP3)
  • Playback programs (Repeat, Weekly Timer)
  • PoE powered

More +

Product Specs

Power Source PoE (IEEE802.3af Class 3)
Power Consumption 12.95 W (rated output)
5 W (IEC62368-1)
Amplifier Rated Output 8 W
Sensitivity 97 dB (1 W,1 m)
Maximum Sound Pressure Level 106 dB (8 W,1 m)
Frequency Response 50 Hz - 16.5 kHz
Speaker Component 20 cm (8") Dual cone-type
Audio Codec PCMU (G.711u), PCMA (G.711a), G.722
Broadcasting Mode SIP Broadcasting/SIP calling Mode: PCMU/PCMA/G.722, P2P/SIP Server Connection
Multicast Broadcasting Mode: PCMU/PCMA/G.722 Auto codec recognition, 20 ports
VMS Broadcasting Mode: ONVIF Audio Backchannel, PCMU
Internal Message Broadcasting Mode
Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.
Internal Messages Max. 20 messages (Max. recording capacity: 80 MB)
Supported file format:
WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount (1 - 10 times), Duration (5 - 3600 sec) or Timer (from Start time to End time)
Interval time: 0 - 60 sec, Delay time: 0 - 30 sec
Trigger: Control Input or Remote API (HTTP)
Network I/F 100BASE-TX, Auto MDI/MDI-X, RJ45 connector
Network Protocol TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP(RFC3261)
Audio Input 1 channel, electronically-balanced,10 kΩ LINE/MIC selectable (Rated input: LINE: 0 dB (*1), MIC: -60 dB(*1))
PAD function(-20 dB(*1)), Phantom power ON/OFF(12 V DC), volume adjustable removable terminal block(6 pins)
Audio Output 1 channel, electronically-balanced, 600 Ω or less
Rated output: 0 dB(*1), removable terminal block (6 pins)
Control Input 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins)
Control Output 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, removable terminal block (6 pins)
Indicator STATUS (green/blue/orange/red), LINE/MIC IN (green/red), OUTPUT(green), LINK/ACT(green)
Clock Accuracy ±13 seconds per month
Time Adjustment Manual time setting, Time adjustment by NTP server
Power Outage Protection Period 24 hours (RTC time retention, at 40 °C (104 °F))
Dimensions for Fixing Hole Mounting hole: Φ228.6 mm (9")
Speaker Mounting Method Screw in type
Operating Temperature 0 °C to +50 °C (32 °F to 122 °F)
Operating Humidity 90 %RH or less (no condensation)
Finish Frame: Steel plate, white (RAL 9016 equivalent), paint
Grill: Steel net, white (RAL 9016 equivalent), paint
Dimensions 318 (W) × 318 (H) x 108 (D) mm (12.52" × 12.52" x 4.25")
Weight 2 kg (4.41 lb.)
Accessory Pattern paper...1, Removable terminal plug (6 pins, preinstalled on the unit) ...2, Mounting screw (5 x 38) ...4
