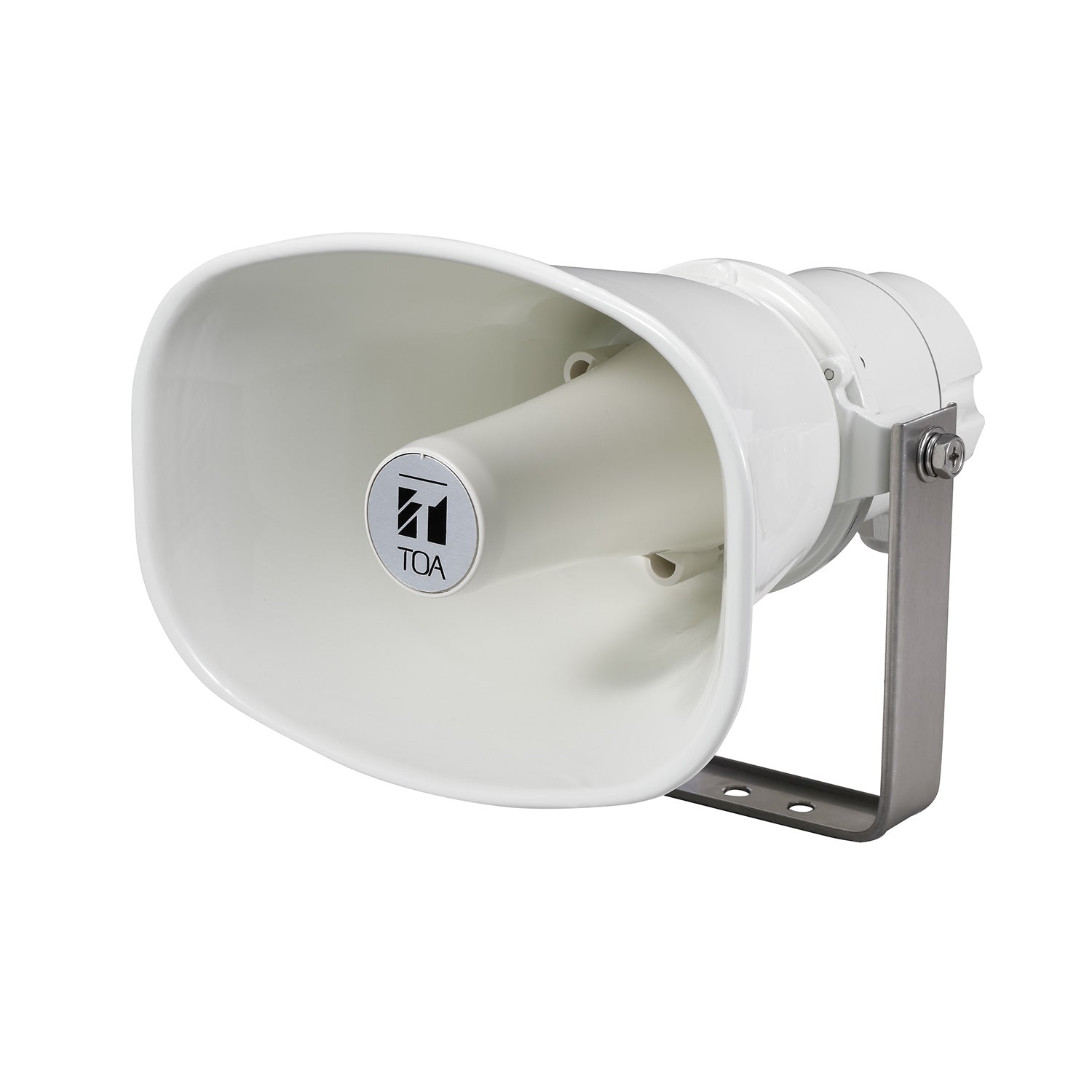

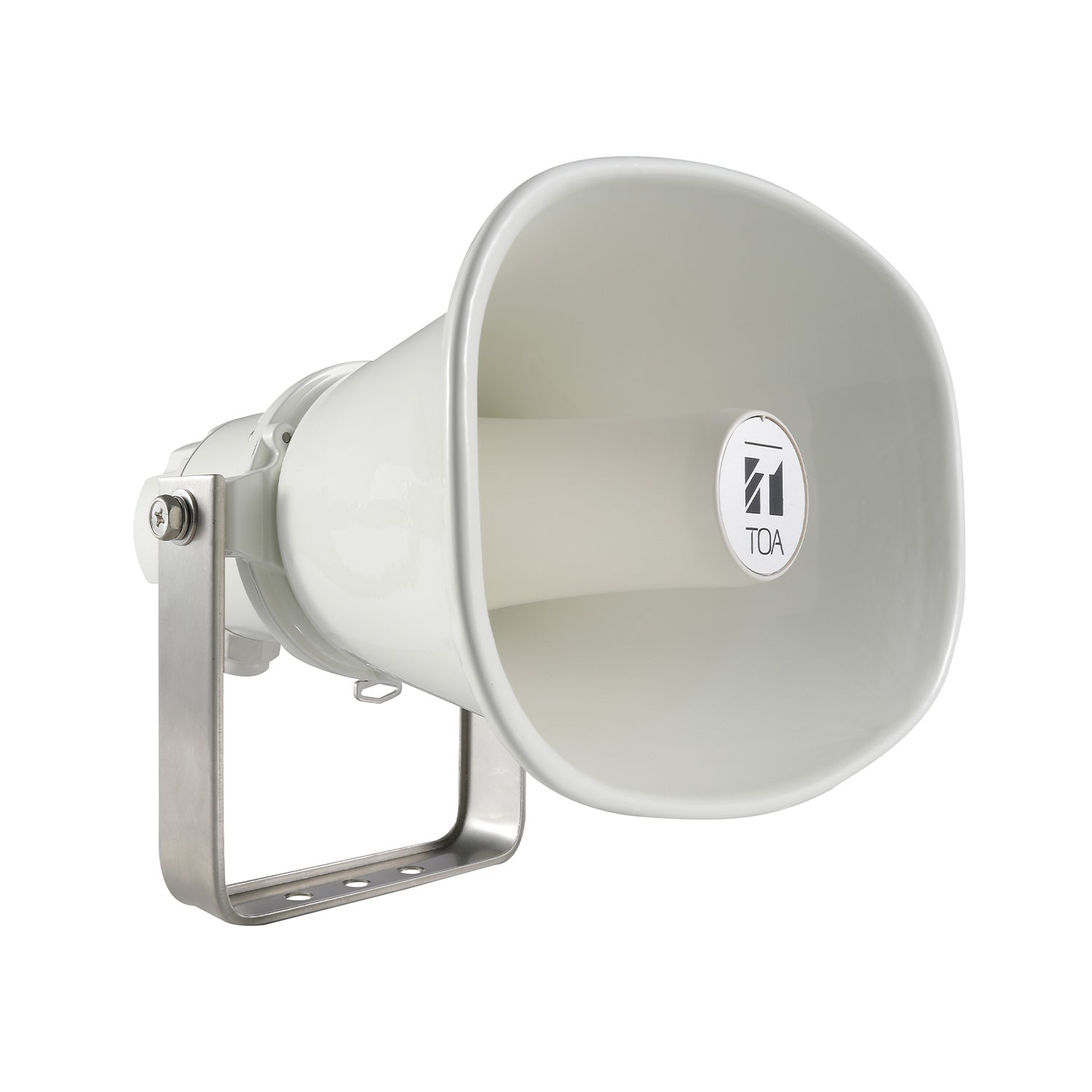

TOA IP-A1SC15 - IP Paging Horn Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IP-A1SC15 connects to your VMS network with a single LAN cable and can be assigned an IP address - allowing you to combine video and audio systems. Respond immediately to emergency situations with live announcements or prerecorded messages with one of four different audio broadcasting modes (SIP Direct Call, Multicast Streaming, VMS Broadcast and Remote API). This allows the broadcast to be prioritized right away - overriding any other current announcement.
Additionally, the IP Setting Tool allows you to assign IP addresses to all IP Horn Speakers during set-up. Once you establish both the network and host ID for one speaker, all others will automatically assign IP addresses for the remaining devices. Finalize each IP horn speaker to its optimal sound by adjusting settings dependent upon height, distance and speaker environment.
Features:
- 124dB (PoE+ powered) with IP66 rating for outdoor installations
- Receive SIP audio, ONVIF Audio Backchannel and Multicast
- Local broadcast using internal audio files
- 8W (PoE)/15W(PoE+) built-in amplifier
- 2 control inputs and 1 control output
- HTTP commands (receive)
- Audio file storage (20 files, total 80MB, WAV/MP3)
- Playback programs (Repeat, Weekly Timer)
- PoE/PoE+ powered
| Power Source | PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3) |
| Power Consumption | 22 W (at PoE+ powered, rated output), 12.95 W (at PoE powered, rated output), 5 W (IEC62368-1) |
| Amplifier Rated Output | 15 W (at PoE+ powered), 8 W (at PoE powered) |
| Sensitivity | 112 dB (1 W, 1 m) (500 Hz - 2.5 kHz, peak level) |
| Maximum Sound Pressure Level | 124 dB (at PoE+ powered, 15 W, 1 m) (500 Hz - 2.5 kHz, peak level) 121 dB (at PoE powered, 8 W, 1 m) (500 Hz - 2.5 kHz, peak level) |
| Frequency Response | 280 Hz - 12.5 kHz |
| Audio Codec | PCMU (G.711u), PCMA (G.711a), G.722 |
| Broadcasting Mode | SIP Broadcasting Mode: PCMU/PCMA/G.722 Multicast Broadcasting Mode: PCMU/PCMA/G.722, Auto codec recognition, Max. 20 ports VMS Broadcasting Mode: ONVIF Audio Backchannel, PCMU Internal Message Broadcasting Mode Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function. |
| Internal Messages | Max. 20 messages (Max. recording capacity: 80 MB) Supported file formats WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo Repeat playback: Playcount(1-10 times), Duration (5-3600 sec) or Timer (from Start time to End time) Interval time: 0 - 60 sec, Delay time: 0 - 30 sec Trigger: Control Input or Remote API (HTTP) |
| Network I/F | 100BASE-TX, MDI/MDI-X, RJ-45 |
| Network Protocol | TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261) |
| Control Input | 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (3 pins) |
| Control Output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, removable terminal block (3 pins) |
| Indicator | LAN LINK/ACT (green), STATUS (orange) |
| Clock Accuracy | ±13 seconds per month |
| Time Adjustment | Manual time setting, Time adjustment by NTP server |
| Power Outage Protection Period | 24 hours (RTC time retention, at 40 ¡C (104 ¡F)) |
| Dust/Water Protection | IP66 |
| Operating Temperature | -30 ¡C to +55 ¡C (-22 ¡F to +131 ¡F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Horn flare and body: Aluminum, off-white (RAL 9010 equivalent), paint Reflector horn: ABS resin, off-white (RAL 9010 equivalent) Rear cover: PC resin, off-white (RAL 9010 equivalent), paint Bracket, screws and bolts: Stainless steel |
| Dimensions | 222 (W) x 211 (H) x 276 (D) mm (8.74" x 8.31" x 10.87") |
| Weight | 1.4 kg (3.09 lb ) |
| Accessory | Rear coverÉ1, Removable terminal plug (3 pins)É2 |
| Option | Speaker mount bracket: SP-131, SP-201, SP-301 Pole band: YS-60B |
