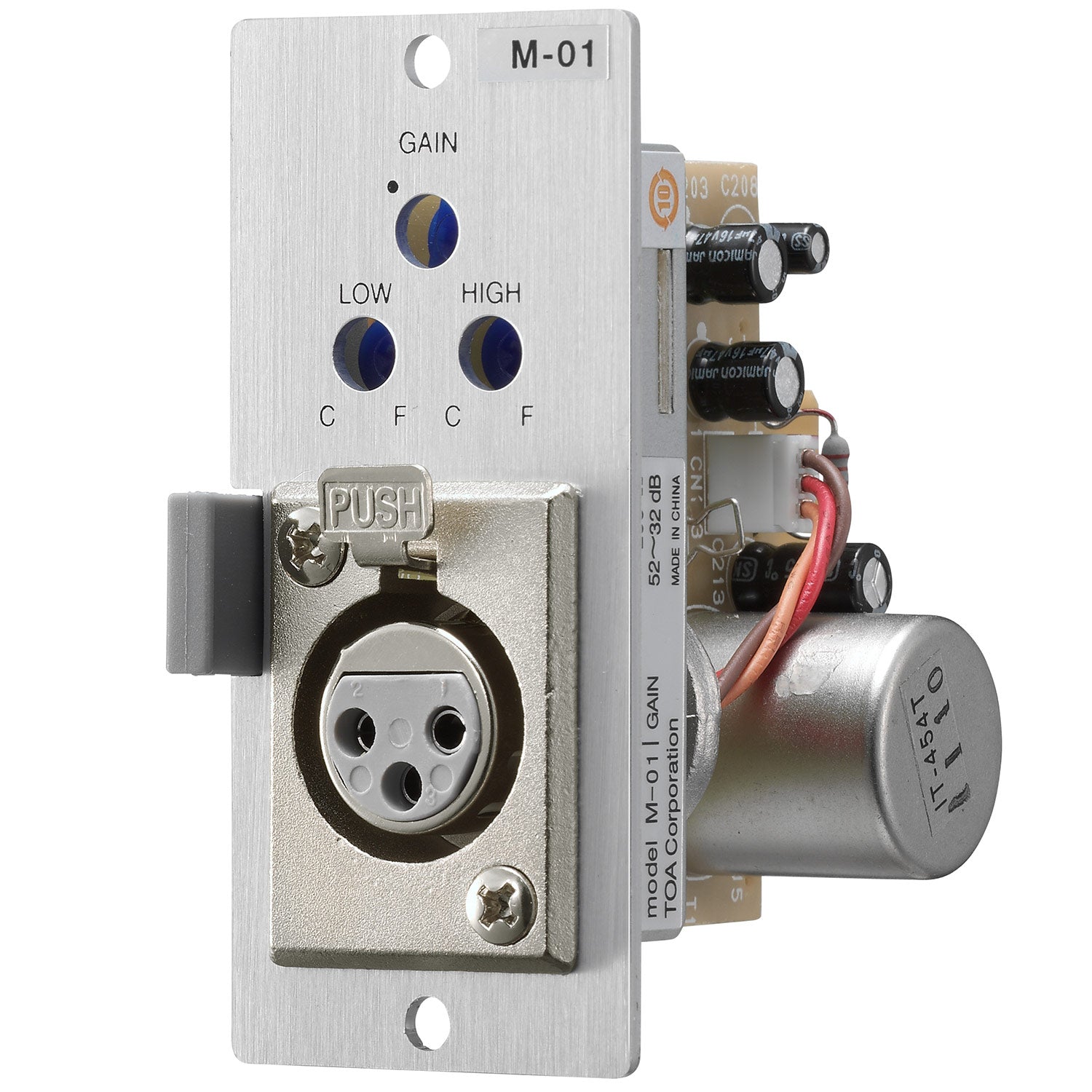

TOA M-01F Balanced Microphone Input Module 200 ohm Lo/Hi-Cut Filters Female XLR
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Contact us
Description
The microphone input module shall be balanced, 200 ohms with low/hi-cut filters and female XLR connector.
The microphone input module shall be TOA model M-01F.
For balanced, low impedance mics. Choose from four connector types: female XLR, male XLR, 1/4" phone jack or removable terminal block.
Features :
- Controls/Functions:
- Gain Control
- High and Low Cut Filters
- Phantom Power
| Performance Input | 600 tb |
| Input Sensitivity | -70 ~ -50 dBu |
| Gain (Adjustable) | 32 ~ 52 dB |
| Maximum Input | -14 dB |
| Signal to Noise (S/N) | -126 dBu (EIN 200 Ohm) |
| Physical Connector | M-01F: XLR-F, M-01M : XLR-M, M-01P: 1/4 Phone Jack, M-01S: Removable Terminal Block |
The microphone input module shall be balanced, 200 ohms with low/hi-cut filters and female XLR connector.
The microphone input module shall be TOA model M-01F.
For balanced, low impedance mics. Choose from four connector types: female XLR, male XLR, 1/4" phone jack or removable terminal block.
Features :
- Controls/Functions:
- Gain Control
- High and Low Cut Filters
- Phantom Power
| Performance Input | 600 tb |
| Input Sensitivity | -70 ~ -50 dBu |
| Gain (Adjustable) | 32 ~ 52 dB |
| Maximum Input | -14 dB |
| Signal to Noise (S/N) | -126 dBu (EIN 200 Ohm) |
| Physical Connector | M-01F: XLR-F, M-01M : XLR-M, M-01P: 1/4 Phone Jack, M-01S: Removable Terminal Block |
