TOA ML-11T - Microphone Input Module for 900 Series
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
TOA ML-11T - Microphone Input Module for 900 Series
Sale price$108.00
Regular price$134.00
Description

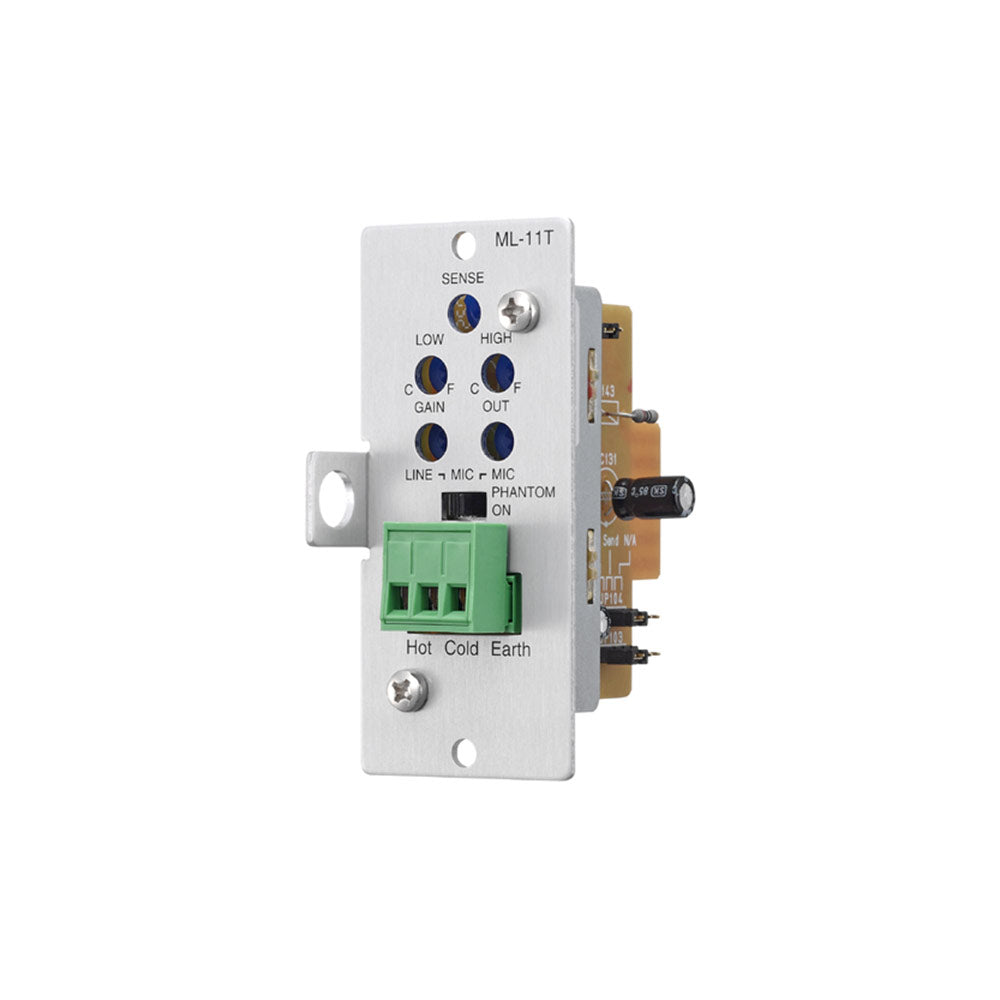

The ML-11T is a Microphone/Line input module with a mute send/receive designed for use with 900 Series amplifiers. Phantom power is provided for condenser microphone use.
| Power Supply | 24 V DC (supplied from the main frame) |
| Current Consumption | 25 mA |
| Input Sensitivity | -60/-10 dB* (changeable) |
| Input Impedance | 10 k½, balanced |
| Included Accessories | Removable terminal block (3P) É1, Module mounting screw É2 |
| Frequency Response | 20 Hz - 20 kHz ±1.0 dB |
| Distortion | 0.05 % (1 kHz) |
| Phantom Power | +22 V DC (active or disable selectable) |
| Connector | Removable terminal block (3P) |
| Dimensions | 35 (W) x 78 (H) x 88 (D) mm (1.38" x 3.07" x 3.46") |
| Weight | Max. 49 g (0.11 lb) |
The ML-11T is a Microphone/Line input module with a mute send/receive designed for use with 900 Series amplifiers. Phantom power is provided for condenser microphone use.
| Power Supply | 24 V DC (supplied from the main frame) |
| Current Consumption | 25 mA |
| Input Sensitivity | -60/-10 dB* (changeable) |
| Input Impedance | 10 k½, balanced |
| Included Accessories | Removable terminal block (3P) É1, Module mounting screw É2 |
| Frequency Response | 20 Hz - 20 kHz ±1.0 dB |
| Distortion | 0.05 % (1 kHz) |
| Phantom Power | +22 V DC (active or disable selectable) |
| Connector | Removable terminal block (3P) |
| Dimensions | 35 (W) x 78 (H) x 88 (D) mm (1.38" x 3.07" x 3.46") |
| Weight | Max. 49 g (0.11 lb) |
