TOA MP-032B Audio Monitor Panel
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
TOA MP-032B Audio Monitor Panel
Sale price$417.00
Regular price$514.00
Description

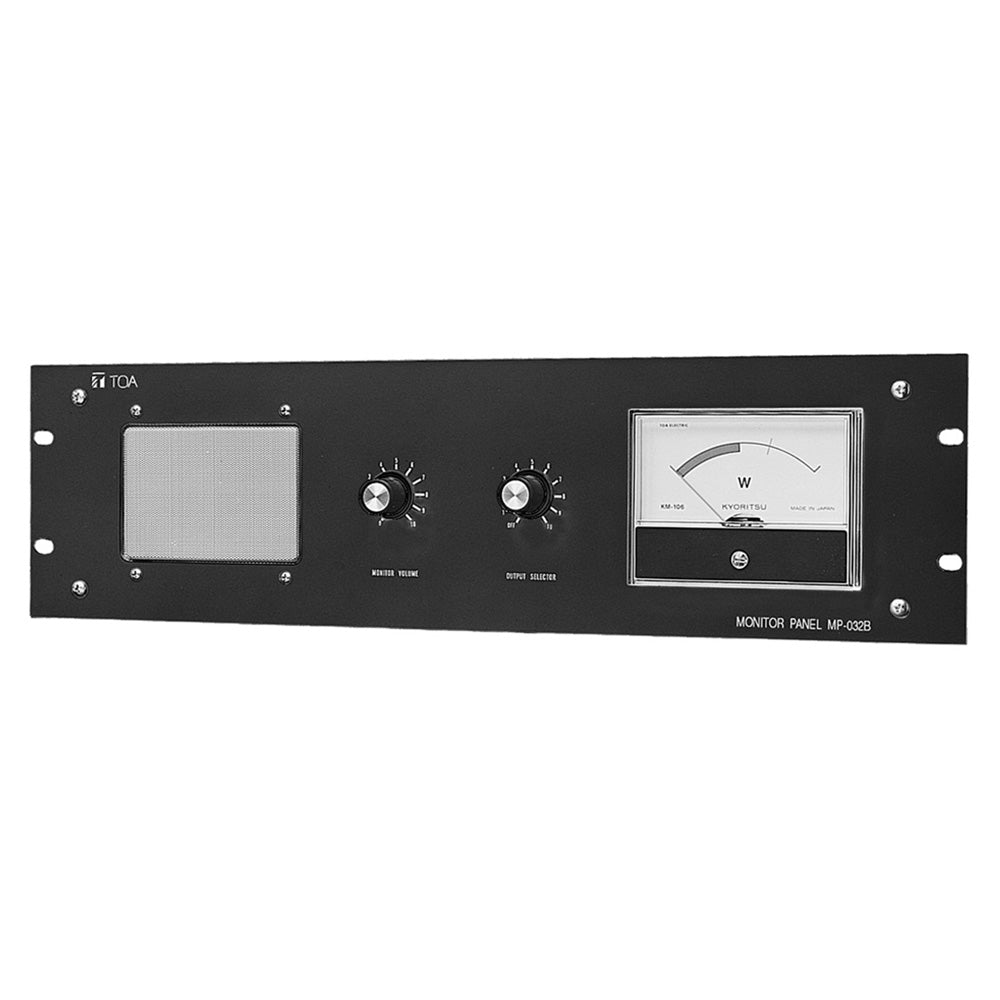

The MP-032B is a monitor panel that is designed to provide aural and visual monitoring for multi-channel sound and program systems.
Features:
- Ten input channels for monitoring high impedance speaker lines
- VU meter
- Internal speaker with selector switch for individual channel monitoring
- Built-in rack-mount brackets (3 RU)
- 5 year warranty
| Functions | Aural/visual monitoring (up to 10 power amplifiers) |
| Controls | Channel selector switch Monitor volume control Watt meter Line voltage selector switch |
| Speaker | Full-range 12 cm speaker |
| Input Lines | 25 V (625 ?), 50 V (2.5 k?), 70 V (5 k?), 100 V (10 k?) switchable |
| Terminals | M4 screw terminals, distance between barriers: 8.8 mm |
| Finish | Surface-treated steel plate, black |
| Dimensions | 483 (W) _ 133 (H) _ 87 (D) mm |
| Weight | 2.2 kg |
| Accessory | Rack mounting screw (with washer) ÉÉÉ 4 |
The MP-032B is a monitor panel that is designed to provide aural and visual monitoring for multi-channel sound and program systems.
Features:
- Ten input channels for monitoring high impedance speaker lines
- VU meter
- Internal speaker with selector switch for individual channel monitoring
- Built-in rack-mount brackets (3 RU)
- 5 year warranty
| Functions | Aural/visual monitoring (up to 10 power amplifiers) |
| Controls | Channel selector switch Monitor volume control Watt meter Line voltage selector switch |
| Speaker | Full-range 12 cm speaker |
| Input Lines | 25 V (625 ?), 50 V (2.5 k?), 70 V (5 k?), 100 V (10 k?) switchable |
| Terminals | M4 screw terminals, distance between barriers: 8.8 mm |
| Finish | Surface-treated steel plate, black |
| Dimensions | 483 (W) _ 133 (H) _ 87 (D) mm |
| Weight | 2.2 kg |
| Accessory | Rack mounting screw (with washer) ÉÉÉ 4 |
