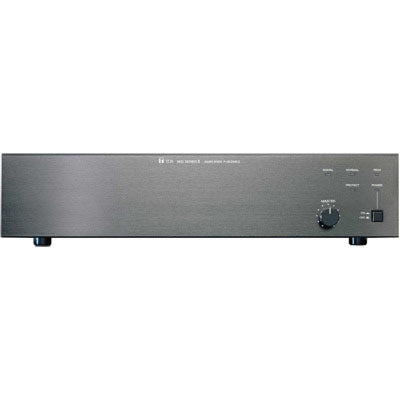

TOA P-912MK2 One-Channel 120 watt Single Module Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
TOA P-912MK2 One-Channel 120 watt Single Module Power Amplifier
Sale price$835.00
Regular price$1,031.00
Description
FEATURES:
- Modular design allows fast and easy custom configurations.Engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation.One Module Slot accepts TOA plug-in modules for unmatched flexibility.60, 120 or 240 Watts RMS Output Power.25 V, 70 V and 4/8 Ohm Speaker Outputs with screw terminal connector and protective cover plate.Protection Circuitry prevents potential damage from overload, short-circuit, DC offset or overheating.Front Panel Features:
- Master Volume Control.Normal, Peak, Power, Protect, and Signal LEDs provide instantly recognizable status indication.
- Rear Panel Features:
- Direct Input for connecting an external mixer or recording device.20 dB Input Gain Switch for high or low input levels.Low Cut Switch to limit low frequency response.
- Volume Control Security Cover included (1), model YA-920.Optional Rack-Mount Kits
- P-906MK2 / P-912MK2: MB-25B (2 RU)P-924MK2: MB-35B (3 RU)
- UL / CSA Listed.Five Year Warranty.
| Type | Power amplifier |
| Output Power | P-906MK2: 60 W RMS; P-912MK2: 120 W RMS P-924MK2: 240 W RMS |
| Power Bandwidth | (D) 20 - 20k Hz, 0.5% THD; (T) 50 - 20k Hz, 0.5% THD |
| Frequency Response | (D) 20 - 20k Hz, ±1 dB; (T) 20 - 15k Hz, ±1 dB (T) 20 - 20k Hz, +1 dB / -3 dB |
| Total Harmonic Distortion | 0.01% at 1k Hz, rated output |
| Inputs | 1 modular input port 1 direct input Use only one of direct input or modular input port. |
| Input Sensitivity / Impedance | Input port: 100 mV or 1000 mV (switchable)/10k Ω Direct input: 100 mV or 1000 mV (switchable)/10k Ω |
| Outputs (T)=Transformer, (D)=Direct | Main (T): 8 Ω, 25 V / 70 V, balanced Main (D): 4 Ω, unbalanced |
| Output Regulation (1k Hz) | (D): Less than 0.5 dB, no load to full load (T): Less than 1.0 dB, no load to full load |
| Dynamic Range (Band Pass: 20 - 20k Hz, with Tone Controls centered) | Input level switch in 0 dBV (1000 mV) position: 108 dB Input level switch in -20 dBV (100 mV) position: 90 dB |
| Indicators | Normal, Peak, Power, Protect, and Signal LEDs |
| Protection | P-906/912MK2: Self-protection, with internal AC fuse P-924MK2: Self-protection, with 2 AC fuses (1 internal) and 2 DC fuses. |
| Power Consumption | P-906MK2: 100 W; P-912MK2: 180 W; P-924MK2: 120V/3A |
| Temperature Range | 12¡ F to 140¡ F (-10¡ C to +60¡ C) |
| Color | Black |
| Dimensions (W x H x D) | P-906/912MK2: 16.5Ó x 3.9Ó x 14.1Ó (420 x 99.1 x 358 mm) P-924MK2: 16.5Ó x 6.0Ó x 13.2Ó (420 x 151.3 x 334.2 mm) |
| Weight (without modules) | P-906MK2: 20.1 lbs (9.1 kg); P-912MK2: 24.0 lbs (10.9 kg) P-924MK2: 43.0 lbs (19.5 kg) |
| Other Features | Output connects approx. 5 seconds after switching power on. |
FEATURES:
- Modular design allows fast and easy custom configurations.Engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation.One Module Slot accepts TOA plug-in modules for unmatched flexibility.60, 120 or 240 Watts RMS Output Power.25 V, 70 V and 4/8 Ohm Speaker Outputs with screw terminal connector and protective cover plate.Protection Circuitry prevents potential damage from overload, short-circuit, DC offset or overheating.Front Panel Features:
- Master Volume Control.Normal, Peak, Power, Protect, and Signal LEDs provide instantly recognizable status indication.
- Rear Panel Features:
- Direct Input for connecting an external mixer or recording device.20 dB Input Gain Switch for high or low input levels.Low Cut Switch to limit low frequency response.
- Volume Control Security Cover included (1), model YA-920.Optional Rack-Mount Kits
- P-906MK2 / P-912MK2: MB-25B (2 RU)P-924MK2: MB-35B (3 RU)
- UL / CSA Listed.Five Year Warranty.
| Type | Power amplifier |
| Output Power | P-906MK2: 60 W RMS; P-912MK2: 120 W RMS P-924MK2: 240 W RMS |
| Power Bandwidth | (D) 20 - 20k Hz, 0.5% THD; (T) 50 - 20k Hz, 0.5% THD |
| Frequency Response | (D) 20 - 20k Hz, ±1 dB; (T) 20 - 15k Hz, ±1 dB (T) 20 - 20k Hz, +1 dB / -3 dB |
| Total Harmonic Distortion | 0.01% at 1k Hz, rated output |
| Inputs | 1 modular input port 1 direct input Use only one of direct input or modular input port. |
| Input Sensitivity / Impedance | Input port: 100 mV or 1000 mV (switchable)/10k Ω Direct input: 100 mV or 1000 mV (switchable)/10k Ω |
| Outputs (T)=Transformer, (D)=Direct | Main (T): 8 Ω, 25 V / 70 V, balanced Main (D): 4 Ω, unbalanced |
| Output Regulation (1k Hz) | (D): Less than 0.5 dB, no load to full load (T): Less than 1.0 dB, no load to full load |
| Dynamic Range (Band Pass: 20 - 20k Hz, with Tone Controls centered) | Input level switch in 0 dBV (1000 mV) position: 108 dB Input level switch in -20 dBV (100 mV) position: 90 dB |
| Indicators | Normal, Peak, Power, Protect, and Signal LEDs |
| Protection | P-906/912MK2: Self-protection, with internal AC fuse P-924MK2: Self-protection, with 2 AC fuses (1 internal) and 2 DC fuses. |
| Power Consumption | P-906MK2: 100 W; P-912MK2: 180 W; P-924MK2: 120V/3A |
| Temperature Range | 12¡ F to 140¡ F (-10¡ C to +60¡ C) |
| Color | Black |
| Dimensions (W x H x D) | P-906/912MK2: 16.5Ó x 3.9Ó x 14.1Ó (420 x 99.1 x 358 mm) P-924MK2: 16.5Ó x 6.0Ó x 13.2Ó (420 x 151.3 x 334.2 mm) |
| Weight (without modules) | P-906MK2: 20.1 lbs (9.1 kg); P-912MK2: 24.0 lbs (10.9 kg) P-924MK2: 43.0 lbs (19.5 kg) |
| Other Features | Output connects approx. 5 seconds after switching power on. |
