TOA PM-660U Desktop Paging Microphone with Push to Talk button


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:TOA-PM660U

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

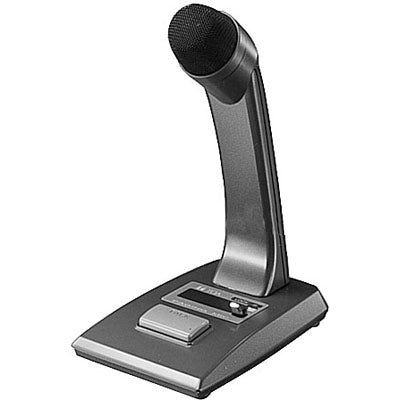

  • This is an elegantly styled, compact desk microphone for use in public address, paging and radio communication systems. Ideal applications include restaurants, offices, warehouses, transportation terminals, dispatch centers and entertainment facilities.

    Its smooth, natural response provides high quality voice reproduction and excellent articulation to enhance the overall performance of your system. Compact and lightweight, the PM-660U requires a minimum of desk or counter space and is easy to handle.FEATURES
    • Sleek, modern design fits today's high tech workstations.
    • Dynamic microphone element with a 600 ohm balanced output.
    • Prominent press-to-talk bar with convenient locking lever.
    • Auxiliary switch contact for mute or relay circuits.
    • Cardioid pattern with excellent ambient noise rejection.
    • Delivers a smooth and natural sound.
    • Four conductor attached cable.

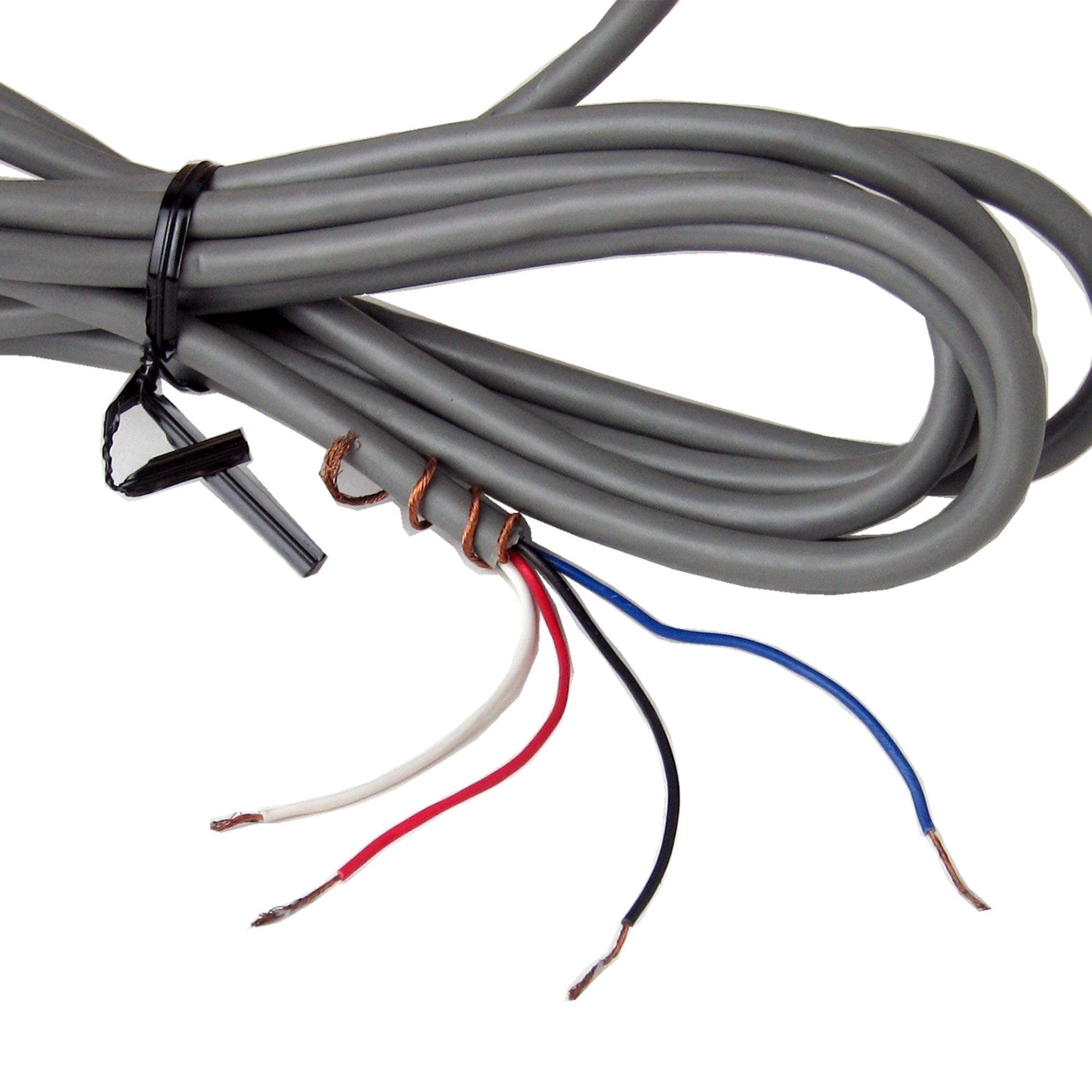

    To significantly reduce background noise and feedback, the PM-660U features a cardioid pick-up pattern that is uniform over the entire frequency range. The dynamic microphone element has a 600 ohm balanced output and the microphone is supplied with an attached 8.2', four-conductor cable with stripped wire ends. Two conductors are shielded and are dedicated for the microphone signal. The other two unshielded conductors connect to an auxiliary, normally-open switch contact, used to activate external muting, priority or relay control circuits. The auxiliary switch contact is closed by using the push-to-talk bar, which also turns on the microphone by opening a second set of contacts that normally short the mic element. A locking lever is provided to keep the push-to-talk bar in the "on" position when the microphone must be kept open for an extended period.

    A wire mesh grille protects the mic element and incorporates an internal wind screen to reduce popping noises from speech. Ideal for desktop or shelf mounting, the integral microphone stand/base is fitted with four, rubber isolated feet to reduce mechanical noise pick-up. Constructed of high impact ABS resin, the microphone is finished in a neutral dark gray with a prominent, orange push-to-talk button.

    DirectivityUnidirectional, cardioid pattern
    Sensitivity (1 kHz) -58 dB*
    Frequency Response100Hz-10kHz
    Microphone Element Dynamic (moving coil)
    Impedance 600 ohm, balanced
    Push-To-Talk Bar:
    MicrophoneNormally closed
    (mic element shorted)
    Auxiliary Switch ContactNormally open
    (dry contact)
    Locking LeverLocks push-to-talk bar
    in “on” position
    Cable LengthAttached 8.2’ with
    stripped, tinned wire ends
    Cable Type2-C shielded (audio)
    2-C (aux switch)
    F i n i s h :
    Microphone HeadZinc plated steel mesh,
    gray baked paint
    Stand / BaseGray ABS resin
    Dimensions W” x H” x D”)3.9 x 8.5 x 5.9
