TOA SC-615T 15 Watt 25/70.7V Paging Horn Speaker with Mounting Bracket
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description

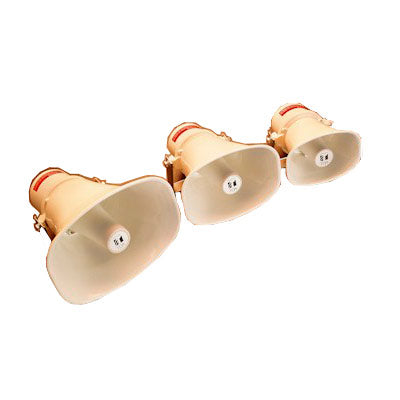

TOA SC SERIES PAGING HORN SPEAKERS provide intelligible voice paging and tone signaling for indoor and outdoor sound system applications. Fully weather-resistant for reliable operation in demanding environmental conditions, SC Series models are available with a choice of power ratings from 10W to 50W. High impedance models include SC-610T (10W), SC-615T (15W) and SC-630T (30W), each with a built-in 25 V / 70.7 V transformer with external screwdriver-adjustable power taps. Low impedance models include SC-610 (10W, 8 ohm), SC-615 (15W, 8 ohm), SC-630 (30W, 8 ohm) and SC-651 (50W, 16 ohm).
Features:- Paging Horn Speakers: for voice paging and tone signaling distribution.
- Weather-Resistant:to withstand demanding environmental conditions.
- Double Re-Entrant Horn with Compression Driver
- Controlled Dispersion
- High Sensitivity:up to 113 dB (1 W/1 m).
- Usable as a Microphone:for intercom talk-back applications.
- Lightweight, Sealed, Aluminum Enclosure:prevents moisture damage.
- Cable Strain-Relief
- IEC IP-65 Standards Compliant:for dust and moisture-resistance.
- Wide Temperature Range:-4° F to 131° F
- Phenolic Loudspeaker Diaphragm:prevents deformation from heat and moisture.
| Enclosure Type | Double Re-Entrant Horn |
| Speaker Component | Compression Driver |
| Power Handling | 15 W |
| Transformer Taps /Rated Impedance | |
| 70.7 V | 15 W (330 Ohms); 7.5 W (650 Ohms); 3.8 W (1.3 k Ohms) |
| 25 V | 15 W (42 Ohms); 7.5 W (83 Ohms); 1.9 W (330 Ohms); 1 W (650 Ohms); 0.5 W (1.3 k Ohms) |
| Sensitivity (Sound Pressure Level) (1 W / 1 m, 500 Hz to 2,500 Hz) | 112 dB SPL |
| Frequency Response | 280 Hz - 12.5 kHz |
| Dispersion(-6 dB, 2 kHz) | 70¡ H x 90¡ V |
| Sensitivity as Microphone(0 dB = 1 mW /10 dynes / cm2 ) | -22 dB at 1 kHz |
| IEC IP Code | IP-65 |
| Temperature Range | -4¡ F to 131¡ F (-20¡ C to +55¡ C) |
| Dimensions(W x H x D) | 8.74 x 7.04 x 9.21(222 mm x 179 mm x 234 mm) |
| Weight | 2.21 lbs. (1.0 kg.) |
TOA SC SERIES PAGING HORN SPEAKERS provide intelligible voice paging and tone signaling for indoor and outdoor sound system applications. Fully weather-resistant for reliable operation in demanding environmental conditions, SC Series models are available with a choice of power ratings from 10W to 50W. High impedance models include SC-610T (10W), SC-615T (15W) and SC-630T (30W), each with a built-in 25 V / 70.7 V transformer with external screwdriver-adjustable power taps. Low impedance models include SC-610 (10W, 8 ohm), SC-615 (15W, 8 ohm), SC-630 (30W, 8 ohm) and SC-651 (50W, 16 ohm).
Features:- Paging Horn Speakers: for voice paging and tone signaling distribution.
- Weather-Resistant:to withstand demanding environmental conditions.
- Double Re-Entrant Horn with Compression Driver
- Controlled Dispersion
- High Sensitivity:up to 113 dB (1 W/1 m).
- Usable as a Microphone:for intercom talk-back applications.
- Lightweight, Sealed, Aluminum Enclosure:prevents moisture damage.
- Cable Strain-Relief
- IEC IP-65 Standards Compliant:for dust and moisture-resistance.
- Wide Temperature Range:-4° F to 131° F
- Phenolic Loudspeaker Diaphragm:prevents deformation from heat and moisture.
| Enclosure Type | Double Re-Entrant Horn |
| Speaker Component | Compression Driver |
| Power Handling | 15 W |
| Transformer Taps /Rated Impedance | |
| 70.7 V | 15 W (330 Ohms); 7.5 W (650 Ohms); 3.8 W (1.3 k Ohms) |
| 25 V | 15 W (42 Ohms); 7.5 W (83 Ohms); 1.9 W (330 Ohms); 1 W (650 Ohms); 0.5 W (1.3 k Ohms) |
| Sensitivity (Sound Pressure Level) (1 W / 1 m, 500 Hz to 2,500 Hz) | 112 dB SPL |
| Frequency Response | 280 Hz - 12.5 kHz |
| Dispersion(-6 dB, 2 kHz) | 70¡ H x 90¡ V |
| Sensitivity as Microphone(0 dB = 1 mW /10 dynes / cm2 ) | -22 dB at 1 kHz |
| IEC IP Code | IP-65 |
| Temperature Range | -4¡ F to 131¡ F (-20¡ C to +55¡ C) |
| Dimensions(W x H x D) | 8.74 x 7.04 x 9.21(222 mm x 179 mm x 234 mm) |
| Weight | 2.21 lbs. (1.0 kg.) |
