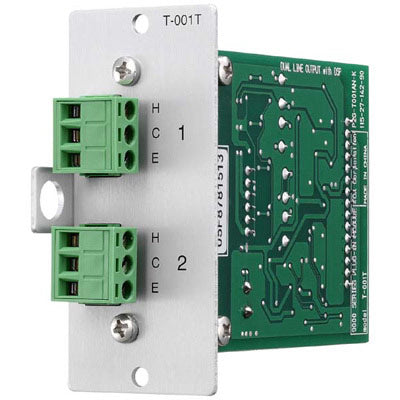

TOA T-001T Dual Line Output Module with DSP - Terminal Block
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description
This is a dual line output module for use with 9000 series mixer/amplifiers. It offers two balanced 3-pin removable terminal block connectors for connection to a system. Digital signal processing includes 10-band parametric EQ, controls for bass, treble, and loudness, high and low pass filters, a compressor, and TOA speaker EQ presets. You can install up to three T-001T units in a 9000 series chassis.
Features- Two Balanced Line OutputsDigital Signal Processing10-Band Parametric EQBass / TrebleLoudnessHigh and Low Pass FiltersCompressorTOA speaker EQ presets Removable Terminal BlockMaximum three per chassis
| Power | +24VDC, -24VDC, +6VDC |
| Current Consumption | 35mA @ +24VDC 35mA @ -24VDC 60mA @ +6VDC |
| Output | 2 x Balanced 3-Pin Removable Terminal Blocks, 600 ohms |
| Frequency Response | 20Hz - 20kHz |
| THD + N | 0.005% |
| Signal to Noise Ratio | Greater than 73dB |
| Residual Noise | Less than -91dB |
| Crosstalk | Greater than 87dB |
| D/A Converter | 24-bit |
| Sampling Frequency | 48kHz |
| Tone Control | ±12dB Bass and Treble |
| Parametric Equalizer | 10 Bands, 20Hz - 20kHz, 31 Steps, ±12dB Variable Range |
| Speaker Equalizer | 15 (TOA Speakers Only) |
| Filters | High-Pass: -12db/Oct, 20-400Hz Variable Frequency Range, 14 Steps Low-Pass: -12dB/Oct, 4-20kHz Variable Frequency Range, 8 Steps |
| Compressor | Depth: 1-5 |
| Delay | 0-40ms |
| Operating Temperature | -10 to +40¡C |
| Dimensions (WxHxD) | 1.4 x 3.1 x 3.6 (35 x 78 x 92mm) |
This is a dual line output module for use with 9000 series mixer/amplifiers. It offers two balanced 3-pin removable terminal block connectors for connection to a system. Digital signal processing includes 10-band parametric EQ, controls for bass, treble, and loudness, high and low pass filters, a compressor, and TOA speaker EQ presets. You can install up to three T-001T units in a 9000 series chassis.
Features- Two Balanced Line OutputsDigital Signal Processing10-Band Parametric EQBass / TrebleLoudnessHigh and Low Pass FiltersCompressorTOA speaker EQ presets Removable Terminal BlockMaximum three per chassis
| Power | +24VDC, -24VDC, +6VDC |
| Current Consumption | 35mA @ +24VDC 35mA @ -24VDC 60mA @ +6VDC |
| Output | 2 x Balanced 3-Pin Removable Terminal Blocks, 600 ohms |
| Frequency Response | 20Hz - 20kHz |
| THD + N | 0.005% |
| Signal to Noise Ratio | Greater than 73dB |
| Residual Noise | Less than -91dB |
| Crosstalk | Greater than 87dB |
| D/A Converter | 24-bit |
| Sampling Frequency | 48kHz |
| Tone Control | ±12dB Bass and Treble |
| Parametric Equalizer | 10 Bands, 20Hz - 20kHz, 31 Steps, ±12dB Variable Range |
| Speaker Equalizer | 15 (TOA Speakers Only) |
| Filters | High-Pass: -12db/Oct, 20-400Hz Variable Frequency Range, 14 Steps Low-Pass: -12dB/Oct, 4-20kHz Variable Frequency Range, 8 Steps |
| Compressor | Depth: 1-5 |
| Delay | 0-40ms |
| Operating Temperature | -10 to +40¡C |
| Dimensions (WxHxD) | 1.4 x 3.1 x 3.6 (35 x 78 x 92mm) |
