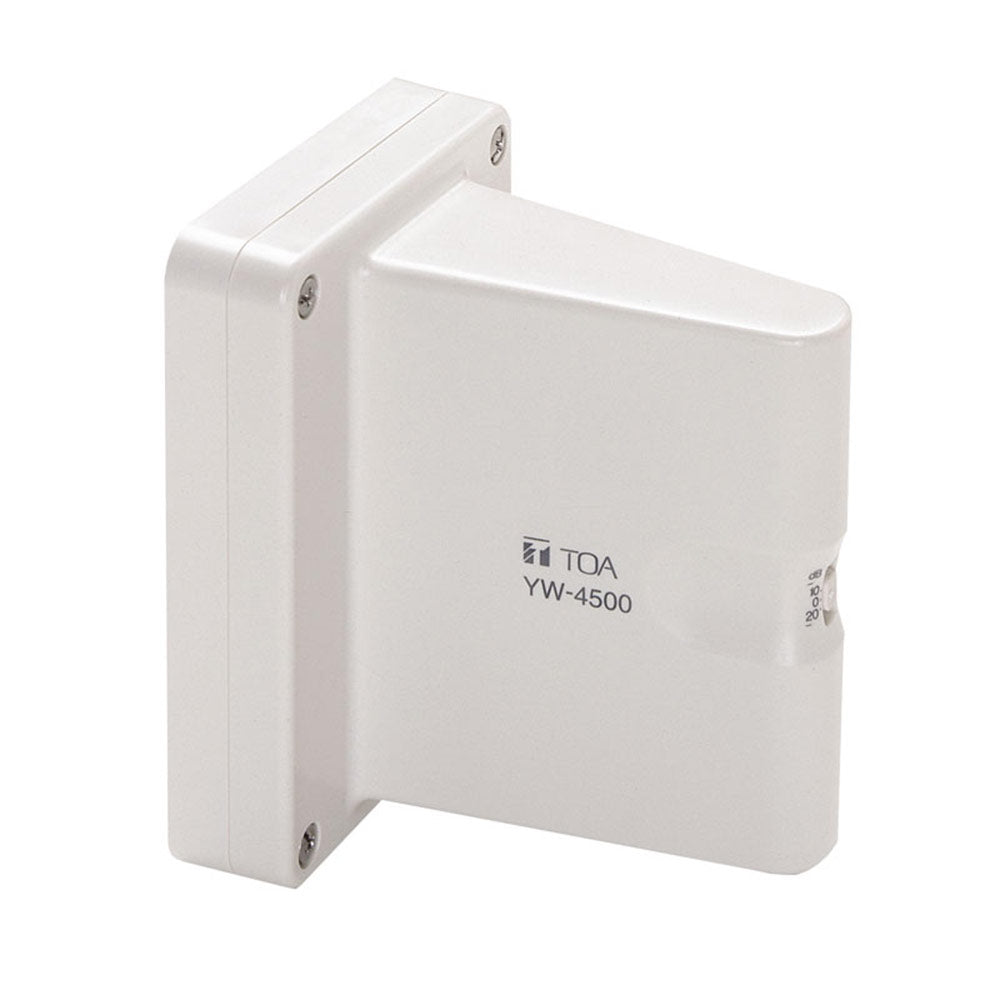

TOA YW-4500 - Remote Antenna for WT-4800 Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The wireless antenna YW-4500 has been designed for UHF band wireless system. Cable loss can be compensated for by a built-in RF signal booster. The YW-4500 in a dipole antenna designed to be installed in doors. Use the coaxial cable with 75Ω impedance.
Features:
- Compatible with frequency bands H01, RH1 and H2 only
- Revised Frequency Specification 630 - 880 MHz. No modification or update is required.
Power Source |
7 - 12 V DC (supplied from amplifier or tuner) |
| Current Consumption | 15 mA or less |
| Receiving Frequency | 550 - 932 MHz, UHF |
| Dipole ratio Relative Gain | 8 dB or more (780 MHz) |
| V.S.W.R | 3.0 or less |
| Output Impedance | 75 ½ |
| Mounting Hole Pitch | 83.5 mm (dimensions for wiring box) |
| Operating Temperature | -10¡C to +50¡C |
| Finish | AES resin, off-white |
| Dimensions | 105 (W) _ 140 (H) _ 126 (D) mm (4.13" x 5.51" x 4.96") |
| Weight | 270 g (0.6 lbs) |
| Accessory | M3.5 screw for wiring box x2 Tapping screw (M4) for wooden wall x2, RG-6/U or RG-11/U sleeve x1 |
The wireless antenna YW-4500 has been designed for UHF band wireless system. Cable loss can be compensated for by a built-in RF signal booster. The YW-4500 in a dipole antenna designed to be installed in doors. Use the coaxial cable with 75Ω impedance.
Features:
- Compatible with frequency bands H01, RH1 and H2 only
- Revised Frequency Specification 630 - 880 MHz. No modification or update is required.
Power Source |
7 - 12 V DC (supplied from amplifier or tuner) |
| Current Consumption | 15 mA or less |
| Receiving Frequency | 550 - 932 MHz, UHF |
| Dipole ratio Relative Gain | 8 dB or more (780 MHz) |
| V.S.W.R | 3.0 or less |
| Output Impedance | 75 ½ |
| Mounting Hole Pitch | 83.5 mm (dimensions for wiring box) |
| Operating Temperature | -10¡C to +50¡C |
| Finish | AES resin, off-white |
| Dimensions | 105 (W) _ 140 (H) _ 126 (D) mm (4.13" x 5.51" x 4.96") |
| Weight | 270 g (0.6 lbs) |
| Accessory | M3.5 screw for wiring box x2 Tapping screw (M4) for wooden wall x2, RG-6/U or RG-11/U sleeve x1 |
