TOA ZM-104A Portable Impedance Meter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

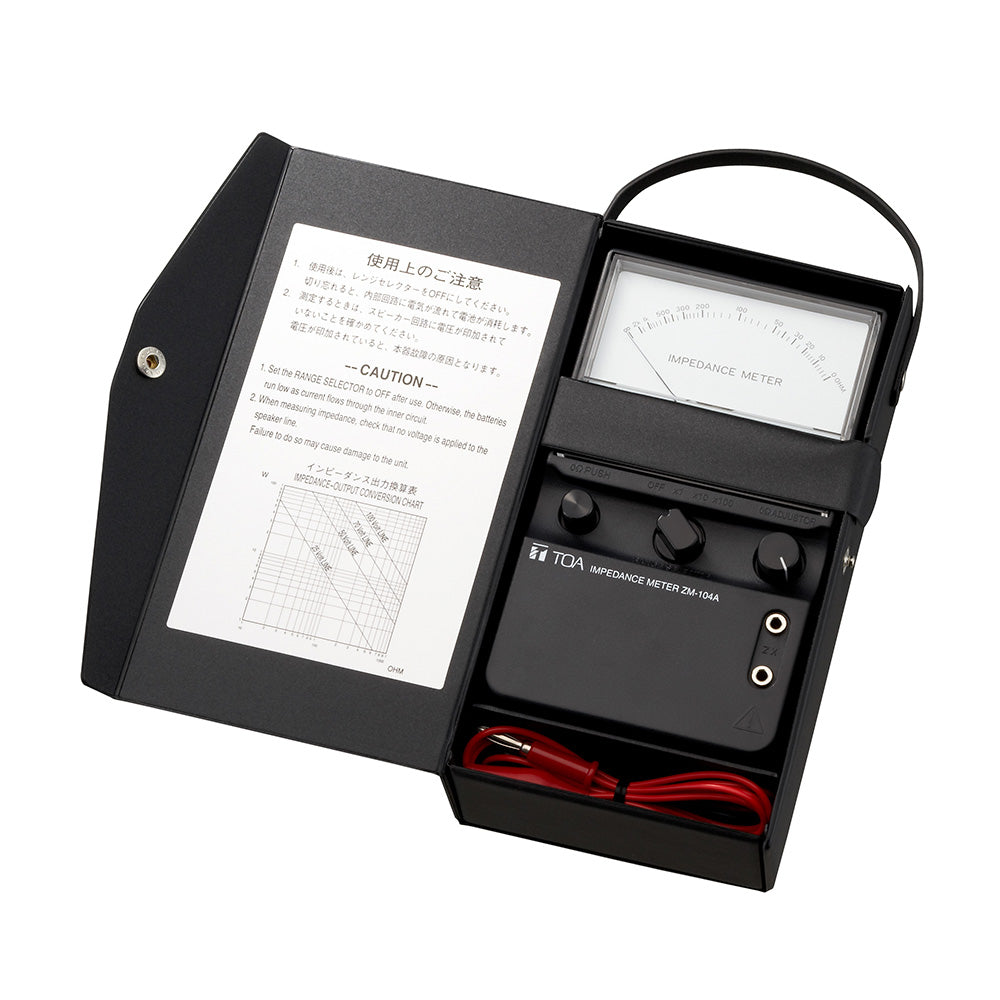

The TOA Impedance Meter, ZM-104, has been designed to measure impedances in the speaker lines in sound systems. It is fully portable and is operated from internal batteries. This handy meter provides accurate direct readings in the manner of a circuit meter, simply by disconnecting the speaker line from the amplifier and connecting it to the measuring leads.
The range selector switch allows selection of three ranges, from five to one hundred thousand W. Each time the range selector switch is transferred, zero W adjustment is necessary before operation.
Its accuracy is less than plus or minus ten percent on all ranges. The ZM-104 requires one battery change only after more than 30 hours of continuous use. The ZM-104 is supplied with a convenient Impedance Output Chart. The entire unit is sturdy, light and easy to carry. It weighs a mere 2 pounds.
Features:
- Measures impedance of speaker lines up to 100k ohm
- Batteries: four (AA)Zero adjustment for accuracy on all ranges
- Easy to read meter calibrates directly in ohms
- Includes carrying case, test leads and impedance to power reference chart
- Five year warranty
- Fully portable with easy operation
- Wide coverage: 5 - 100,000 W
- Reliable, compact and lightweight design
| Power Source | R6 _ 4 (1.5 V DC _ 4) |
| Current Consumption | 39 mA |
| Reading | Direct reading meter, unit: ½ |
| Measurement Range | _ 1 range: 5 ½ - 1 k½ _ 10 range: 50 ½ - 10 k½ _ 100 range: 500 ½ - 100 k½ |
| Oscillation Frequency | 1 kHz, ±10 % |
| Battery Life When Continuously Used | _ 1 range: 30 h _ 10 range and _ 100 range: 60 h |
| Operating Temperature | -5 _ to +40 _ (23 _F to 104 _F) |
| Dimensions | 122 (W) _ 222 (H) _ 70 (D) mm (4.80" _ 8.74" _ 2.76") (carrying case) 110 (W) _ 180 (H) _ 58 (D) mm (4.33" _ 7.09" _ 2.28") (unit only) |
| Finish | ABS resin, black |
| Weight | 730 g (1.61 lb) (including carring case, without batteries) |
| Accessory | Test leads É1 set |
| Measurement Category | CAT I |
The TOA Impedance Meter, ZM-104, has been designed to measure impedances in the speaker lines in sound systems. It is fully portable and is operated from internal batteries. This handy meter provides accurate direct readings in the manner of a circuit meter, simply by disconnecting the speaker line from the amplifier and connecting it to the measuring leads.
The range selector switch allows selection of three ranges, from five to one hundred thousand W. Each time the range selector switch is transferred, zero W adjustment is necessary before operation.
Its accuracy is less than plus or minus ten percent on all ranges. The ZM-104 requires one battery change only after more than 30 hours of continuous use. The ZM-104 is supplied with a convenient Impedance Output Chart. The entire unit is sturdy, light and easy to carry. It weighs a mere 2 pounds.
Features:
- Measures impedance of speaker lines up to 100k ohm
- Batteries: four (AA)Zero adjustment for accuracy on all ranges
- Easy to read meter calibrates directly in ohms
- Includes carrying case, test leads and impedance to power reference chart
- Five year warranty
- Fully portable with easy operation
- Wide coverage: 5 - 100,000 W
- Reliable, compact and lightweight design
| Power Source | R6 _ 4 (1.5 V DC _ 4) |
| Current Consumption | 39 mA |
| Reading | Direct reading meter, unit: ½ |
| Measurement Range | _ 1 range: 5 ½ - 1 k½ _ 10 range: 50 ½ - 10 k½ _ 100 range: 500 ½ - 100 k½ |
| Oscillation Frequency | 1 kHz, ±10 % |
| Battery Life When Continuously Used | _ 1 range: 30 h _ 10 range and _ 100 range: 60 h |
| Operating Temperature | -5 _ to +40 _ (23 _F to 104 _F) |
| Dimensions | 122 (W) _ 222 (H) _ 70 (D) mm (4.80" _ 8.74" _ 2.76") (carrying case) 110 (W) _ 180 (H) _ 58 (D) mm (4.33" _ 7.09" _ 2.28") (unit only) |
| Finish | ABS resin, black |
| Weight | 730 g (1.61 lb) (including carring case, without batteries) |
| Accessory | Test leads É1 set |
| Measurement Category | CAT I |
