Triad-Orbit Precision SM-FP - Mounting Plate Adapter for Focal Monitors

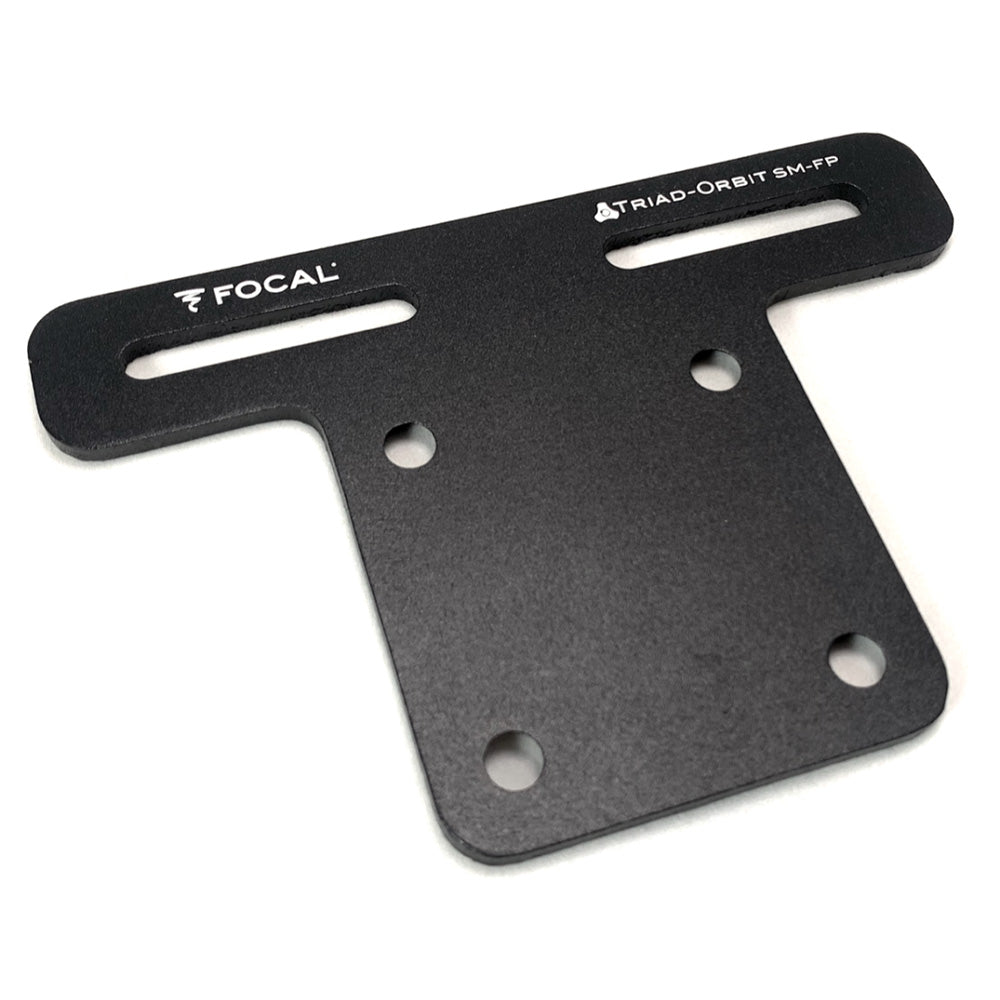

The SM-FP Focal speaker plate is "T" shaped to allow the SM-SW1 to avoid the speaker's I/O, switches and knobs. It has 2, slots for Focal two hole speakers that range from 35mm to 105mm. It also has 4, SM-SW1 M8 holes. This allows both vertical and horizontal orientation when attaching to the SM-SW1 swivel.

The SM-FP plate works with the following models that are currently in production: Alpha 50 Evo, Alpha 65 Evo, Shape 40, Shape 50, Shape 65, Shape Twin.

Compatible Mounts:

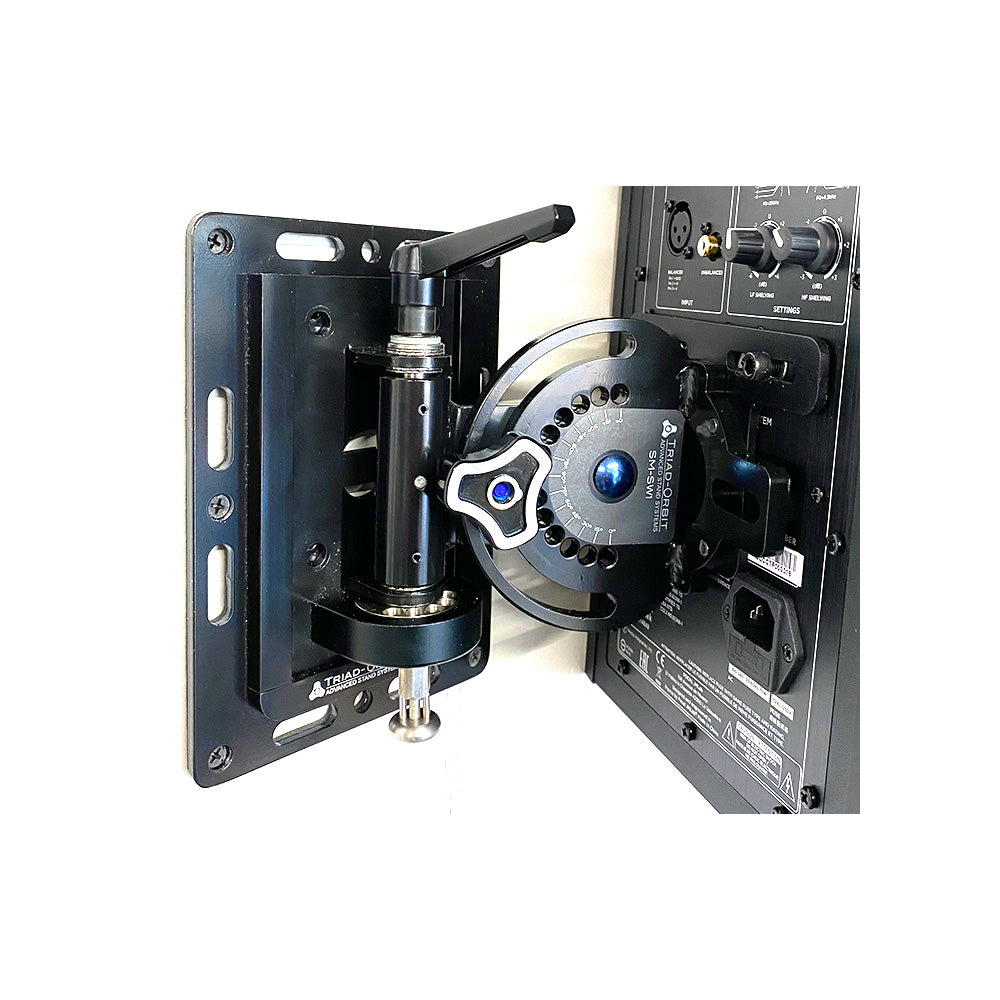

• SM-WM1 wall/ceiling mount houses the SM-SW1 swivel. The SM-SW1 slides into the SM-WM1 mount and secures by 4 hex screws. This allows the speaker to be attached to the swivel first and then sliding the assembly in the SM-WM1 mounting plate.
• SM-SW1 swivel can accommodate the various speaker mounting plates or can connect directly to speakers that have a dual hole pattern (50mm-80mm). SW-1 has spring pins in 15 degree increments as well as secondary tension locks in both tilt and pan axis.
