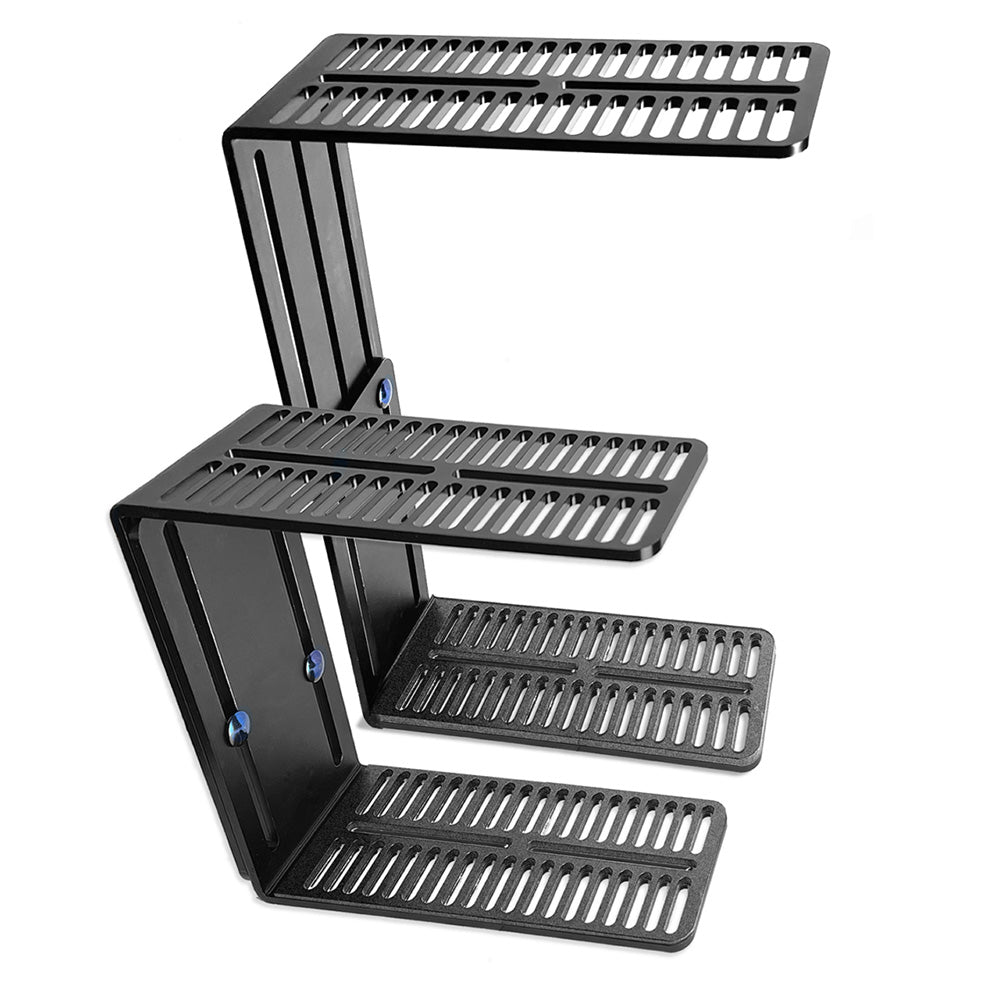

Triad-Orbit Precision SM-UB1 - Universal U-Bracket for Precision Speaker Mounts

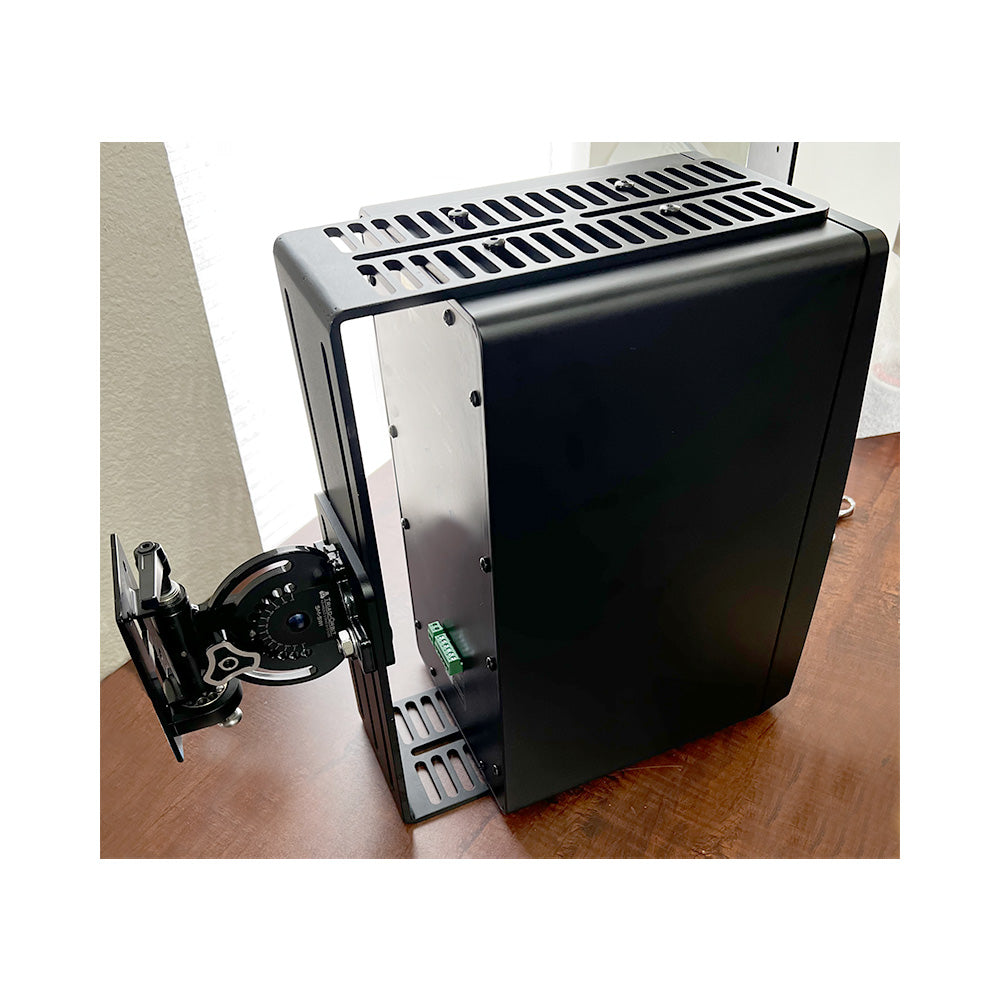

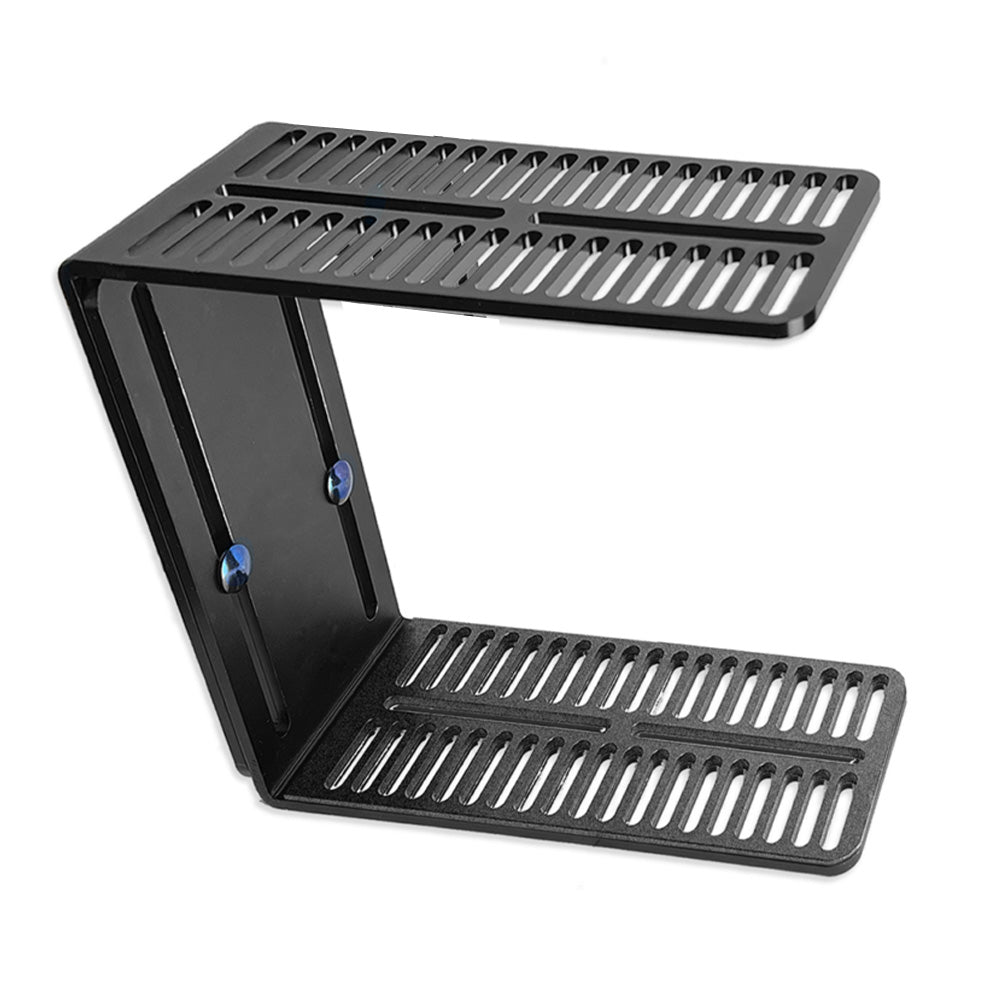

The SM-UB1 Universal Mounting Bracket is designed to fit on a Triad-Orbit SM-WM1 or SM-SW1 mount. Slider range ID 24.2cm to 44.7cm The SM-UB1 is designed to fit as many bracket mounting ready speakers as possible. The center slots allow for "single center hole" speaker mount- ing points, such as: PMC 6, Neumann KH 310, DynAudio Core 7, 47, 59 and more.The side slots are placed every 5mm. And they are 44mm wide on either side of the center slots thus making it fit 2 to 4 bracket mounting speakers with either 4 or 2 of the holes. EVA foam is added to the sides to protect the speakers and prevent and vibration.

Priced and sold as each.

Compatible Speaker Mounts:

• SM-WM1 wall/ceiling mount houses the SM-SW1 swivel. The SM-SW1 slides into the SM-WM1 mount and secures by 4 hex screws. This allows the speaker to be attached to the swivel first and then sliding the assembly in the SM-WM1 mounting plate.
• SM-SW1 swivel can accommodate the various speaker mounting plates or can connect directly to speakers that have a dual hole pattern (50mm-80mm). SW-1 has spring pins in 15 degree increments as well as secondary tension locks in both tilt and pan axis.
