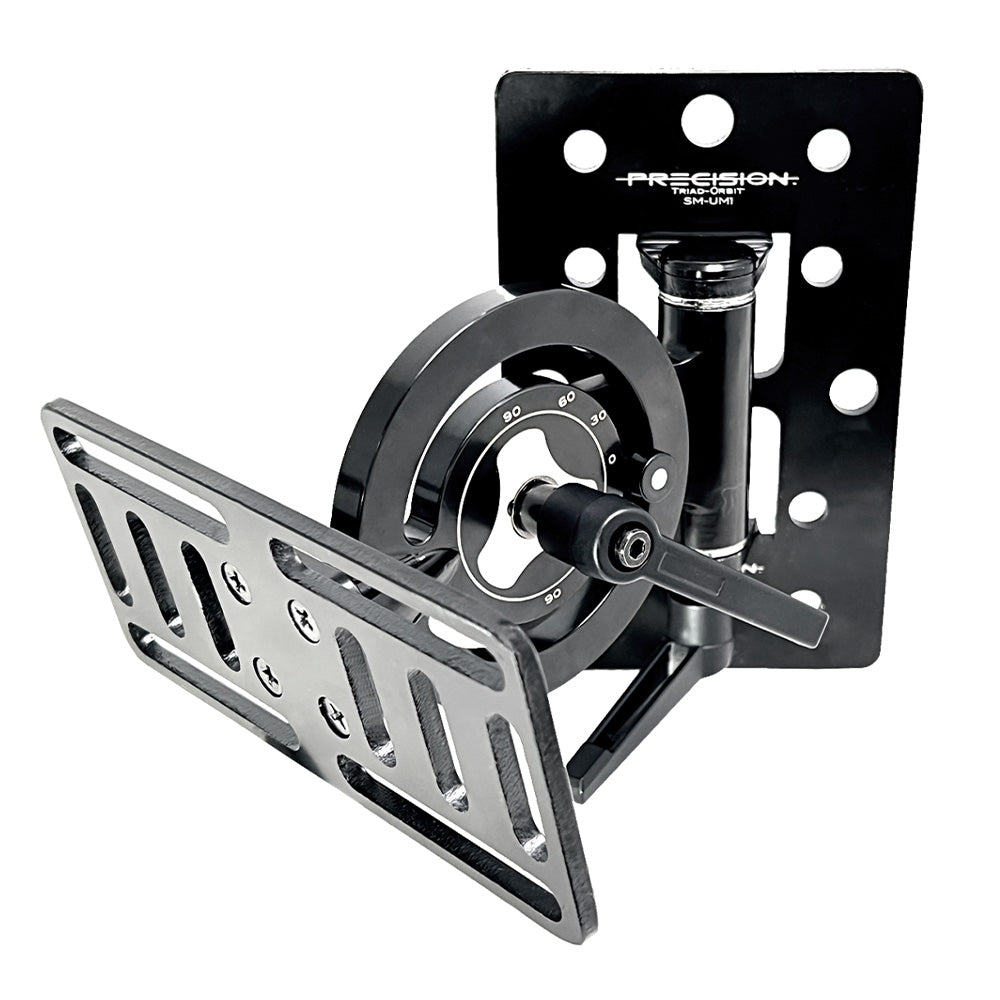

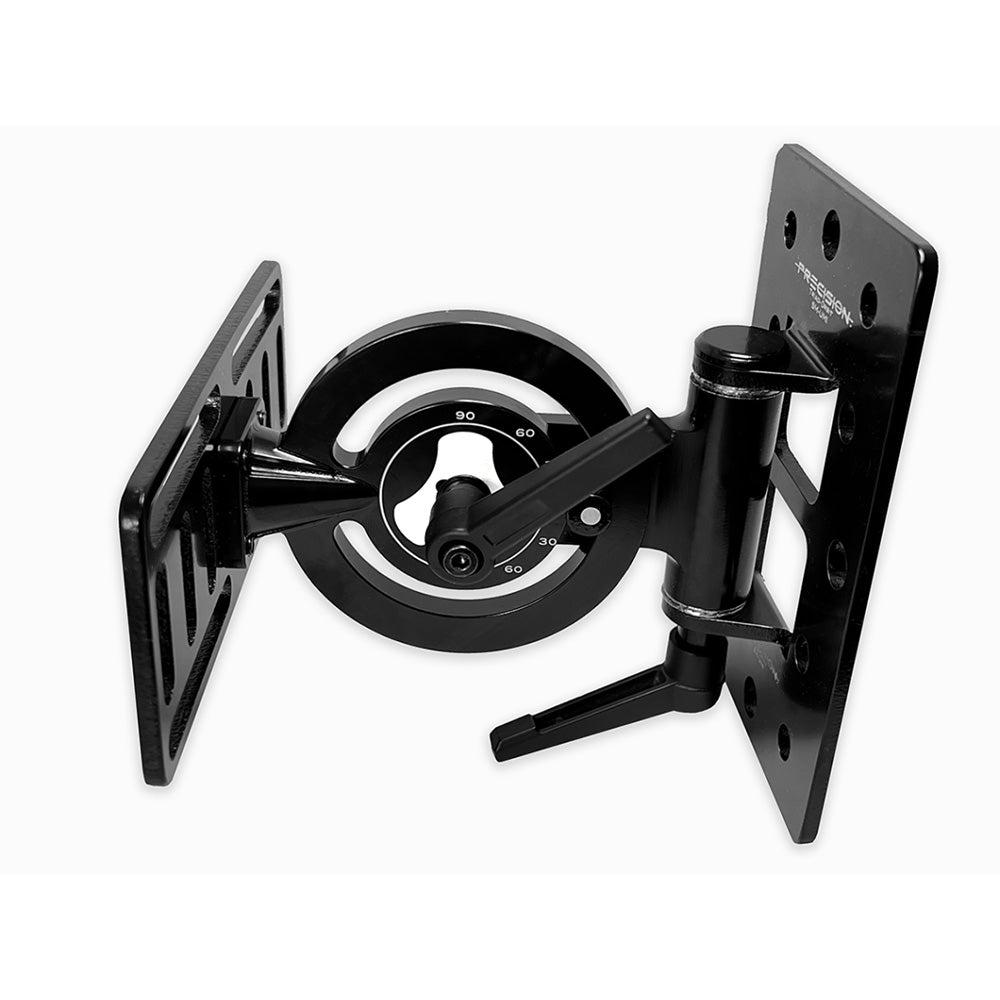

Triad-Orbit Precision SM-UM1 - Swivel Speaker Mount

The Precision SM-UM1 is designed to accommodate a smaller, lighter range of speakers than the larger SM-1. As Immersive sound grows, smaller Atmos mix rooms are becoming more common, thus, the SPL levels are lower at a closer proximity and larger format studio monitors are less necessary. UM1 does not use the pin locking system that SM-1 boasts, yet the powerful tilt function has built-in locking teeth. The pan knob has adequate strength to hold the pan adjustment in place. The universal mount pattern of UM1 allows it to adapt to virtually any 2-hole speaker pattern, regardless of manufacturer, up to 26 lbs. The back plate of UM1 has been designed to slide into the WM-1 wall mount for ease of installation, if desired.

The SM-UM1is 130mm- speaker mounting holes to wall/wall plate.

Simple Setup:

1 - SM-UM1 Speaker Mount
The UM1 either slides into the WM1 Wall Mount or attaches directly to the wall.

2 - Native Integration + Adapters
Native integration or adapter plates and brackets connect most popular speakers.

3 - SM-WM1 Wall or Ceiling Mount
Completely optional with the UM1 system, but makes install a breeze.

Unparalleled Flexibility.
The UM1's tilt adjustment is locked in place with an ultra-strong Hirth joint. Pan adjustment is friction-locked. The front mounting plate is rotatable in 90-degree increments.

Trademark T-O Adaptability
Triad-Orbit has long been known in pro audio for its thoughtful design comprised of modular components. This skill is brought to Precision through a collection of adapters for speakers, drop-pipe, VESA mounts, and more.
