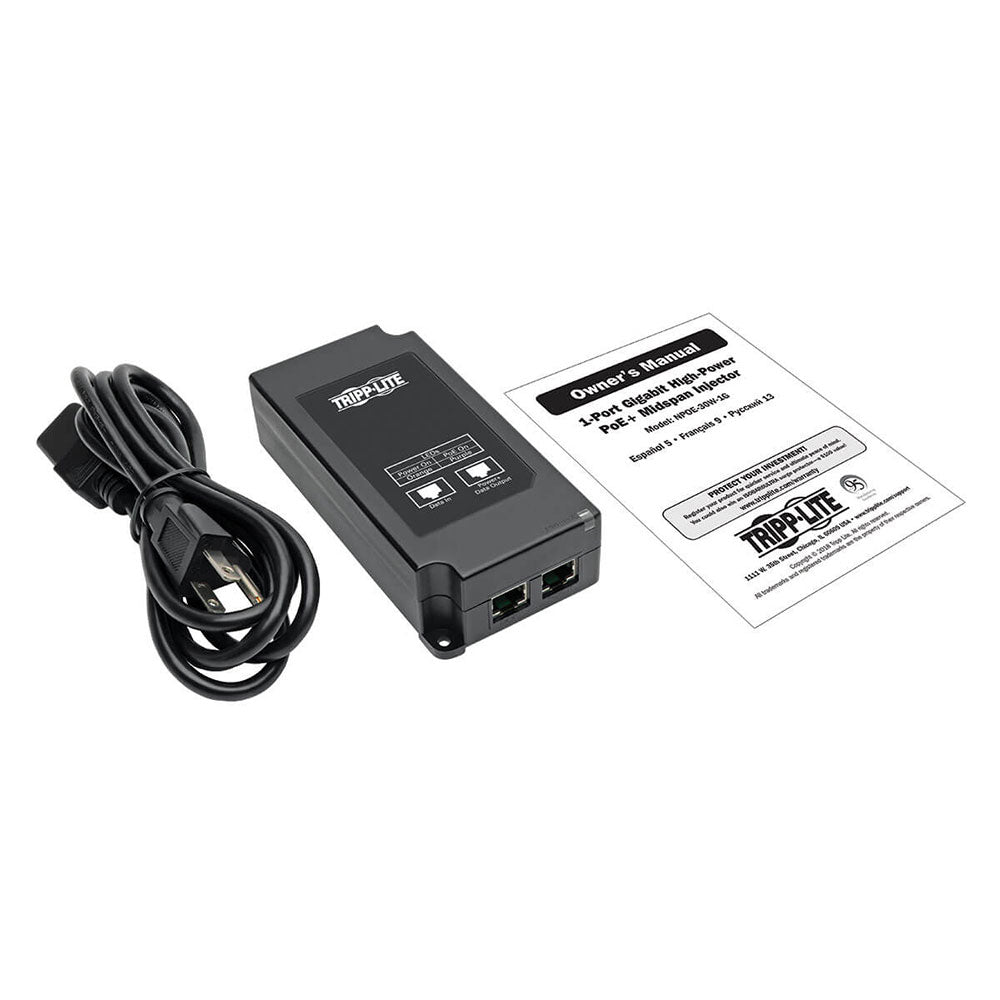

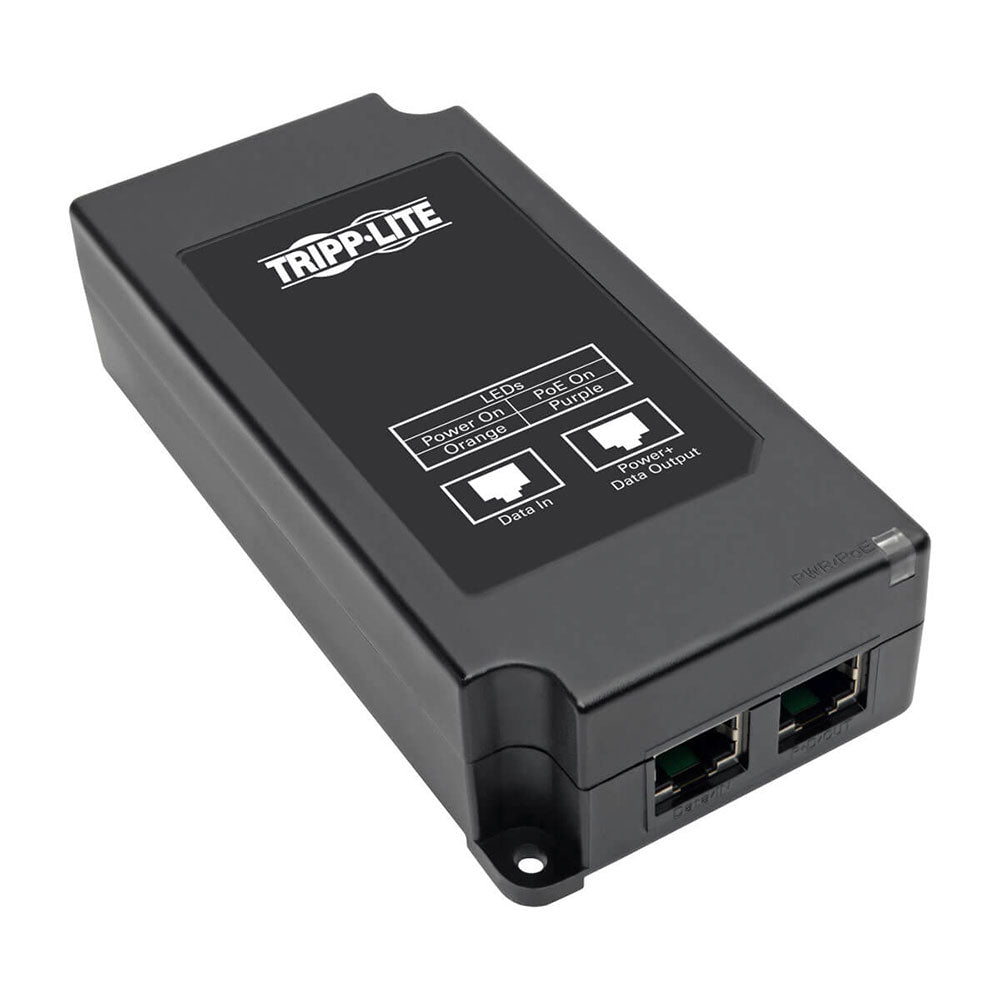

Tripp-Lite NPOE-30W-1G Gigabit PoE+ Midspan Active Injector

  • Dale #:

    TRIP-NPOE30W1G
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

PoE+ injector uses existing Cat5e/6/6a cable to supply power to a PoE device connected to a non-PoE switch. Features: Saves money by delivering 30W of power + data up to 328 ft. through existing cabling Extends power + data to any PoE or PoE+ device installed where no AC outlet is availa... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

PoE+ injector uses existing Cat5e/6/6a cable to supply power to a PoE device connected to a non-PoE switch.

Features:

  • Saves money by delivering 30W of power + data up to 328 ft. through existing cabling
  • Extends power + data to any PoE or PoE+ device installed where no AC outlet is available
  • Supports Gigabit Ethernet data transfer speeds up to 1000 Mbps
  • Quick and easy plug-and-play installation with no configuration necessary
  • Compact, hand-sized plastic housing ready for mounting on any smooth surface
  • 3-year limited warranty


Adds PoE Devices to Your LAN Without a PoE Switch
Now you can add a surveillance camera, wireless access point, VoIP phone or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn’t support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE+ injector to send 30 watts of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling.

Saves You Time and Money on Unnecessary Equipment Updates
This compact PoE plus injector delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don’t need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor.

Expand Your Wireless Network Up to 328 ft.
The NPOE-30W-1G delivers both power and data to any IEEE 802.3at (PoE+) or IEEE 802.3af (PoE) device up to 100 meters (328 feet) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, overloads and power surges.

Simple Plug-and-Play Installation Has Your Device Connected in Minutes

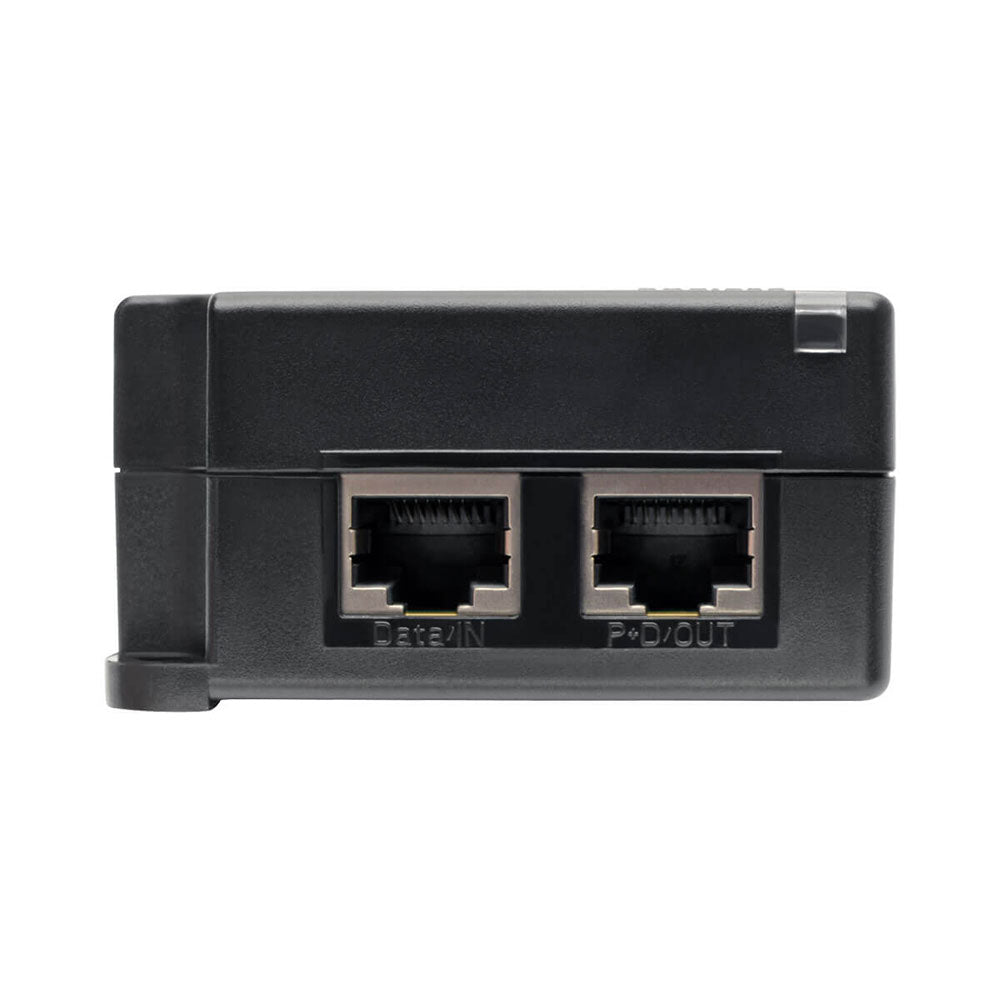

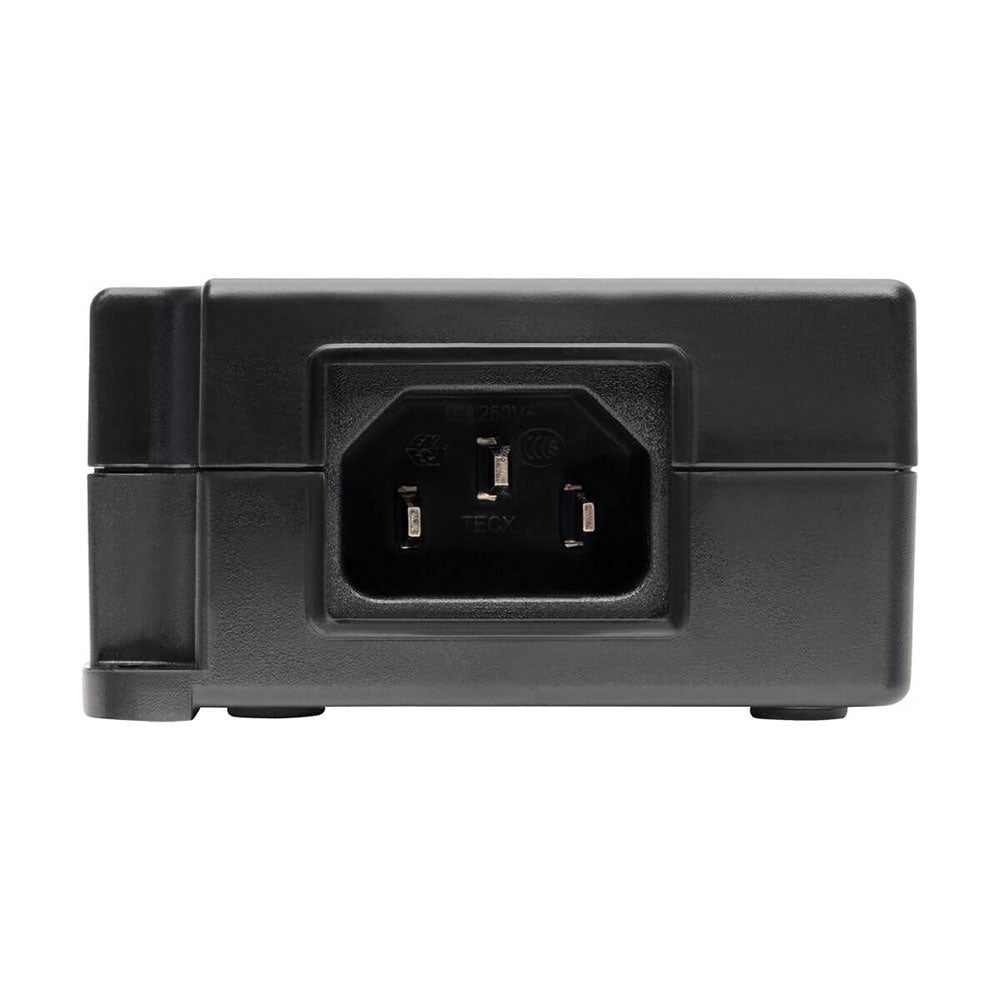

No configuration or software is required to add the NPOE-30W-1G to your LAN. Just connect your switch or network jack to the shielded RJ45 Data port and your PoE device to the shielded RJ45 Power + Data port using existing Cat5e/6/6a cable. Connect the unit’s C14 inlet to a NEMA 5-15R outlet using the included power cord. LEDs indicate the unit is receiving power and is ready to transmit data.

Designed for Installation Almost Anywhere
Mounting holes are featured for installing the midspan injector on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation.

3-Year Warranty and Environmentally Responsible Design
The NPOE-30W-1G comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

More +

Product Specs

Voltage Compatibility (VAC) 100; 110; 120; 127; 200; 208; 220; 230; 240
Input Frequency 50/60 Hz
Primary Form Factor Desktop
Unit Dimensions (hwd / in.) 1.4 x 2.6 x 5.4
Color Black
Operating Temperature Range 32 to 122 F (0 to 50 C)
Storage Temperature Range -4 to 176 F (-20 to 80 C)
Relative Humidity 10% to 90% RH, Non-Condensing
Network Speed 1Gbps
IEEE Standards Supported 802.3; 802.3ab; 802.3af; 802.3at; 802.3u
Connections Side A - Connector 1 RJ45 (FEMALE)
Side B - Connector 1 RJ45 (FEMALE)
Network Switch Ports 10/100/1000 (RJ45)
Technology Cat5/5e; Cat6; Cat6a
PoE Compliant Yes
Certifications Tested to CE, FCC, RoHS, REACH
Product Warranty Period (Worldwide) 3-year limited warranty
