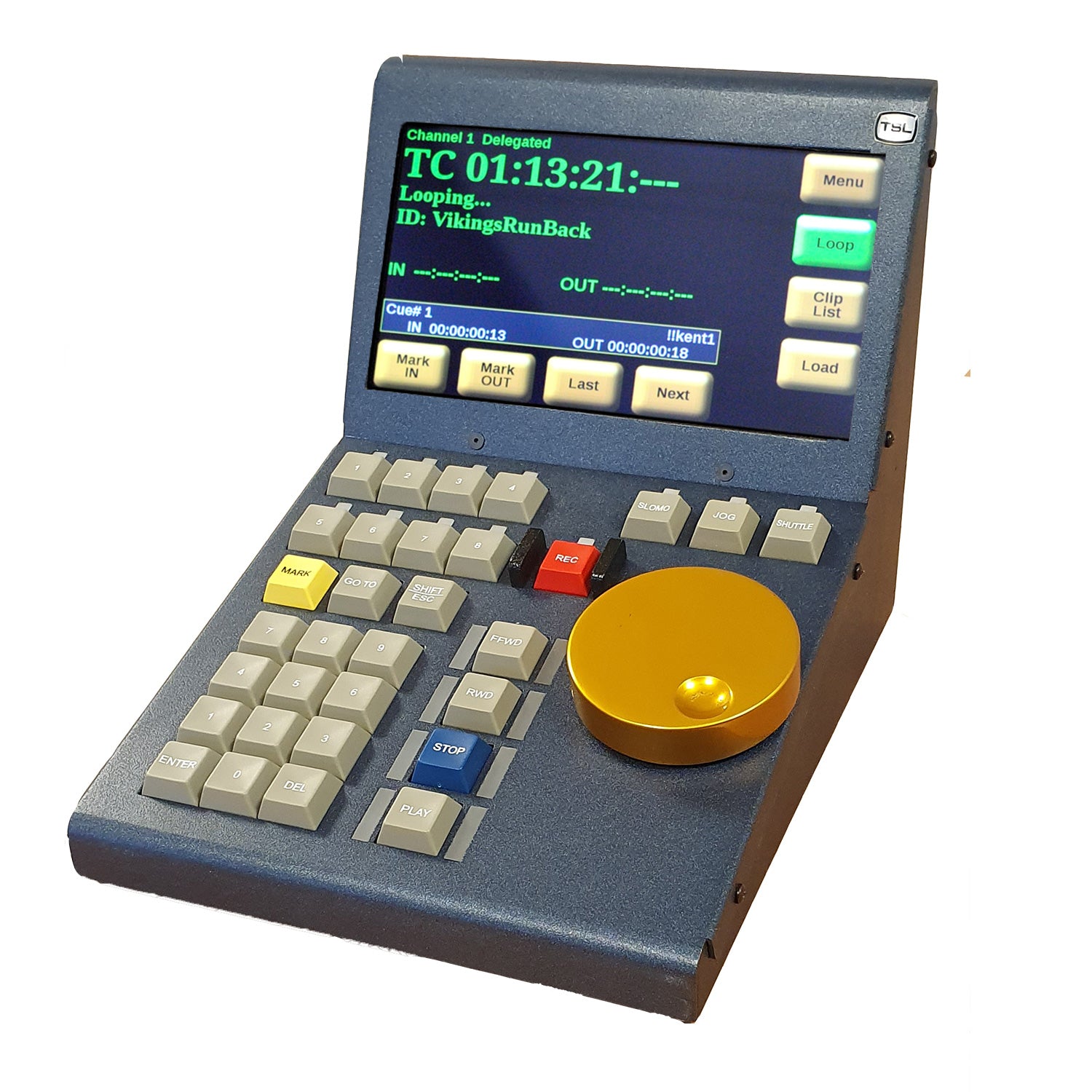

TSL CP30 - Control Surface for Flex Control System
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Part of the Flex Control Network, the CP30 Control Panel, combined with the GTP Control Processor, offers a tactile user interface with the speed and responsiveness operators demand, and the transport control they require. Additionally, you can control up to 8 Server channels with ease.
Flex Control Network makes it easy to manage a single video server channel up to 32 playout channels. Press a button to load and play a clip on one channel. Load a fill clip/key clip combination on two channels for synchronous roll to air, or eight clips across eight channels for individual or gang roll playout.
Features:
- 8 Server channel control
- Ethernet to GTP controller
- USB keyboard connection for Chip naming
- Wheel (SlowMo, JOG and Shuttle Control)
- Touch Screen Display
| Form | Desktop |
| Buttons | 31 x Dedicated function keys |
| Front Panel Display | 7" LCD Touch Screen Display |
| Front Panel Keyboard | 47 Keys, 1 x Control Wheel |
| Ports | 1 x USB |
| ENET | 1 x 100Mb Ethernet |
| Power | Dual Redundant Power (second PSU optional) |
| Size: (H.W.D.) | 1/4 in. X 7 1/2 in. X 9 1/2 in. |
| Weight | 7lbs |
Part of the Flex Control Network, the CP30 Control Panel, combined with the GTP Control Processor, offers a tactile user interface with the speed and responsiveness operators demand, and the transport control they require. Additionally, you can control up to 8 Server channels with ease.
Flex Control Network makes it easy to manage a single video server channel up to 32 playout channels. Press a button to load and play a clip on one channel. Load a fill clip/key clip combination on two channels for synchronous roll to air, or eight clips across eight channels for individual or gang roll playout.
Features:
- 8 Server channel control
- Ethernet to GTP controller
- USB keyboard connection for Chip naming
- Wheel (SlowMo, JOG and Shuttle Control)
- Touch Screen Display
| Form | Desktop |
| Buttons | 31 x Dedicated function keys |
| Front Panel Display | 7" LCD Touch Screen Display |
| Front Panel Keyboard | 47 Keys, 1 x Control Wheel |
| Ports | 1 x USB |
| ENET | 1 x 100Mb Ethernet |
| Power | Dual Redundant Power (second PSU optional) |
| Size: (H.W.D.) | 1/4 in. X 7 1/2 in. X 9 1/2 in. |
| Weight | 7lbs |
