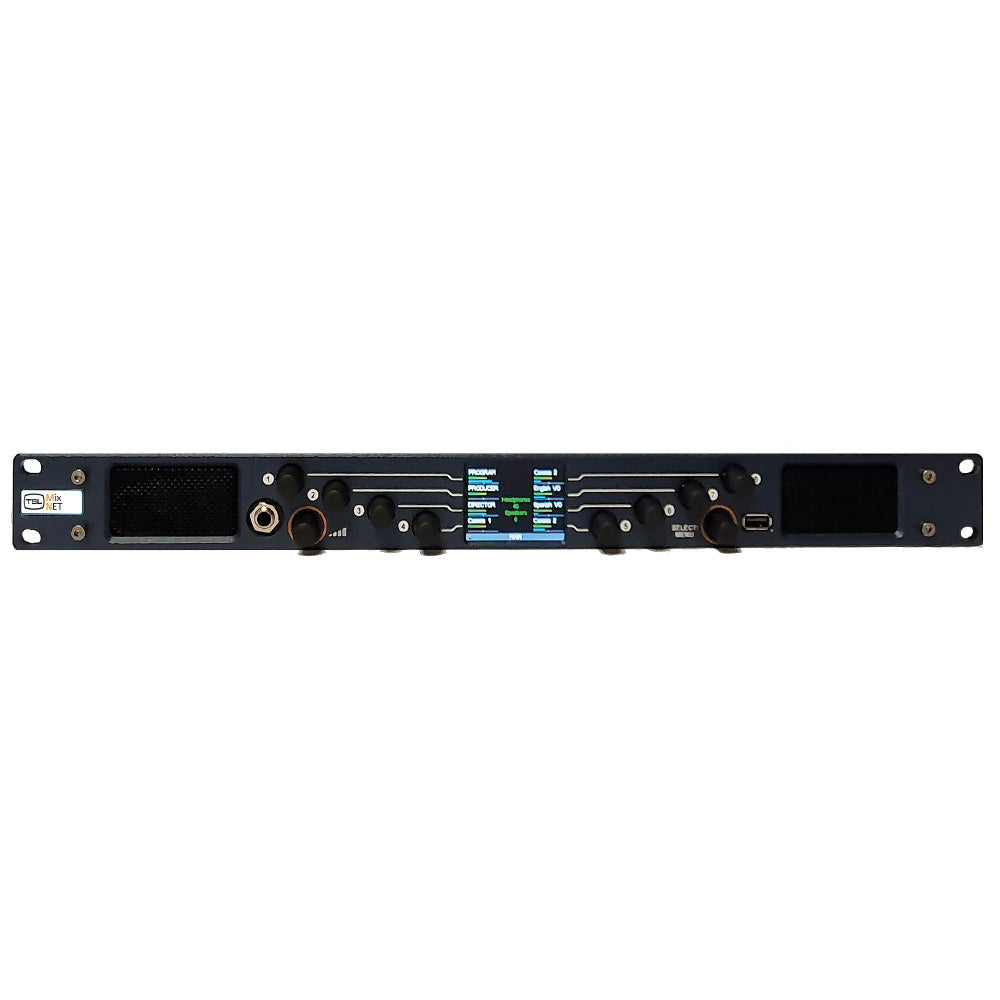

TSL MPA1-MIX-8-V - 8-Pair Analog and AES Audio Monitoring Unit

The MPA1 range of audio monitors from TSL Products is trusted by operators and engineers worldwide. The MPA1-MIX-8-V provides high quality audio monitoring of AES and Analogue sources with an intuitive interface and easy to use controls. Mute/Solo Press for Mute, press and hold for Solo Volume Mix Level Built on years of global broadcast audio expertise, the powerful and intuitive MPA1-MIX-8-V presents users with instant 'at a glance' monitoring of 8 AES sources and 8 Analogue audio pairs. With 8 dedicated rotary controls, users can quickly create their preferred monitoring mix. With a total of 32 audio channels available, up to 16 different monitoring mixes can be created and instantly recalled with the unique 'scroll to select' function As a member of the MPA1 range of audio monitors, the MPA1-MIX-8-V comes complete with a comprehensive web-page and SNMP support, allowing remote configuration and control

Features:

• High quality audio monitoring of AES and Analogue audio sources.
• Fast and intuitive stereo monitor mixing of up to 8 AES and Analogue audio pairs
• Audio level meter display of up to 8 audio pairs
• Quick store and recall of up to 16 monitor mixes
• Source Label and Monitor Mix Label display
• High quality internal loudspeaker system
• Headphone and External Loudspeaker monitoring Outputs.

Connections:

• 8 x Balanced AES Inputs
• 8 x Balanced Analogue Inputs (Pairs)
• 8 x GPIO
• 1 x Balanced Analogue Output Pair
• 1 x ¼ inch Headphone Output
• 1 x Front Panel USB
• 1 x RJ45 Ethernet control and monitoring port
