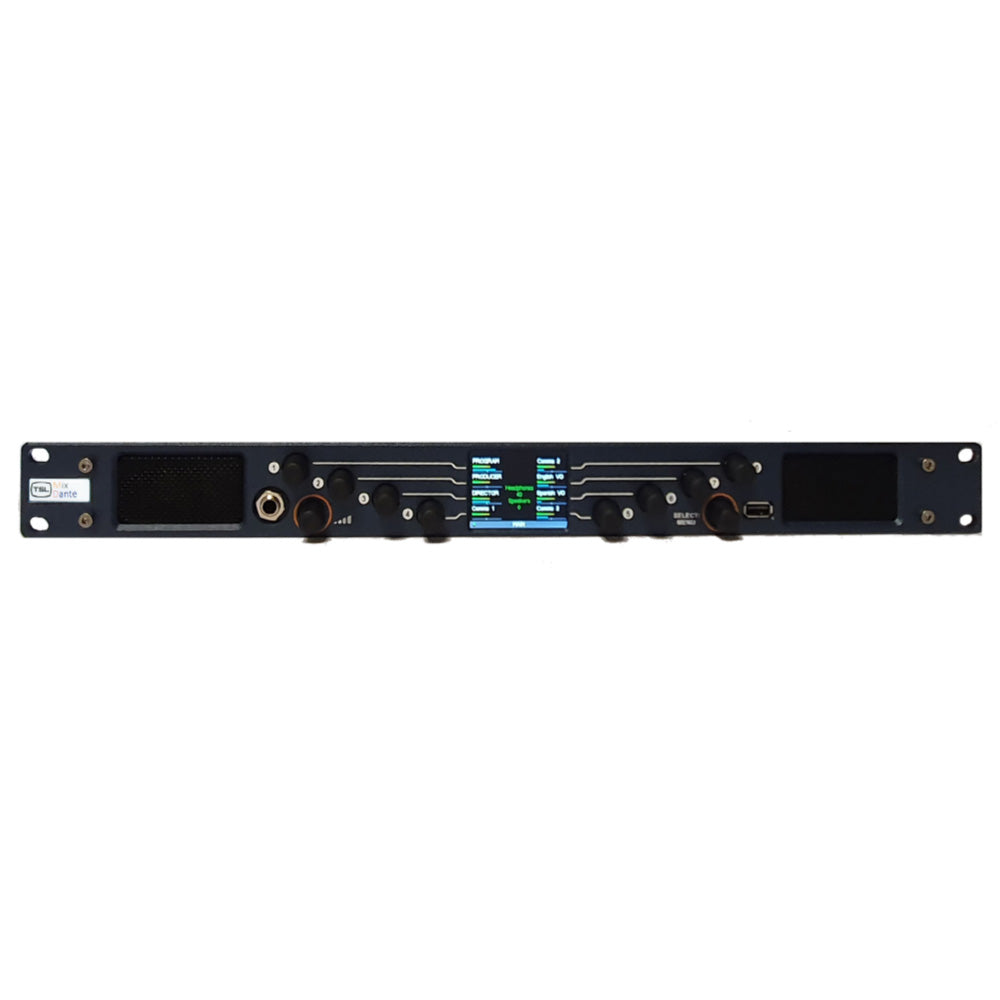

TSL MPA1-MIX-DANTE-V - Dante / AES67 / MADI Audio Monitoring Unit

The MPA1 range of audio monitors from TSL Products is trusted by operators and engineers worldwide. Built on years of global broadcast audio expertise, the powerful and intuitive MPA1-MIX-DANTE-V presents users with instant 'at a glance' monitoring of 64 DANTE/AES67 audio channels as well as 64 MADI channels. The MPA1-MIX-DANTE-V provides simultaneous audio monitoring of 64 Dante audio channels and a MADI stream comprising a further 64 channels, with an intuitive interface and easy to use controls.

With 8 dedicated rotary controls, users can quickly create their preferred monitoring mix. With a total of 128 audio channels available, up to 16 different monitoring mixes can be created and instantly recalled with the unique 'scroll to select' function. As a member of the MPA1 range of audio monitors, the MPA1-MIX-DANTE-V comes complete with a comprehensive web-page and SNMP support, allowing remote configuration and control.

Features:

• Enables the creation of a custom mix on the fly from any of the sources available regardless of I/O type.
• Web Server - Configuration: Built in web server specifically designed to enable remote configuration and monitoring of networked units.
• 'Scroll to Hear' – top level bar graph navigation using rotary encoder
• High quality internal full range loudspeaker system
• Compact, lightweight deep
• Headphone output with selectable loudspeaker muting behaviour

Connections:

• 1 x Ethernet connection for Network connectivity allowing software updates, monitoring and control via a web browser
• 1 x front panel USB connector for system updates
• 1.5Kg. 1RU case, 100mm
• 90-240V 50/60Hz mains input on IEC connection
• 16 channel Bargraph Meter
• 1 x Dante / AES67 input
• MADI I/O
