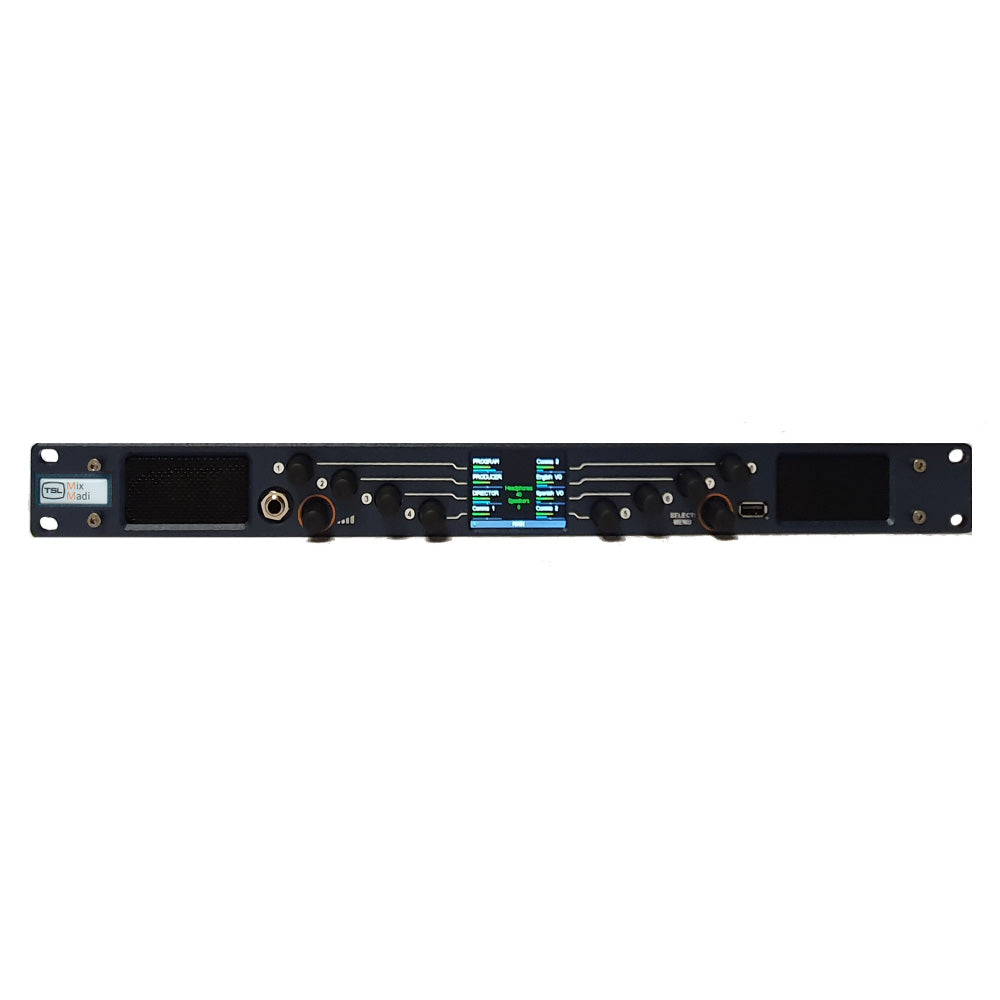

TSL MPA1-MIX-MADI-V - MADI Audio Monitoring Unit

The MPA1 range of audio monitors from TSL Products is trusted by operators and engineers worldwide. MADI Built on years of global audio expertise, the powerful and intuitive MPA1-MIX-MADI-V presents users with instant 'at a glance' monitoring of 64 MADI audio channels. The MPA!-MIX-MADI-V provides simultaneous audio monitoring of 64 MADI audio channels and 8 Analogue audio pairs, with an intuitive interface and easy to use controls.

With 8 dedicated rotary controls, users can quickly create their preferred monitoring mix. With a total of 64 audio channels available, up to 16 different monitoring mixes can be created and instantly recalled with the unique 'scroll to select' function. As a member of the MPA1 range of audio monitors, the MPA1-MIX-MADI-V comes complete with a comprehensive web-page and SNMP support, allowing remote configuration and control.

Features:

• High quality audio monitoring of 64 MADI audio channels
• Fast and intuitive monitor mixing of up to 8 MADI audio pairs
• Audio level meter display of up to 8 audio pairs
• Quick store and recall of up to 16 monitor mixes
• Source Label and Monitor Mix Label display
• High quality internal loudspeaker system
• Headphone and External Loudspeaker monitoring Outputs
• 1 x Coaxial MADI Input (with loop through connection)
• 1 x Optical MADI Input
• 1 x ¼ inch Headphone Output
• 2 x Line Level Balanced Analogue Outputs for connection to external loudspeakers, Fixed or variable output with -20dB pad.
• 1x Front Panel USB
• 1 x RJ45 Ethernet control and monitoring port
• 100-240V 50/60Hz mains input on IEC
• 1RU Depth

Connections:

• 1 x Coaxial MADI Input (with loop through connection)
• 1 x Optical MADI Input
• 1 x Balanced Analogue Output Pair
• 1 x ¼ inch Headphone Output
• 1 x Front Panel USB
• 1 x RJ45 Ethernet control and monitoring port
• 100-240V 50/60Hz mains input on IEC
