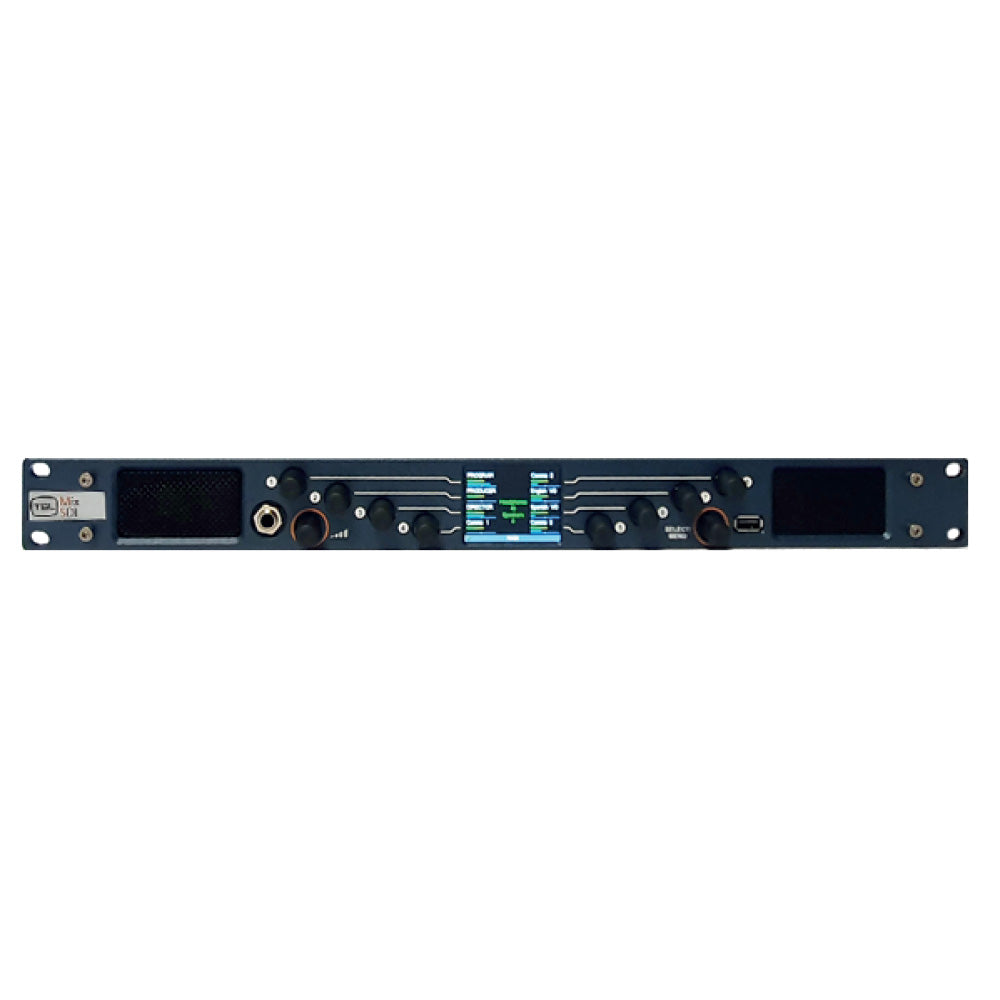

TSL MPA1-MIX-SDI-V - 3G/HD/SD SDI Audio Monitoring Unit

The MPA1 range of audio monitors from TSL Products is trusted by operators and engineers worldwide. Built on years of global broadcast audio expertise, the powerful and intuitive MPA1-MIX-SDI-V presents users with instant 'at a glance' monitoring of 32 SDI embedded audio channels as well as an AES source and Balanced Analogue audio source. TThe MPA1-MIX-SDI-V provides simultaneous audio monitoring of SDI embedded audio, AES and Analogue audio channels, with an intuitive interface and easy to use controls.

The MPA1 Mix SDI V allows up to 16 unique Stereo Monitoring Mixes, with quick store and recall. As a member of the MPA1 range of audio monitors, the MPA1-MIX-SDI-V comes complete with a comprehensive web-page and SNMP support, allowing remote configuration and control.

Features:

• High quality audio monitoring of SDI, AES and Analogue audio sources
• Fast and intuitive stereo monitor mixing of up to 8 SDI Embedded Audio Pairs, AES and Analogue audio pairs
• Audio level meter display of up to 8 audio pairs
• Quick store and recall of up to 16 monitor mixes
• Source Label and Monitor Mix Label display
• High quality internal loudspeaker system
• Headphone and External Loudspeaker monitoring Outputs
• Headphone output with selectable loudspeaker muting behaviour
• Built in web server allows remote configuration, control and monitoring over an Ethernet network
• SNMP control allows for tight integration with TSL Tallyman and 3rd Party Control Systems
• Free software updates

Connections:

• 2 x 3G-SDI Coaxial Inputs
• 1 x AES3id Coaxial Input
• 1 x Balanced Analogue Input Pair
• 1 x 3G SDI Output (with Embedded Audio)
• 1 x HDMI Output
• 1 x Balanced Analogue Output Pair
• 1 x ¼ inch Headphone Output
• 1 x Front Panel USB
• 1 x RJ45 Ethernet control and monitoring port
