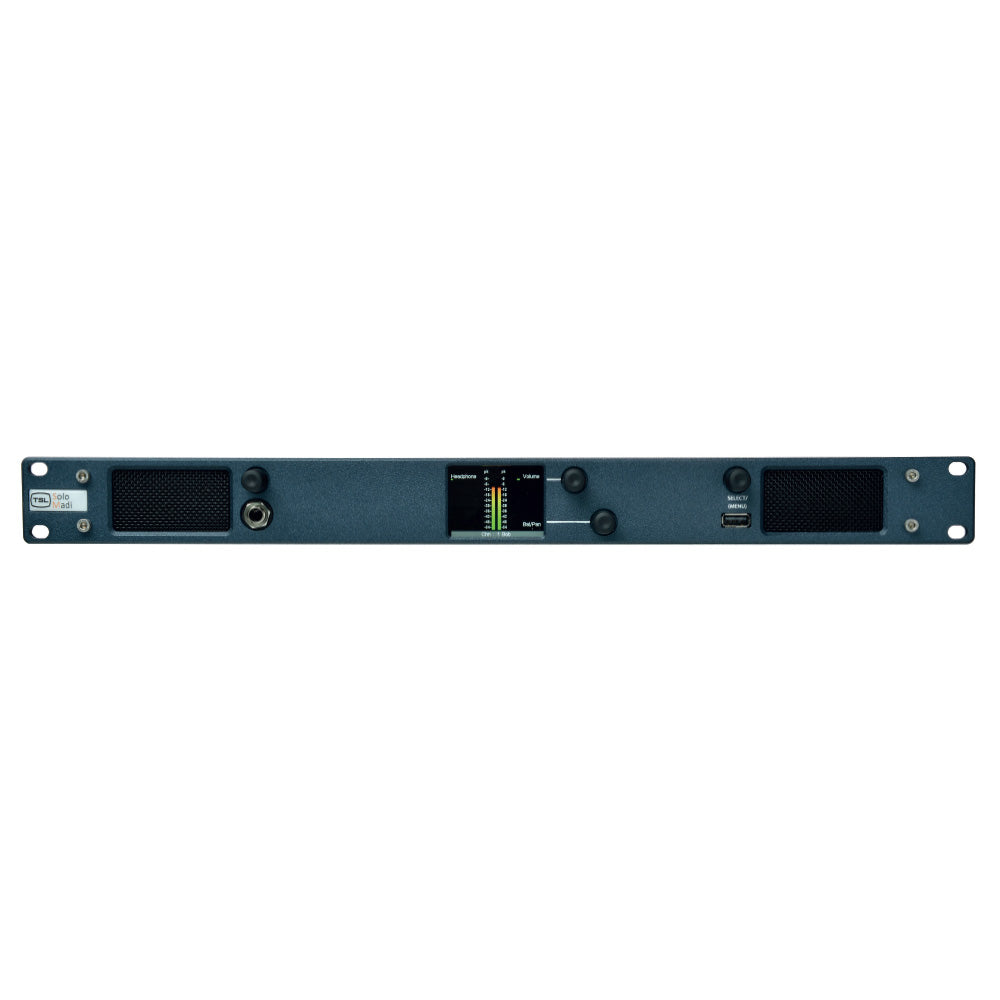

TSL MPA1-SOLO-8 - 8-Pair Analog / 4-Pair AES Audio Monitoring Unit

The MPA1 range of audio monitors from TSL Products is trusted by operators and engineers worldwide The MPA1-SOLO-8 provides audio monitoring of a 8 AES sources and 16 Balanced Analogue channels with an intuitive interface and easy to use controls.

Built on years of global broadcast audio expertise, the powerful and intuitive MPA1-SOLO-8 presents users with instant 'at a glance' monitoring of 8 AES audio sources and 8 Balanced Analogue Channels. The unique 'scroll to hear' function allows users to scroll through and monitor a total of 8 AES sources and 16 Analogue audio channels with ease. As a member of the MPA1 range of audio monitors, the MPA1-SOLO-8 comes complete with a comprehensive web-page and SNMP support, allowing remote configuration and control.

Features:

• High quality audio monitoring of AES and Analogue audio sources.
• Fast and intuitive scroll to listen operation of any chosen audio pair.
• Audio level meter display showing all Analogue or all AES sources simultaneously.
• 'Zoom View' of any audio pair including Audio Phase Metering.
• Source Label Display.
• High quality internal loudspeaker system.
• Headphone and External Loudspeaker monitoring Outputs.
• Built in web server allows remote configuration, control and monitoring over an Ethernet network.
• SNMP control allows for tight integration with TSL Tallyman and 3rd Party Control Systems.
• Free software updates.

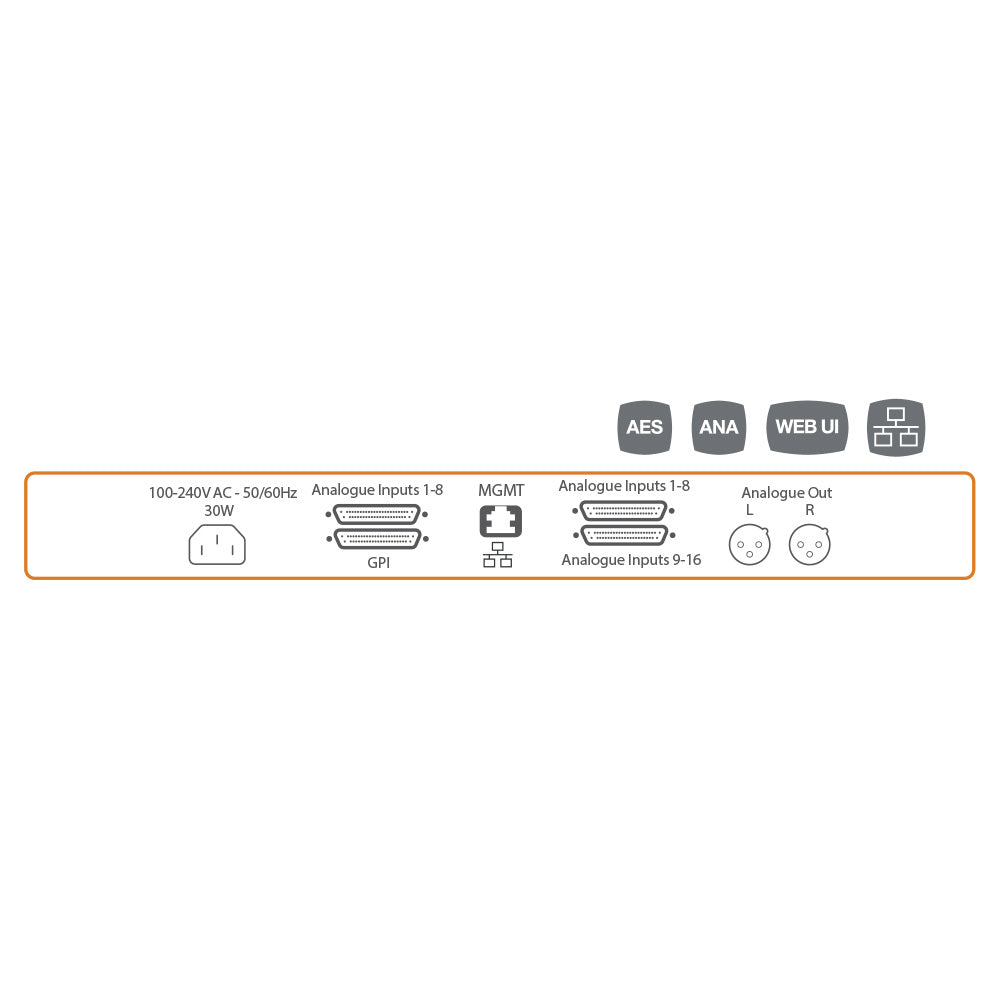

Connections:

• 8 x Balanced AES Inputs
• 8 x Balanced Analogue Inputs (Pairs)
• 8 x GPIO
• 1 x Balanced Analogue Output Pair
• 1 x ¼ inch Headphone Output
• 1 x Front Panel USB
• 1 x RJ45 Ethernet control and monitoring port
