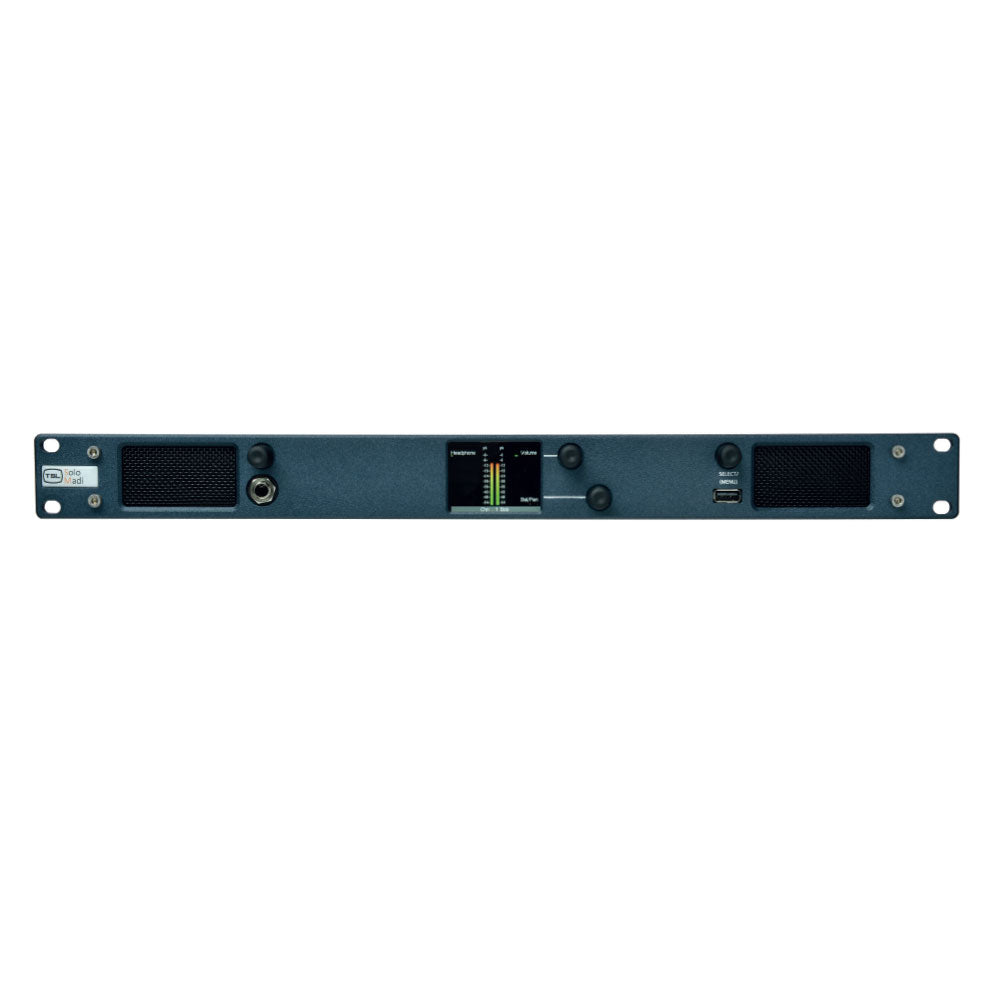

TSL MPA1-SOLO-IP - SDI and IP Audio Monitoring Unit

Whether monitoring redundant SDI infrastructures or redundant IP networks, the MPA1-SOLO-IP provides confidence monitoring without compromise. As the latest addition to the MPA1 Range, the MPA1 Solo IP helps make the transition to IP seamless, providing peace of mind and ease of use in even the most demanding environments. Featuring 2 SFP cages the MPA1 Solo IP allows redundant connectivity to ST-2022-6 / ST-2110 IP networks, in addition to SDI, AES and Analogue inputs also allowing for hybrid monitoring environments. Tight integration with your control system is made possible through SNMP, Ember+ and NMOS.

Features:

• 2 x SFP ports for redundant monitoring of ST-2110 and ST-2022-6 video and audio sources (optional SFP's required)
• 1 x Ethernet connection for monitoring and control via a web-browser and SNMP
• Audio monitoring of 16 audio channels, with intuitive 'scroll to hear' selection
• Front panel video display of 3G/HD/SD sources
• 2 x Balanced Analogue Inputs on XLR connectors
• 1 x AES3id input on BNC
• 2 x SFP ports for redundant monitoring of SDI over Fibre (optional SFP's required)
• 1 x front panel USB connector for system updates
• 2 x Line Level Balanced Analogue Outputs for connection to external loudspeakers. Line level with selectable mute and -20dB
• 1 x SDI Loop Thru (with selectable 'fixed' or 'follow' modes)
• 1 x HDMI Output.
