TSL PAM1-MK2 - Multi-Format Precision Audio Monitor (with Dolby)

TSL's flagship Precision Audio Monitor (PAM) range supports stereo, multichannel, multi-language and surround sound environments via a sophisticated, intuitive control interface.

Features:

• Fully configurable analogue and digital multichannel outputs
• Optional support for Dolby E®, Dolby Digital® and Dolby Digital Plus®
• Dual auto-sensing, 1080p (60, 59, 94 and 50Hz), HD/SDI video inputs

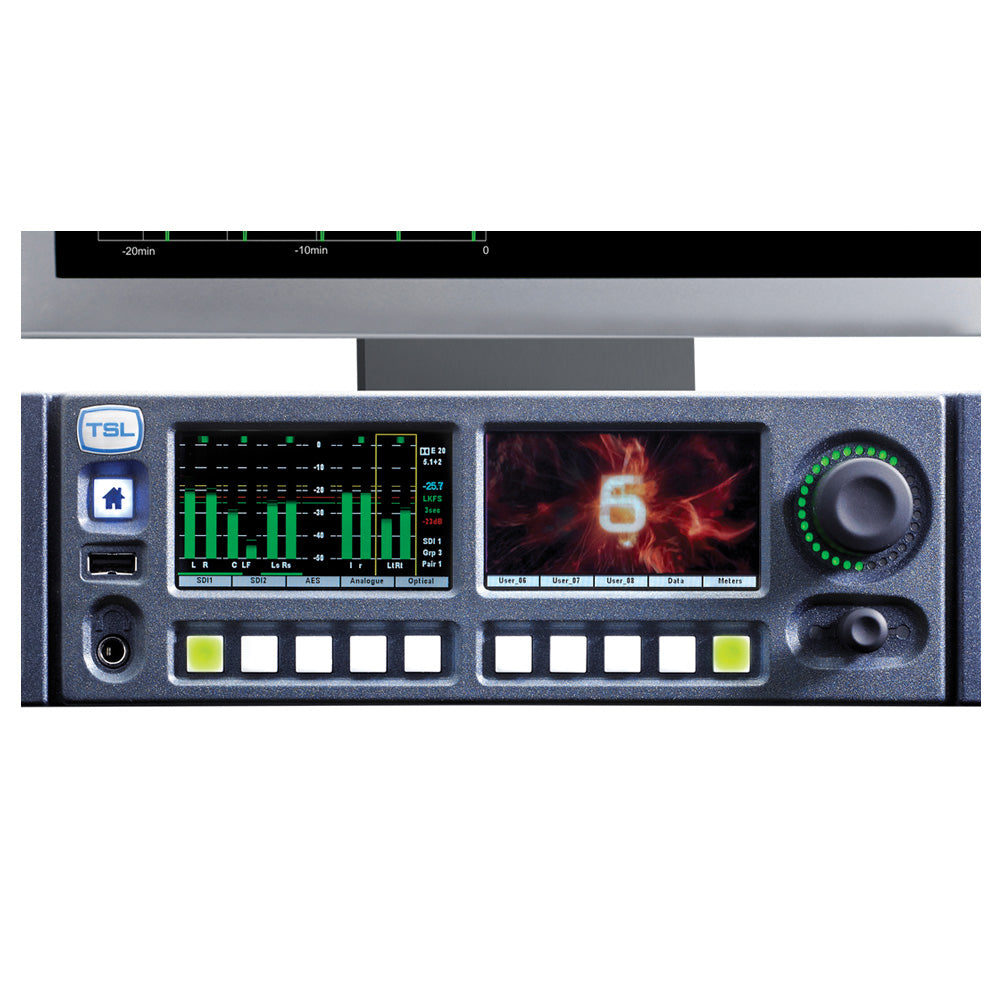

• Dual high resolution 2.4? screens for 16 bargraphs, setup and metadata display.
• Downmix of discreet multichannel audio to stereo for compatibility monitoring
• Hi Resolution Video confidence monitoring
• ITU BS1770/71 loudness measurement and Histogram
• Ability to monitor in sync using the AV off set to cater for any inherent delay
• User Programmable 'Assign Matrix'
• Audio Output Delay
• Automatic mode switching – depending on signal type

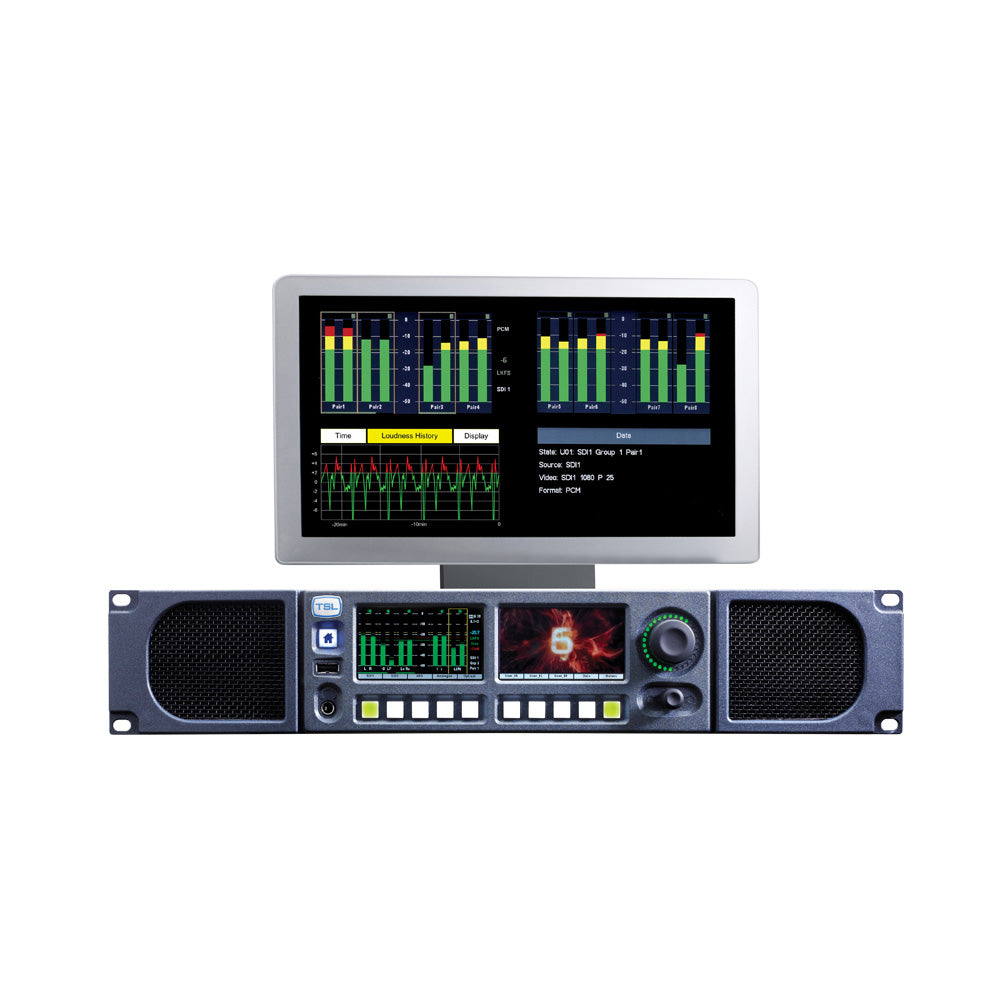

• Pushes PAM data to the monitor wall, with use configurable quadrants and HD-SDI output
• Multichannel audio outputs for external stereo or 5.1 loudspeaker system integration
• High quality internal full range loudspeaker system
