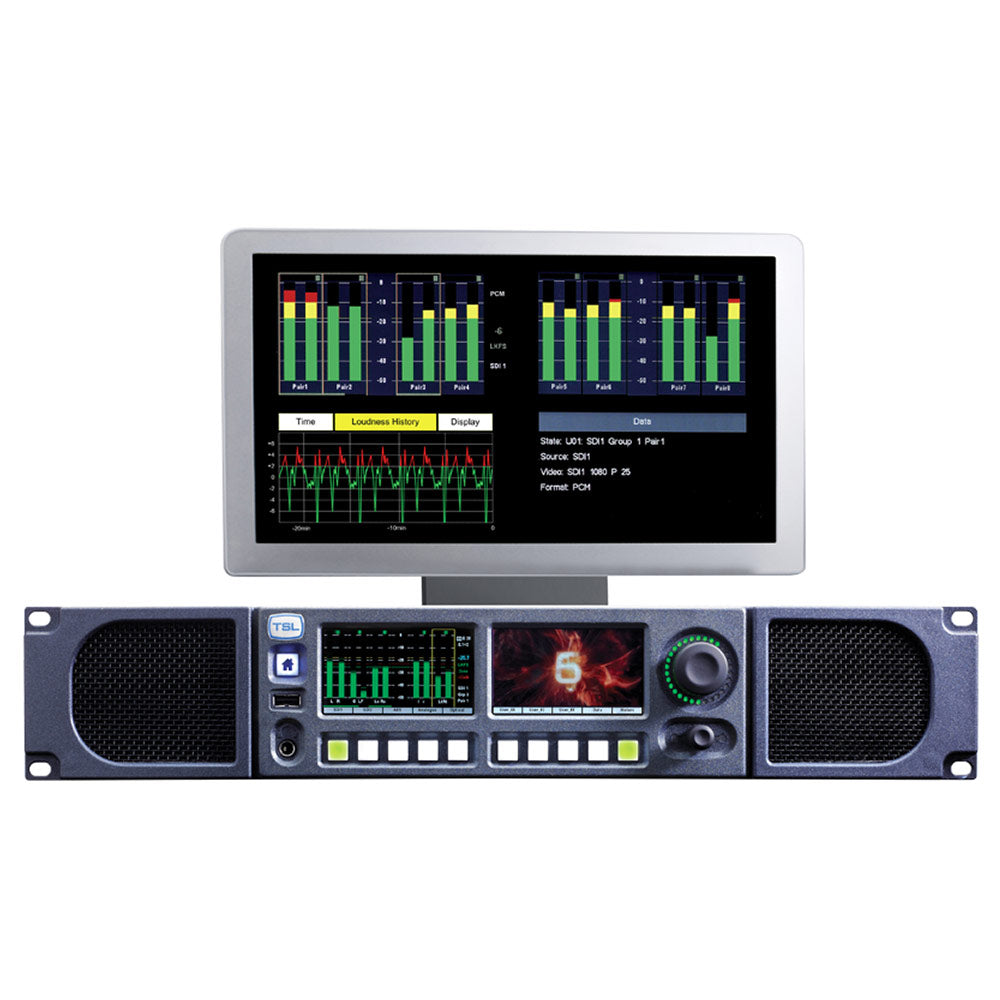

TSL PAM1-MK2-ND - Multi-Format Precision Audio Monitor
Sale price$6,819.18
Description
TSL's flagship Precision Audio Monitor (PAM) range supports stereo, multichannel, multi-language and surround sound environments via a sophisticated, intuitive control interface.
Features:
- Fully configurable analogue and digital multichannel outputs
- Optional support for Dolby E®, Dolby Digital® and Dolby Digital Plus®
- Dual auto-sensing, 1080p (60, 59, 94 and 50Hz), HD/SDI video inputs

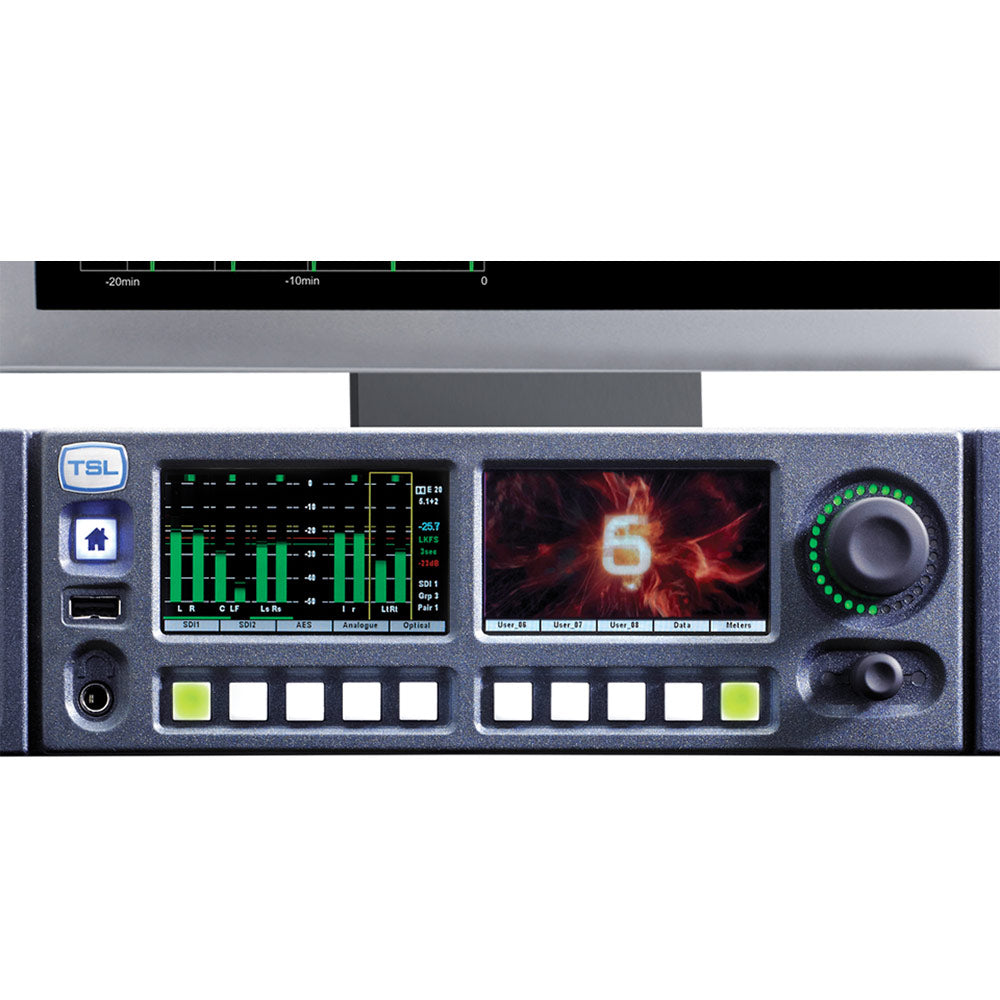

- Dual high resolution 2.4? screens for 16 bargraphs, setup and metadata display.
- Downmix of discreet multichannel audio to stereo for compatibility monitoring
- Hi Resolution Video confidence monitoring
- ITU BS1770/71 loudness measurement and Histogram
- Ability to monitor in sync using the AV off set to cater for any inherent delay
- User Programmable 'Assign Matrix'
- Audio Output Delay
- Automatic mode switching – depending on signal type

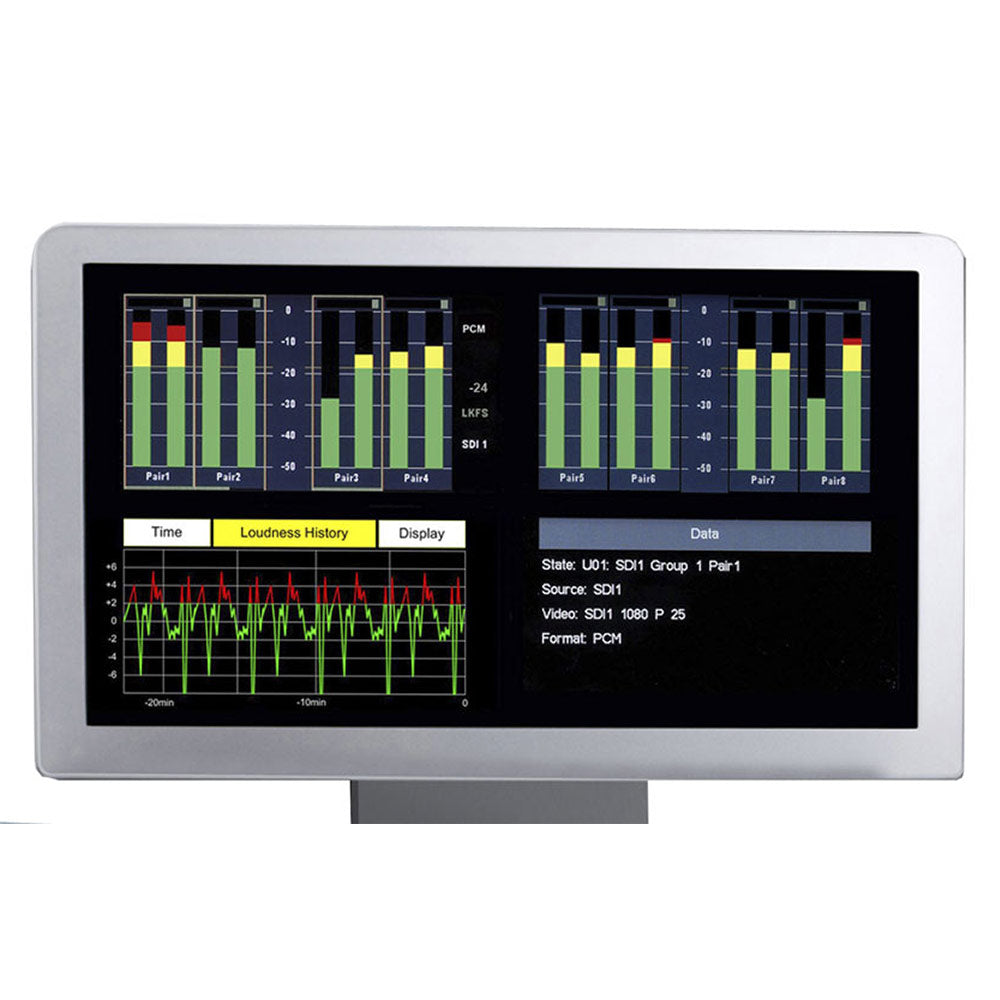

- Pushes PAM data to the monitor wall, with use configurable quadrants and HD-SDI output
- Multichannel audio outputs for external stereo or 5.1 loudspeaker system integration
- High quality internal full range loudspeaker system

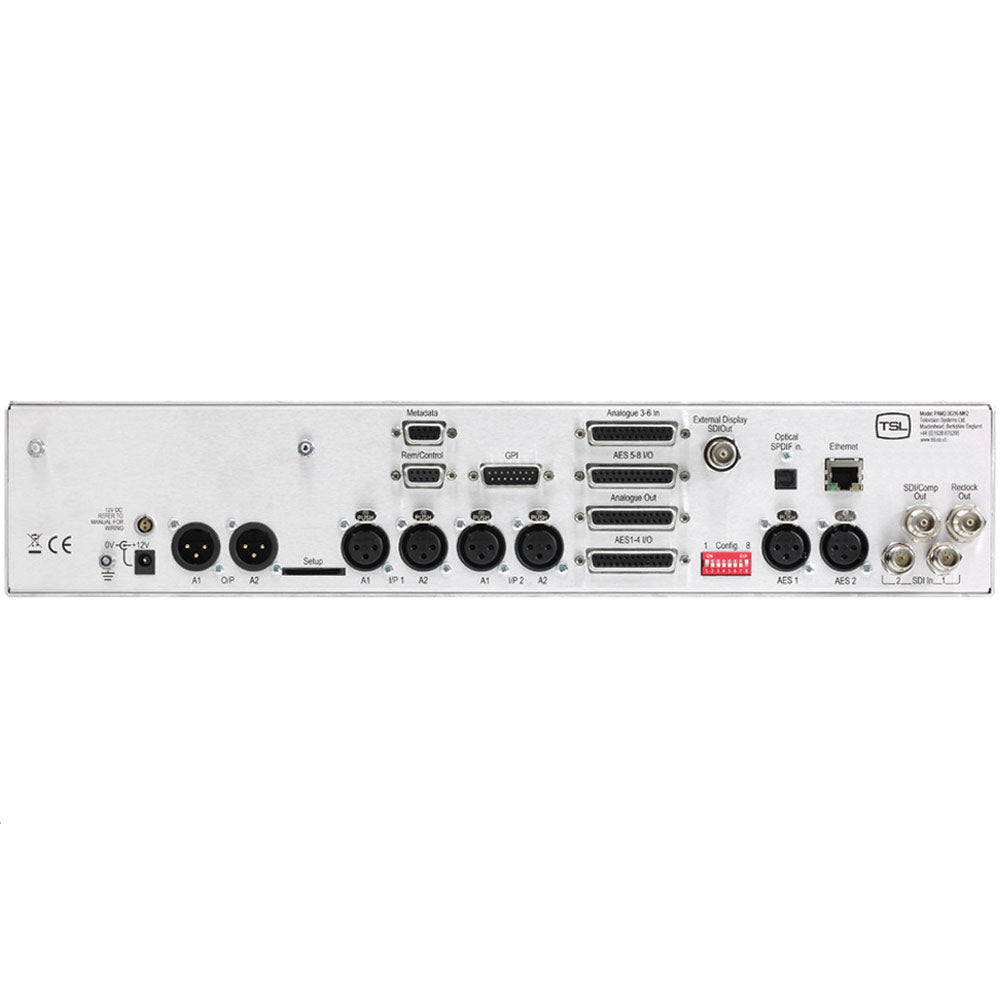

| Connections | 4 AES (4 Pairs/8 Channel) InputsÐ 110Ohm Balanced or 75Ohm unbalanced via optional CAB-D25-BNC cable |
| Power | Dual 12V DC inputs |
| Control | Serial remote control |
| Dimensions | Compact, lightweight (weight tbc) 1RU case, 250mm deep |
| Analogue Inputs | 2 Analogue Stereo Inputs |
| Updates | 1 xSD card slot for system updates and preset save/recall 'Scroll To Hear' 1 xUSB connector for system updates and preset save/recall |
TSL's flagship Precision Audio Monitor (PAM) range supports stereo, multichannel, multi-language and surround sound environments via a sophisticated, intuitive control interface.
Features:
- Fully configurable analogue and digital multichannel outputs
- Optional support for Dolby E®, Dolby Digital® and Dolby Digital Plus®
- Dual auto-sensing, 1080p (60, 59, 94 and 50Hz), HD/SDI video inputs
- Dual high resolution 2.4? screens for 16 bargraphs, setup and metadata display.
- Downmix of discreet multichannel audio to stereo for compatibility monitoring
- Hi Resolution Video confidence monitoring
- ITU BS1770/71 loudness measurement and Histogram
- Ability to monitor in sync using the AV off set to cater for any inherent delay
- User Programmable 'Assign Matrix'
- Audio Output Delay
- Automatic mode switching – depending on signal type
- Pushes PAM data to the monitor wall, with use configurable quadrants and HD-SDI output
- Multichannel audio outputs for external stereo or 5.1 loudspeaker system integration
- High quality internal full range loudspeaker system
| Connections | 4 AES (4 Pairs/8 Channel) InputsÐ 110Ohm Balanced or 75Ohm unbalanced via optional CAB-D25-BNC cable |
| Power | Dual 12V DC inputs |
| Control | Serial remote control |
| Dimensions | Compact, lightweight (weight tbc) 1RU case, 250mm deep |
| Analogue Inputs | 2 Analogue Stereo Inputs |
| Updates | 1 xSD card slot for system updates and preset save/recall 'Scroll To Hear' 1 xUSB connector for system updates and preset save/recall |
