TSL PAM2-3G16-3ND - HD/SDI Precision Audio Monitor
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

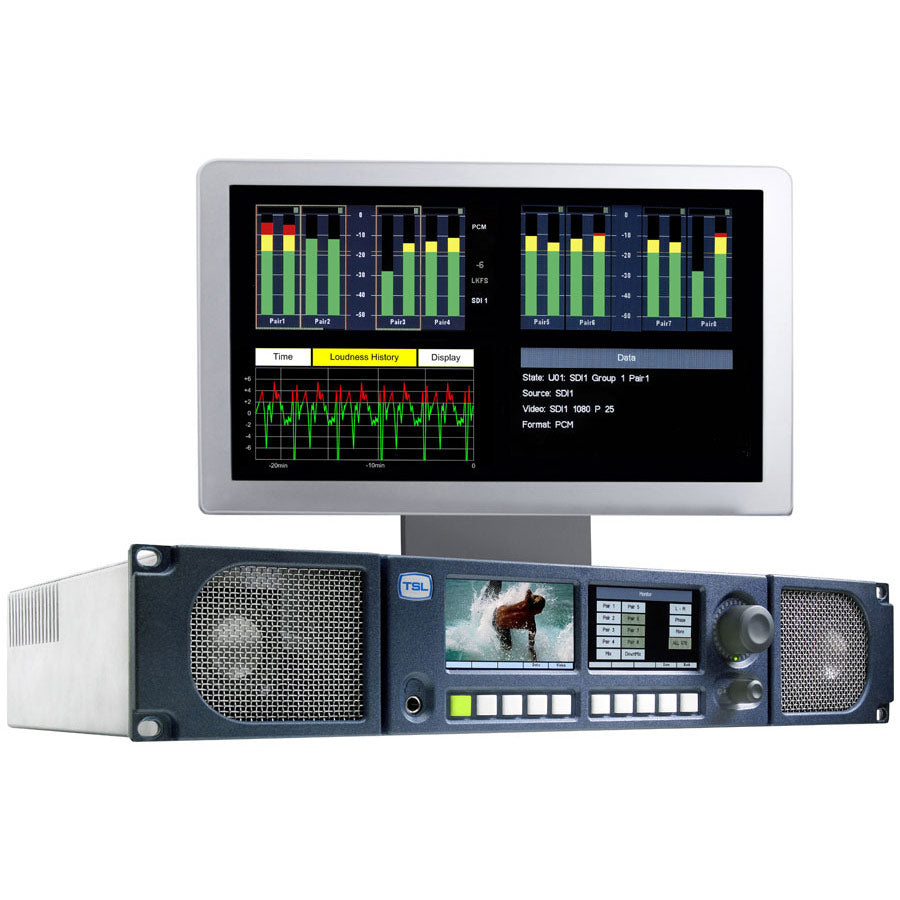

Precision Audio monitoring unit, 2RU, 2 x TFT LCD displays for 16 channel simultaneous audio monitoring, metadata, setup menus, video confidence monitor. 2 x HD/SDI (1080p 60, 59.94 and 50Hz), EBU-R128, CALM compliant loudness measurement. 6 x stereo analogue, 8 x AES inputs, Internal loudspeaker system, external PSU, External Monitor SDI output.
TSL's flagship Precision Audio Monitor (PAM) range supports stereo, multichannel, multi-language and surround sound environments via a sophisticated, intuitive control interface.
Features:
- Fully configurable analogue and digital multichannel outputs
- Optional support for Dolby E®, Dolby Digital® and Dolby Digital Plus®
- Dual auto-sensing, 1080p (60, 59, 94 and 50Hz), HD/SDI video inputs
- Dual high resolution 2.4? screens for 16 bargraphs, setup and metadata display.
- Downmix of discreet multichannel audio to stereo for compatibility monitoring
- Hi Resolution Video confidence monitoring
- ITU BS1770/71 loudness measurement and Histogram
- Ability to monitor in sync using the AV off set to cater for any inherent delay
- User Programmable 'Assign Matrix'
- Audio Output Delay
- Automatic mode switching – depending on signal type
- Pushes PAM data to the monitor wall, with use configurable quadrants and HD-SDI output
- Multichannel audio outputs for external stereo or 5.1 loudspeaker system integration
- High quality internal full range loudspeaker system
| Connections | 4 AES (4 Pairs/8 Channel) InputsÐ 110Ohm Balanced or 75Ohm unbalanced via optional CAB-D25-BNC cable |
| Power | Dual 12V DC inputs |
| Control | Serial remote control |
| Dimensions | Compact, lightweight (weight tbc) 1RU case, 250mm deep |
| Analogue Inputs | 2 Analogue Stereo Inputs |
| Updates | 1 xSD card slot for system updates and preset save/recall 'Scroll To Hear' 1 xUSB connector for system updates and preset save/recall |
Precision Audio monitoring unit, 2RU, 2 x TFT LCD displays for 16 channel simultaneous audio monitoring, metadata, setup menus, video confidence monitor. 2 x HD/SDI (1080p 60, 59.94 and 50Hz), EBU-R128, CALM compliant loudness measurement. 6 x stereo analogue, 8 x AES inputs, Internal loudspeaker system, external PSU, External Monitor SDI output.
TSL's flagship Precision Audio Monitor (PAM) range supports stereo, multichannel, multi-language and surround sound environments via a sophisticated, intuitive control interface.
Features:
- Fully configurable analogue and digital multichannel outputs
- Optional support for Dolby E®, Dolby Digital® and Dolby Digital Plus®
- Dual auto-sensing, 1080p (60, 59, 94 and 50Hz), HD/SDI video inputs
- Dual high resolution 2.4? screens for 16 bargraphs, setup and metadata display.
- Downmix of discreet multichannel audio to stereo for compatibility monitoring
- Hi Resolution Video confidence monitoring
- ITU BS1770/71 loudness measurement and Histogram
- Ability to monitor in sync using the AV off set to cater for any inherent delay
- User Programmable 'Assign Matrix'
- Audio Output Delay
- Automatic mode switching – depending on signal type
- Pushes PAM data to the monitor wall, with use configurable quadrants and HD-SDI output
- Multichannel audio outputs for external stereo or 5.1 loudspeaker system integration
- High quality internal full range loudspeaker system
| Connections | 4 AES (4 Pairs/8 Channel) InputsÐ 110Ohm Balanced or 75Ohm unbalanced via optional CAB-D25-BNC cable |
| Power | Dual 12V DC inputs |
| Control | Serial remote control |
| Dimensions | Compact, lightweight (weight tbc) 1RU case, 250mm deep |
| Analogue Inputs | 2 Analogue Stereo Inputs |
| Updates | 1 xSD card slot for system updates and preset save/recall 'Scroll To Hear' 1 xUSB connector for system updates and preset save/recall |
