TSL PAM2-IP-3G - 3G SDI / Dolby Precision Audio Monitor

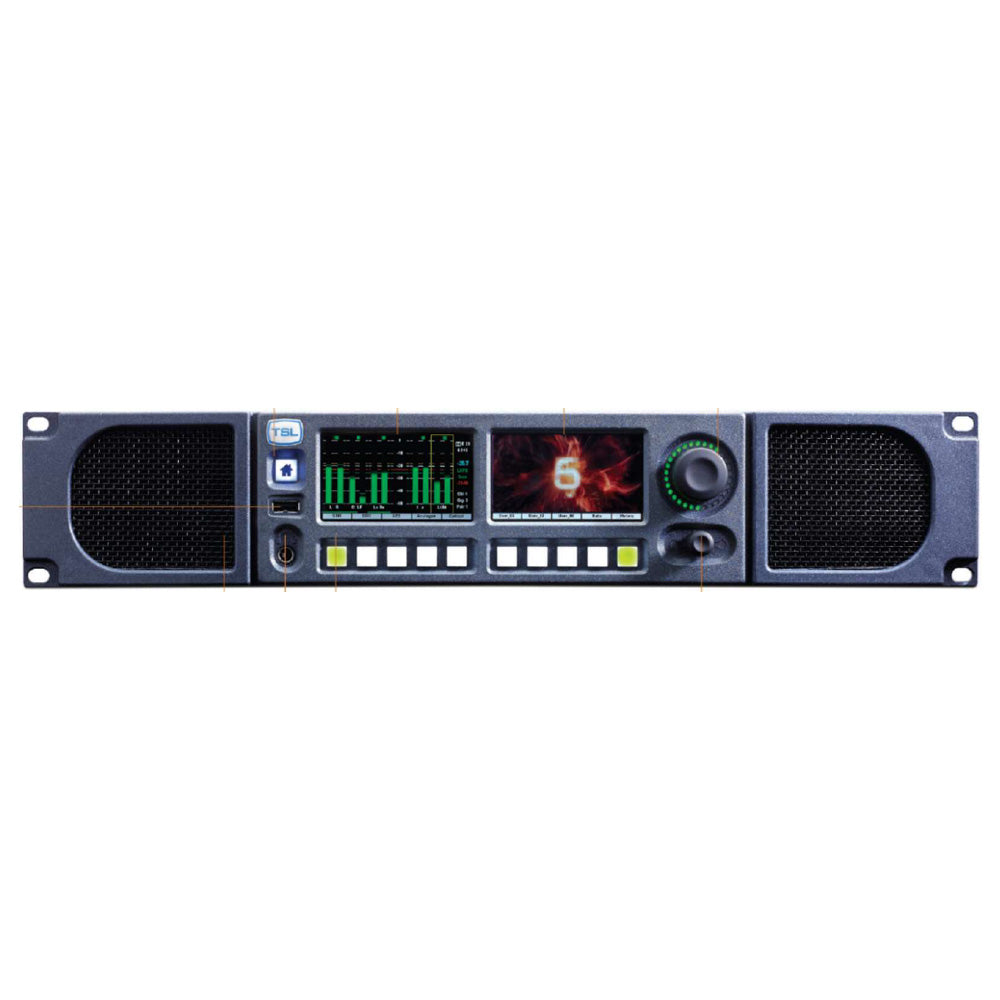

PAM2-IP-3G 2RU Precision Audio Monitor. Includes DOLBY E, DOLBY D and DOLBY DD+ decoding and Monitoring. High quality, fully comprehensive Audio Monitoring Solution ideal for monitoring both compressed and uncompressed audio sources.

Developed specifically to address the requirements of customers needing to monitor uncompressed SMPTE 2110 and SMPTE 2022-6 sources, the PAM-IP Range is equipped with 2 x 10Gig/E interfaces for direct connection into COTS IP fabrics. Supporting IP control protocols such as NMOS and Ember+ allows for 'In-Band' control of the PAM-IP, offering tight integration with a variety of control systems.

PAM-IP is available in 1RU or 2RU form-factors, and retaining the same front panel user interface and feature set from the already popular PAM-MK2 series means that Engineers and Operators familiar with traditional Audio Monitoring operation can now monitor uncompressed IP sources without having to re-train or adjust their work. In addition to it's IP interfacing the PAM-IP Range includes key monitoring features such as comprehensive loudness monitoring with histogram display, Dolby encoded audio monitoring (including metadata), and a video condence display of both SDI and IP sources.

Audio over IP is also covered, with Primary and Redundant 1Gig/E Dante/AES67 ports, whilst the PAM-IP also maintains 3G/HD/SDSDI, AES and Analogue I/O connectivity, helping customers transition to IP environments with ease.

Features:

• Same feature set and operation as PAM1 MK2.
• Now supports IP Infrastructures whilst maintaining 3G/HD/SD-SDI, AES and Analogue Audio connections
• Now supports Dante Audio over IP (optional extra)
• Monitoring and decoding of Dolby E®, Dolby Digital® and Dolby Digital Plus® (including Metadata)
• Loudness Monitoring – EBU (R128) and ATSC (A85)
• 3G/HD/SD-SDI Video Source Monitoring directly on Front Panel.
• User Programmable Presets
• Remote Control (API and GPI)
• Web-GUI
• Equipped with 2 x 10Gig/E SFP+ ports
• Supports uncompressed ST-2022-6 and ST-2110
• Supports IGMP v3 for Multicast 'join/leave' requests
• Recall of stored Presets also includes Multicast 'join/leave' request
• Equipped with Primary and Secondary 1 Gig/E ports for use on Dante/AES67 Networks
• Fully compatible with Audinate's Dante Controller
• High quality internal full range loudspeaker system
