TSL PD14PMID-20A - Intelligent Power Management Unit (20 Amp)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Featuring 14 individually fused outputs in a compact 19" x 1RU form factor, dual inputs with automatic change-over on input supply loss, and a variety of local and remote control, monitoring and alarm options TSL's intelligent power distribution units provide a robust and reliable power source, and act to minimise system downtime through the quick identification of problems.
With a secure Web interface or SNMP remote management, individual outlets can be switched off from any location to isolate or reboot failed equipment, and huge savings in energy costs can also be made by selectively turning off equipment when not required, for instance, during dark studio periods.
With industry-standard SNMP MIBs, the units support any Data Centre Infrastructure Management monitoring software including TSL's own DCIM product Insite, offering comprehensive dashboards that deliver an intuitive view of the system status.
Additional functions also protect the downstream equipment during power up, for example, sequential start and programmable delayed start by outlet.
This version provides on-board changeover capabilities that will swap the power supply to the backup if the original fails.
Features:
- On-board Changeover functionality
- Secure/Encrypted web browser access (HTTPS)

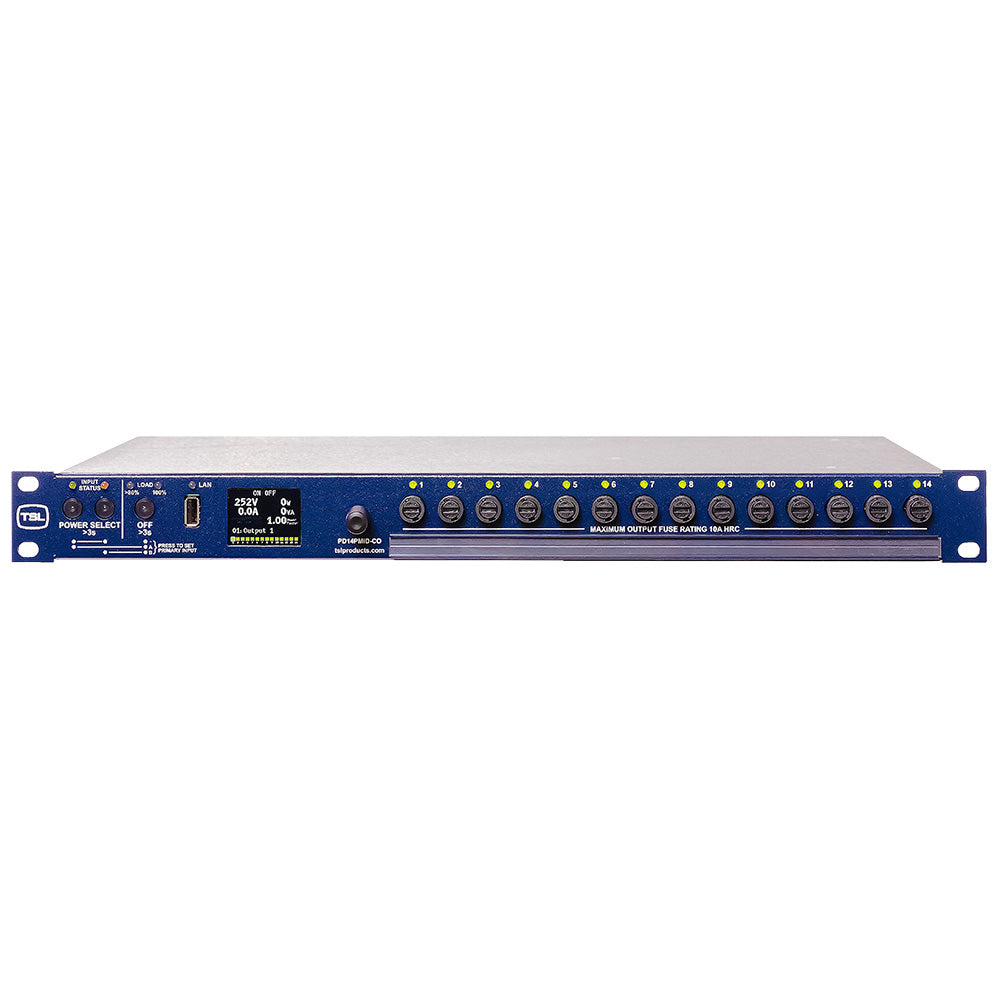

- Always-on front panel colour LCD UI for monitoring and control
- State control of each of the 14 individually fused outputs
- Current, voltage and power factor measurement for each outlet
- Sequential, immediate, or user configured delayed start up
- SNMP / REST API monitoring and alarms (optional control)
| Model ID | PD14PMiD-20A |
| INPUTS | |
| Voltage | 110 / 240 V AC |
| Frequency | 60Hz / 50 Hz |
| Current Rating | 20A |
| Power In Connector(s) | 1x Neutrik powerCON 20A |
| Internal Fuse(s) | 1x 20A (10x38mm hrc ceramic) Note: Units are expected to be protected from over-current condition by upstream circuit breaker. The internal fuses are not intended to be user replaceable. |
| OUTPUTS | |
| Voltage / Frequency | As connected input when active (supply passthrough) |

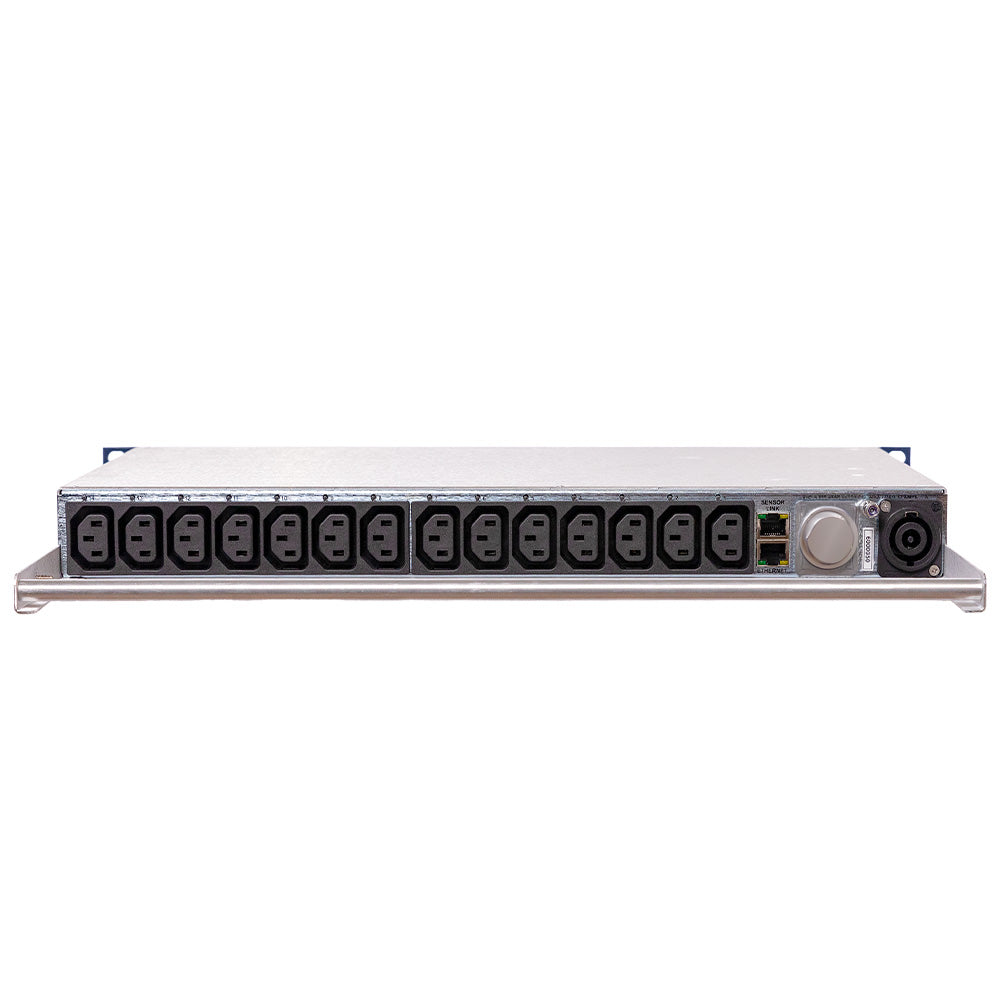

| Power Out Connectors | 14x IEC Type F (C13) |
| Output Fusing | 10A 5x20mm hrc ceramic Each outlet is individually fused Ð Front panel replaceable in bayonet holder. |
| OTHER CONNECTIONS | |
| USB Data | USB Type A connector Used for writing logging and loading of firmware to/from USB storage device |
| Ethernet | 10/100 Ethernet (RJ45 Ð Lower): network communications for WebUI, SNMP, etc. |
| Sensor Link | Multi-purpose connector (RJ45-Upper): 1-Wire for External sensors, RS485 for unit-unit comms (multi-drop), 3x GPI Inputs |
| MECHANICAL | |
| Dimensions | Width: 482.6mm (19.0") (main body width: 445.0mm) Height: 44.4mm (1.8") Depth: 364.0mm (14.3") |
| Weight | 2.5kg (approx.) |
| Colour | TSL Blue (custom) |
| Earth Bonding | M6 bonding stud on rear panel adjacent to inlet connector(s) M6 bonding stud on rear cable support arm (right side). All panels are bonded to primary ground point on chassis top panel (internal) |
| ENVIRONMENTAL | |
| Operating Temperature | 0-30¡C (ambient) |
| Humidity | 0 Ð 95 % RH non-condensing |
Featuring 14 individually fused outputs in a compact 19" x 1RU form factor, dual inputs with automatic change-over on input supply loss, and a variety of local and remote control, monitoring and alarm options TSL's intelligent power distribution units provide a robust and reliable power source, and act to minimise system downtime through the quick identification of problems.
With a secure Web interface or SNMP remote management, individual outlets can be switched off from any location to isolate or reboot failed equipment, and huge savings in energy costs can also be made by selectively turning off equipment when not required, for instance, during dark studio periods.
With industry-standard SNMP MIBs, the units support any Data Centre Infrastructure Management monitoring software including TSL's own DCIM product Insite, offering comprehensive dashboards that deliver an intuitive view of the system status.
Additional functions also protect the downstream equipment during power up, for example, sequential start and programmable delayed start by outlet.
This version provides on-board changeover capabilities that will swap the power supply to the backup if the original fails.
Features:
- On-board Changeover functionality
- Secure/Encrypted web browser access (HTTPS)
- Always-on front panel colour LCD UI for monitoring and control
- State control of each of the 14 individually fused outputs
- Current, voltage and power factor measurement for each outlet
- Sequential, immediate, or user configured delayed start up
- SNMP / REST API monitoring and alarms (optional control)
| Model ID | PD14PMiD-20A |
| INPUTS | |
| Voltage | 110 / 240 V AC |
| Frequency | 60Hz / 50 Hz |
| Current Rating | 20A |
| Power In Connector(s) | 1x Neutrik powerCON 20A |
| Internal Fuse(s) | 1x 20A (10x38mm hrc ceramic) Note: Units are expected to be protected from over-current condition by upstream circuit breaker. The internal fuses are not intended to be user replaceable. |
| OUTPUTS | |
| Voltage / Frequency | As connected input when active (supply passthrough) |
| Power Out Connectors | 14x IEC Type F (C13) |
| Output Fusing | 10A 5x20mm hrc ceramic Each outlet is individually fused Ð Front panel replaceable in bayonet holder. |
| OTHER CONNECTIONS | |
| USB Data | USB Type A connector Used for writing logging and loading of firmware to/from USB storage device |
| Ethernet | 10/100 Ethernet (RJ45 Ð Lower): network communications for WebUI, SNMP, etc. |
| Sensor Link | Multi-purpose connector (RJ45-Upper): 1-Wire for External sensors, RS485 for unit-unit comms (multi-drop), 3x GPI Inputs |
| MECHANICAL | |
| Dimensions | Width: 482.6mm (19.0") (main body width: 445.0mm) Height: 44.4mm (1.8") Depth: 364.0mm (14.3") |
| Weight | 2.5kg (approx.) |
| Colour | TSL Blue (custom) |
| Earth Bonding | M6 bonding stud on rear panel adjacent to inlet connector(s) M6 bonding stud on rear cable support arm (right side). All panels are bonded to primary ground point on chassis top panel (internal) |
| ENVIRONMENTAL | |
| Operating Temperature | 0-30¡C (ambient) |
| Humidity | 0 Ð 95 % RH non-condensing |
