TSL PDU14C-20A - Power Management Unit (20 Amp)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Building on a long history of supplying reliable rack power products, TSL's essential power distribution family delivers high quality and reliability by being built to the most exacting standards.
All TSL's essential power products are fitted with resettable overcurrent protection, meaning that they will safely shut down in the case of a catastrophic overload and protect the integrity of the system installation. Compact in size and constructed of steel, the units offer a rigid platform, power bus-bar construction with no crimped cables, offering unrivalled reliability in all applications.
Features:
- 1U 19-inch rack mountable
- Single input power source

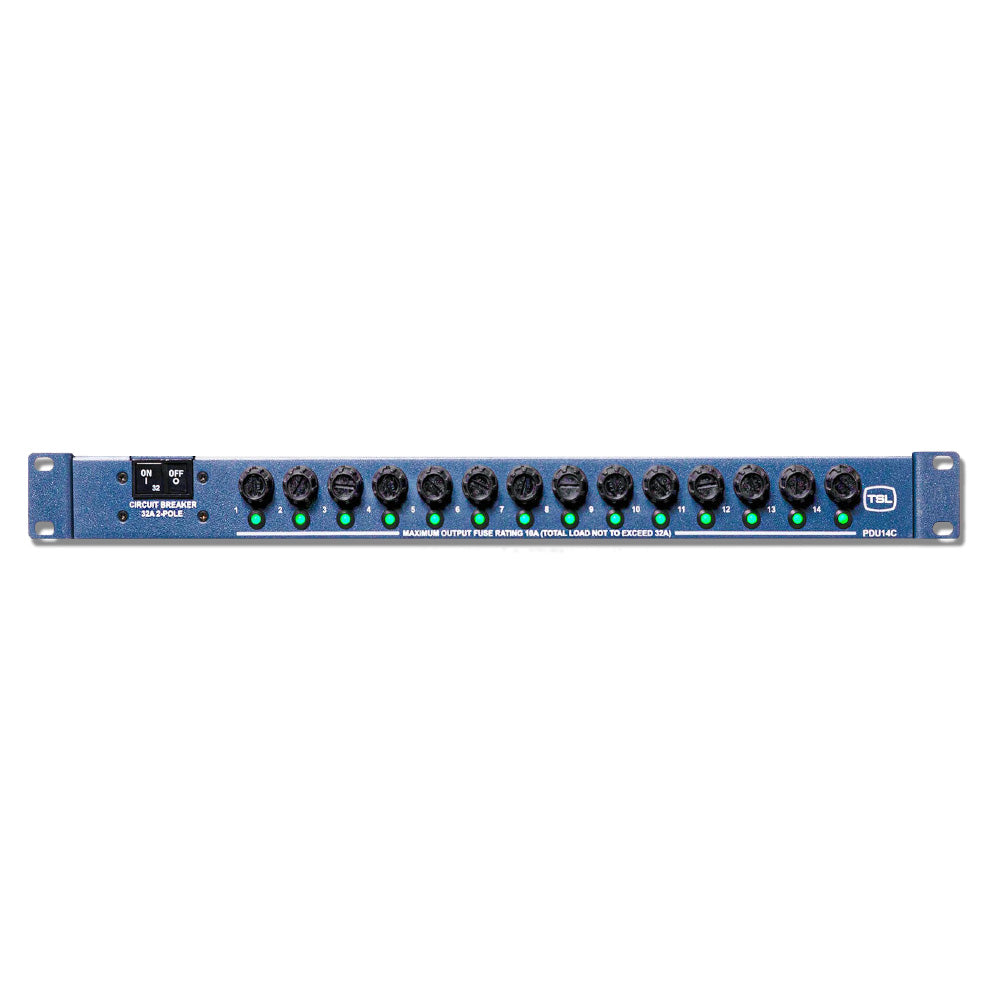

- Front mounted 14 x 10A fuse
- 14 x LED Power Indicator (Green)
- 20A or 32A versions
- Rugged steel construction
- 14 x 10A IEC13
- UL approved 2-Pole, Non-illuminated Black, 20A or
- 32A hydraulic magnetic resettable circuit breaker (switch with an overload trip)
- Accessories: Neutrik or equivalent mains input cable connector, 20A or 32A included
- Depth: 120mm (without tie bar), 220mm (with tie bar)
- CE, ROHS certified
| INPUT VOLTAGE | 1?,110/250VAC |
| FREQUENCY | 50Hz/60Hz (as per supply input) |
| POWER IN SOCKET TYPE | Neutrik powerCON or equivalent power input connector |
| INPUT CURRENT | 20A or 32A |
| OUTPUT VOLTAGE | 1?, 110/250VAC |
| FREQUENCY | 50Hz/60Hz (as per supply input) |

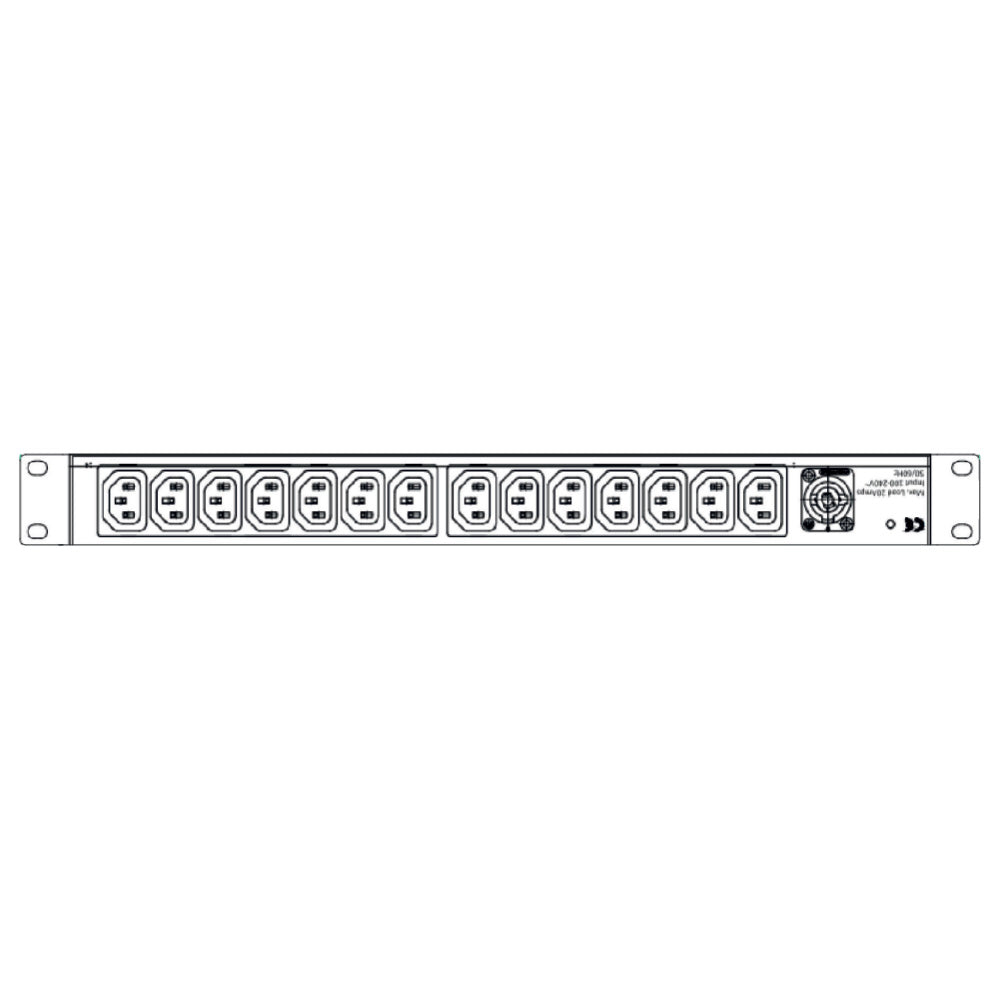

| POWER OUT SOCKET TYPE | IEC C13 outlet (14 nos.) |
| TOTAL OUTPUT CURRENT | 20A or 32A |
| DIMENSIONS (WxHxD) | 482.6mm x 45mm x 120mm |
| OPERATING TEMPERATURE | 0 Ð 45¡C (Extended up to 65¡C) |
| WEIGHT | 1.5kg |
| HUMIDITY | 0 Ð 95 % RH non-condensing |
| MOUNTING | 465mm (input) |
| COMPLIANCE | CE, RoHS |
| COLOUR | Texture Metallic Blue |
