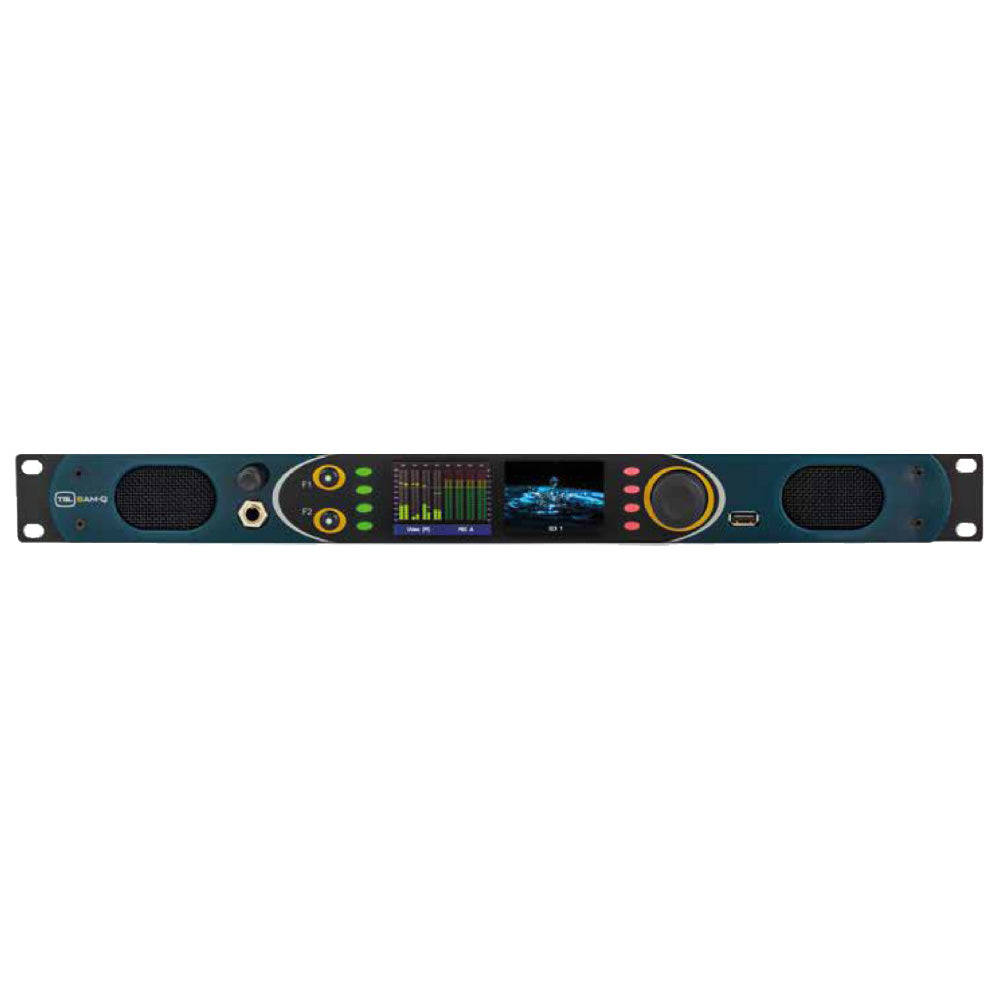

TSL SAM-Q-SDI - 3G HD/SDI Audio Monitor

Built on the SAM-Q platform, the SAM-Q-SDI gives users the freedom to choose how they wish to select and monitor their SDI, MADI, AES and analogue audio sources.

The SAM-Q range of audio monitors are unique in their ability to allow you to tailor their operation to the environment in which they will be used. Supporting a number of operational modes which can be enabled and disabled as required, the SAM-Q is equally at home in operational positions in studio facilities to OB trucks, master control positions and playout facilities. With the optional MADI license the SAM-Q-SDI can monitor up to 128 MADI channels, whilst the optional loudness license enables local and remote loudness monitoring of up to 8 independent programs.

Features:

• Multiple operational modes allow you to determine how you wish to control and visualise your audio content based on personal preference or application
• Designed to serve all levels of user, regardless of their audio knowledge or experience
• Up to 8 independent mixes provide instant recall of routing configurations, providing maximum coverage of input sources when required
• Optional MADI license enables 128 channels of MADI audio monitoring
• Optional loudness license enables 8 independent loudness probes and remote loudness monitoring
• HDMI output for external video display

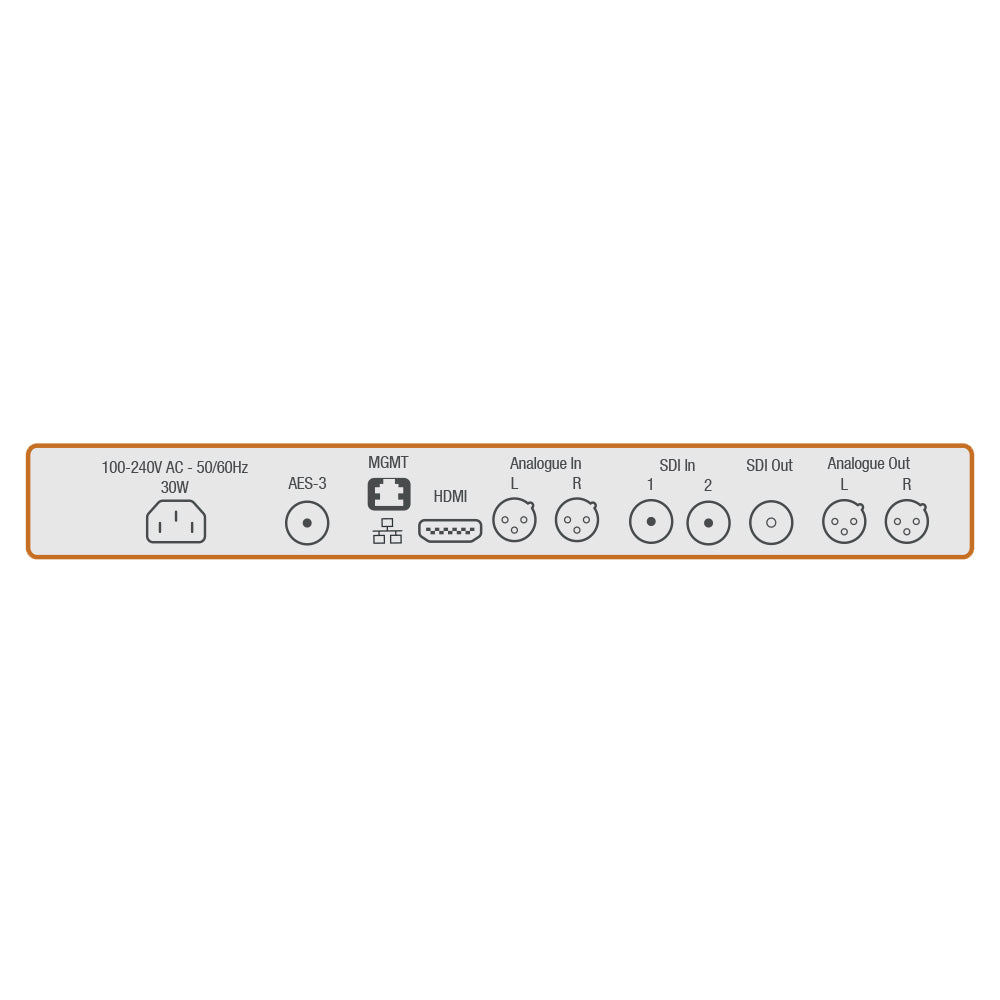

Connections:

• 2 x autosensing SD/HD/3G-SDI Inputs
• 1 x AES3id Input
• 2 x Balanced Analogue Inputs
• 1 x Ethernet Management and Control Port
• 1 x Re-clocked SD/HD/3G-SDI Output
• 1x HDMI Output (with Embedded Audio)
• 2 x Balanced Analogue Outputs
• 1 x Headphone Output
• 1 x USB Port
