Description

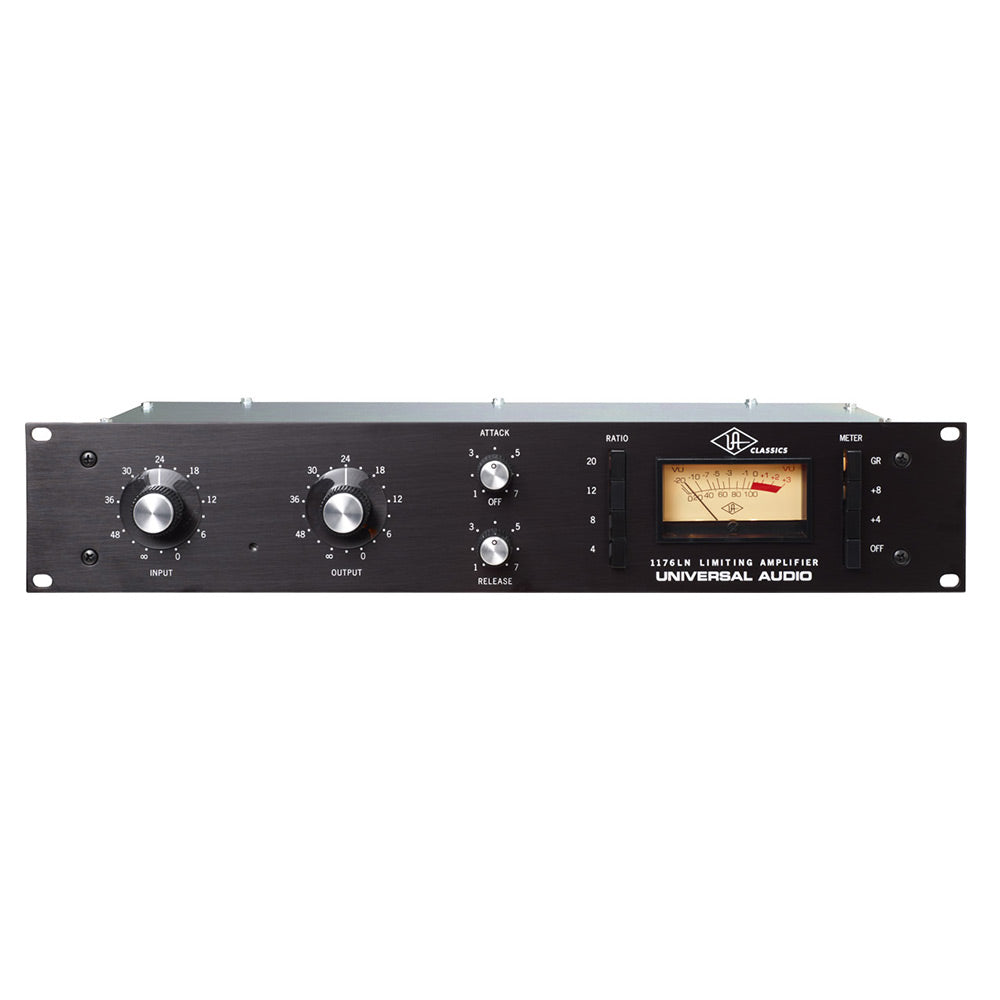

The 1176LN Classic Limiting Amplifier is a modern reproduction, yet every effort was made to remain faithful to UA founder Bill Putnam Sr.'s visionary design and intentions. The original UA 1176LN was a major breakthrough in limiter technology - the first true peak limiter with all transistor circuitry offering superior performance with a signature sound - and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176LN - Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that's continued to grow, for nearly 50 years.
Features:
- True to the original in design, manufacturing and performance
- Modeled after 1176LN, blackface, D and E revisions
- Ultra fast attack time -20 microseconds to 800 microseconds
- Class A line level output amplifier
- Custom built Putnam-designed output transformer
- Stereo interconnect operation
- Hand-built in USA; backed by 1-year limited warranty
Input Impedance | 600 ohms, bridges-T control (floating) |
Output Load Impedance | 600 ohms, floating, damping factor 20 |
External Connections | Jones Barrier terminals and XLR connectors |
Frequency Response | ± 1 dB 20 Hz to 20kHz |
Gain | 50 dB |
Distortion | Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting |
Signal to Noise Ratio | Greater than 70 dB at +10 dBm |
Attack Time | 20 microseconds to 800 microseconds |
Release Time | 50 milliseconds to 1.1 seconds |
Stereo Interconnection | via 1176 SA Network accessory |
Meter | dB gain reduction and dB output |
Power Requirements | 120/240 V |
Environmental | Maximum operating temperature 160¡F |
Dimensions | 19" Rackmount chassis, 2U |
Weight (unboxed) | 11 lbs. |
The 1176LN Classic Limiting Amplifier is a modern reproduction, yet every effort was made to remain faithful to UA founder Bill Putnam Sr.'s visionary design and intentions. The original UA 1176LN was a major breakthrough in limiter technology - the first true peak limiter with all transistor circuitry offering superior performance with a signature sound - and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176LN - Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that's continued to grow, for nearly 50 years.
Features:
- True to the original in design, manufacturing and performance
- Modeled after 1176LN, blackface, D and E revisions
- Ultra fast attack time -20 microseconds to 800 microseconds
- Class A line level output amplifier
- Custom built Putnam-designed output transformer
- Stereo interconnect operation
- Hand-built in USA; backed by 1-year limited warranty
Input Impedance | 600 ohms, bridges-T control (floating) |
Output Load Impedance | 600 ohms, floating, damping factor 20 |
External Connections | Jones Barrier terminals and XLR connectors |
Frequency Response | ± 1 dB 20 Hz to 20kHz |
Gain | 50 dB |
Distortion | Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting |
Signal to Noise Ratio | Greater than 70 dB at +10 dBm |
Attack Time | 20 microseconds to 800 microseconds |
Release Time | 50 milliseconds to 1.1 seconds |
Stereo Interconnection | via 1176 SA Network accessory |
Meter | dB gain reduction and dB output |
Power Requirements | 120/240 V |
Environmental | Maximum operating temperature 160¡F |
Dimensions | 19" Rackmount chassis, 2U |
Weight (unboxed) | 11 lbs. |
