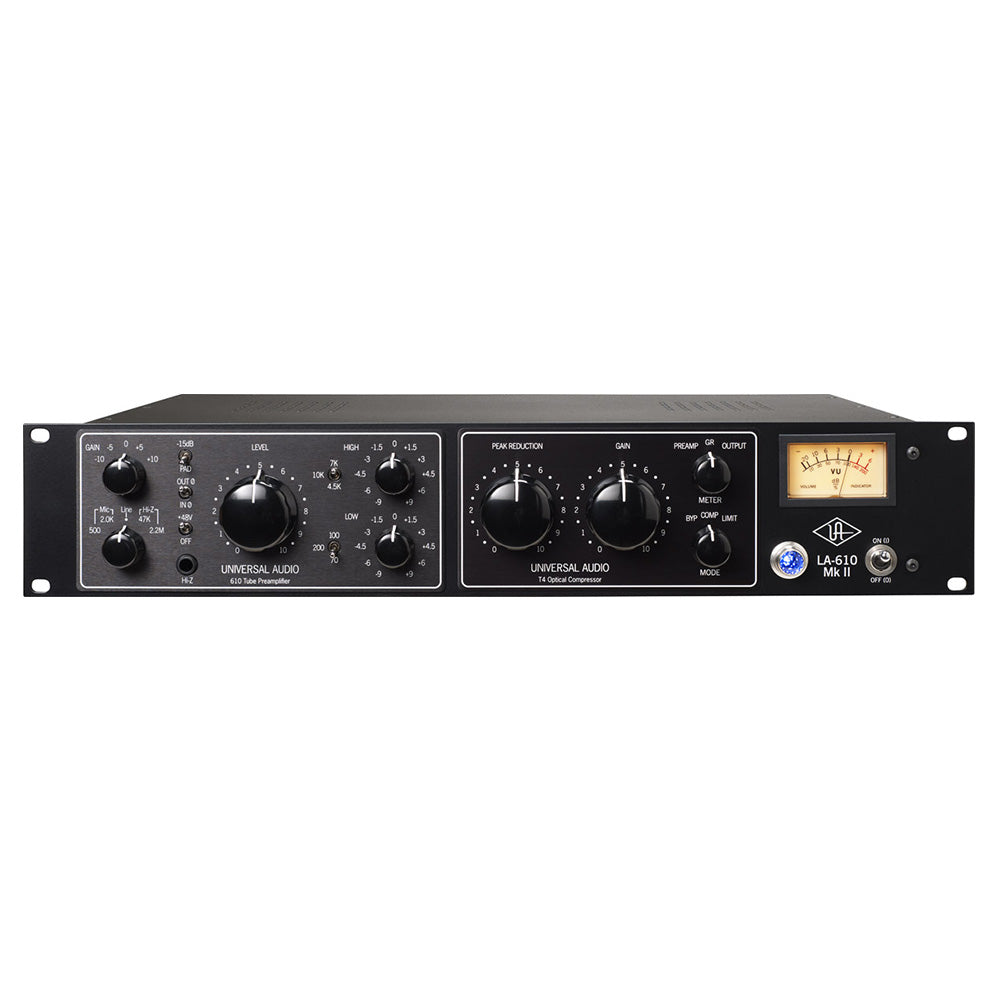

Universal Audio LA-610 MKII Recording Channel Tube Preamp with EQ and Compressor



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:UNAU-LA610

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The LA-610 MkII combines an all-tube, vintage mic preamp design — heard on classic albums ranging from The Beach Boys' Pet Sounds to Van Halen I — with authentic Teletronix T4 opto-compression circuitry. This classic channel strip design, with its warm preamp tone and smooth, natural-sounding compression, is updated with modern, user-requested features like true compressor bypass, larger metering, increased output, and an auto-switching power supply.

    Features
    • All-tube mic preamp design derived from legendary Bill Putnam-designed 610 modular console
    • Authentic Teletronix LA-2A-style T4 opto-compressor section
    • MkII exclusive features include: true compressor bypass, larger metering, increased output, and auto-switching power supply
    • Mic pre with Gain and Level controls, variable impedance switching, and instrument DI for recording tone “color”
    • High and Low frequency shelving EQ
    • Complete vintage channel strip at groundbreaking price within project studio reach
    • UA build quality and heritage, audiophile components, hand-assembled in the USA
    • Backed by 1-Year limited warranty

    The LA-610 MkII also boasts much lower noise specs versus vintage models. Elegant and highly popular “Black on Black” cosmetics complete the package. For the serious project studio looking to get the UA sonic experience, the LA-610 MkII offers tone, quality and character at an accessible price. The LA-610 MkII is based on the legendary console modules developed by Bill Putnam in the 60's. Noted for their musical character and warmth, innumerous classics by artists ranging from Sinatra to Van Halen have been recorded using these preamps. After the preamp section, the LA-610 MkII offers the T4 optical compressor. The simple operation and program-dependent nature of the LA-610 T4 compressor provides the same extremely musical control that has made the LA-2A such a well-loved classic for more than 40 years. The electro-optical detector, or "T4 cell,” is the heart and soul of the Teletronix LA-2A. Its unique combination of electroluminescent panel and photo-resistors are the crucial circuit components, giving the compressor its signature sound. In use, the LA-610 MkII packs tremendous sonic versatility and is an ideal front-end for tracking with modern DAWs.

  • Microphone (selectable) 500 ohms or 2K ohms
    Input Impedance Balanced Line – 3.8K ohms
    Hi-Z (selectable) 2.2 Meg ohms or 47K ohms
    Vacuum Tubes (1) 12AX7A and (1) 12AT7 per channel
    Power Requirements 115/230 volts
    Weight 11.75 lbs
    Dimensions 19 Rackmount chassis, 2U
