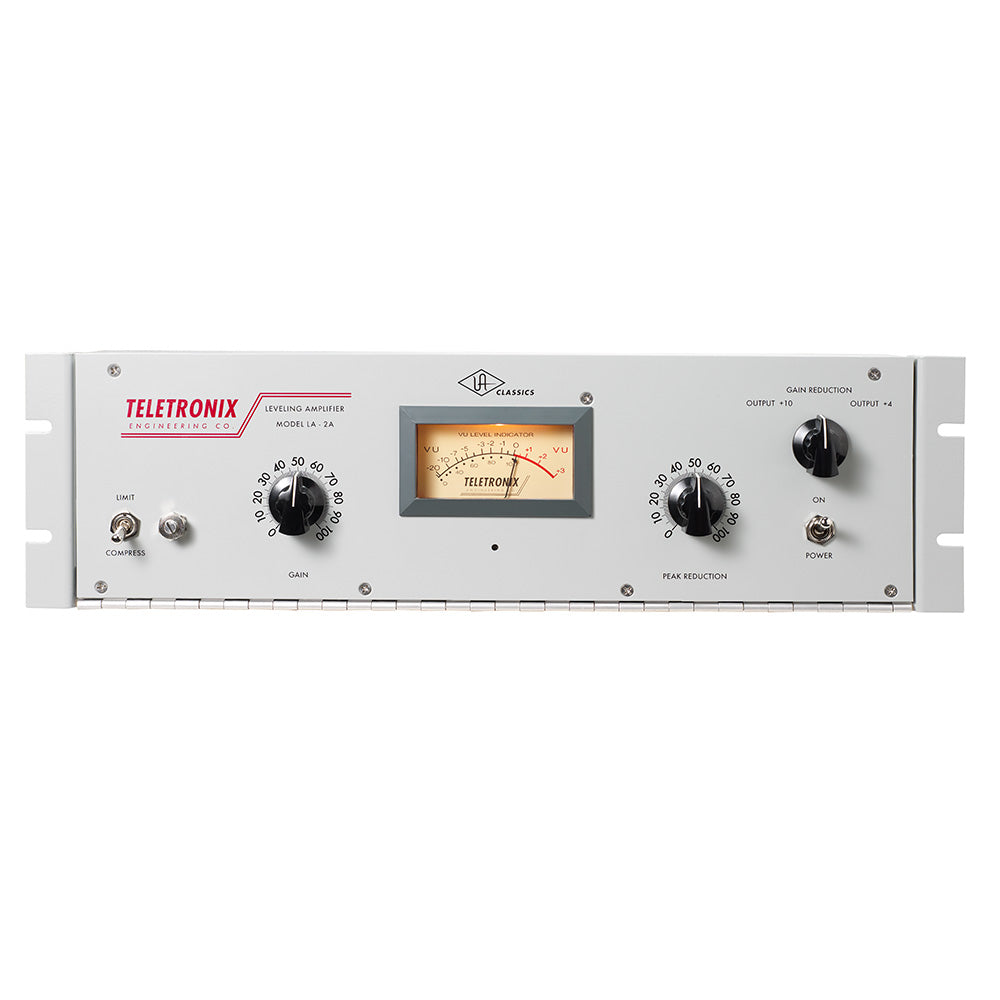

Universal Audio Teletronix LA-2A Optical Tube Compressor Leveling Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Audio professionals passionate about their compressors revere the LA-2A. The original was immediately acknowledged for its natural compression characteristics. A unique electro-optical attenuator system allows instantaneous gain reduction with no increase in harmonic distortion – an accomplishment at the time, still appreciated today.
Features- True to the original in design, manufacturing and performance
- Lag free, distortion free optical attenuator system
- Distortion less than 0.5% THD
- 0 to 40 dB gain limiting
- Balanced stereo interconnection
- Frequency response 1 dB, 30 to 15,000 cps
- Output level of 10 dBm and 40 dB gain
- Low noise – less than 70 dB below ±10 dBm output
Universal Audio now announces the rebirth of the Teletronix LA-2A, a Universal Audio Classics product. Painstaking care has been taken to ensure that every new LA-2A provides the performance and characteristics of the original. Each unit is hand built, each component carefully evaluated for authenticity. No expense has been spared to guarantee that this LA-2A will bring that classic sound to your recording. Demand the original. Accept no copy.
| Input Impedance | 50, 150, 250, 600 ohms |
| Output Load Impedance | 50, 150, 250, 600 ohms |
| External Connections | Jones Barrier terminals and XLR connectors |
| Frequency Response | +0/-1 dB 30 Hz to 15kHz |
| Gain | 40 dB ±1dB |
| Input Level | +16 dB maximum |
| Output Level | +10 dB nominal, +16 dB maximum |
| Distortion | Less than 0.5% THD (0.25% typical) at ±10 dBm |
| Noise | 70 dB below +10 dBm output level |
| Attack Time | 10 milliseconds |
| Release Time | 0.06 seconds for 50% release 0.5 to 5 seconds for complete release |
| Meter | dB gain reduction and dB output |
| Power Requirements | 35 watts, 120/240 volts, 50/60 Hz |
| Environmental | Maximum operating temperature 160¡F |
| Dimensions | 19 Rackmount chassis, 3U |
| Weight | 13 lbs |
Audio professionals passionate about their compressors revere the LA-2A. The original was immediately acknowledged for its natural compression characteristics. A unique electro-optical attenuator system allows instantaneous gain reduction with no increase in harmonic distortion – an accomplishment at the time, still appreciated today.
Features- True to the original in design, manufacturing and performance
- Lag free, distortion free optical attenuator system
- Distortion less than 0.5% THD
- 0 to 40 dB gain limiting
- Balanced stereo interconnection
- Frequency response 1 dB, 30 to 15,000 cps
- Output level of 10 dBm and 40 dB gain
- Low noise – less than 70 dB below ±10 dBm output
Universal Audio now announces the rebirth of the Teletronix LA-2A, a Universal Audio Classics product. Painstaking care has been taken to ensure that every new LA-2A provides the performance and characteristics of the original. Each unit is hand built, each component carefully evaluated for authenticity. No expense has been spared to guarantee that this LA-2A will bring that classic sound to your recording. Demand the original. Accept no copy.
| Input Impedance | 50, 150, 250, 600 ohms |
| Output Load Impedance | 50, 150, 250, 600 ohms |
| External Connections | Jones Barrier terminals and XLR connectors |
| Frequency Response | +0/-1 dB 30 Hz to 15kHz |
| Gain | 40 dB ±1dB |
| Input Level | +16 dB maximum |
| Output Level | +10 dB nominal, +16 dB maximum |
| Distortion | Less than 0.5% THD (0.25% typical) at ±10 dBm |
| Noise | 70 dB below +10 dBm output level |
| Attack Time | 10 milliseconds |
| Release Time | 0.06 seconds for 50% release 0.5 to 5 seconds for complete release |
| Meter | dB gain reduction and dB output |
| Power Requirements | 35 watts, 120/240 volts, 50/60 Hz |
| Environmental | Maximum operating temperature 160¡F |
| Dimensions | 19 Rackmount chassis, 3U |
| Weight | 13 lbs |
