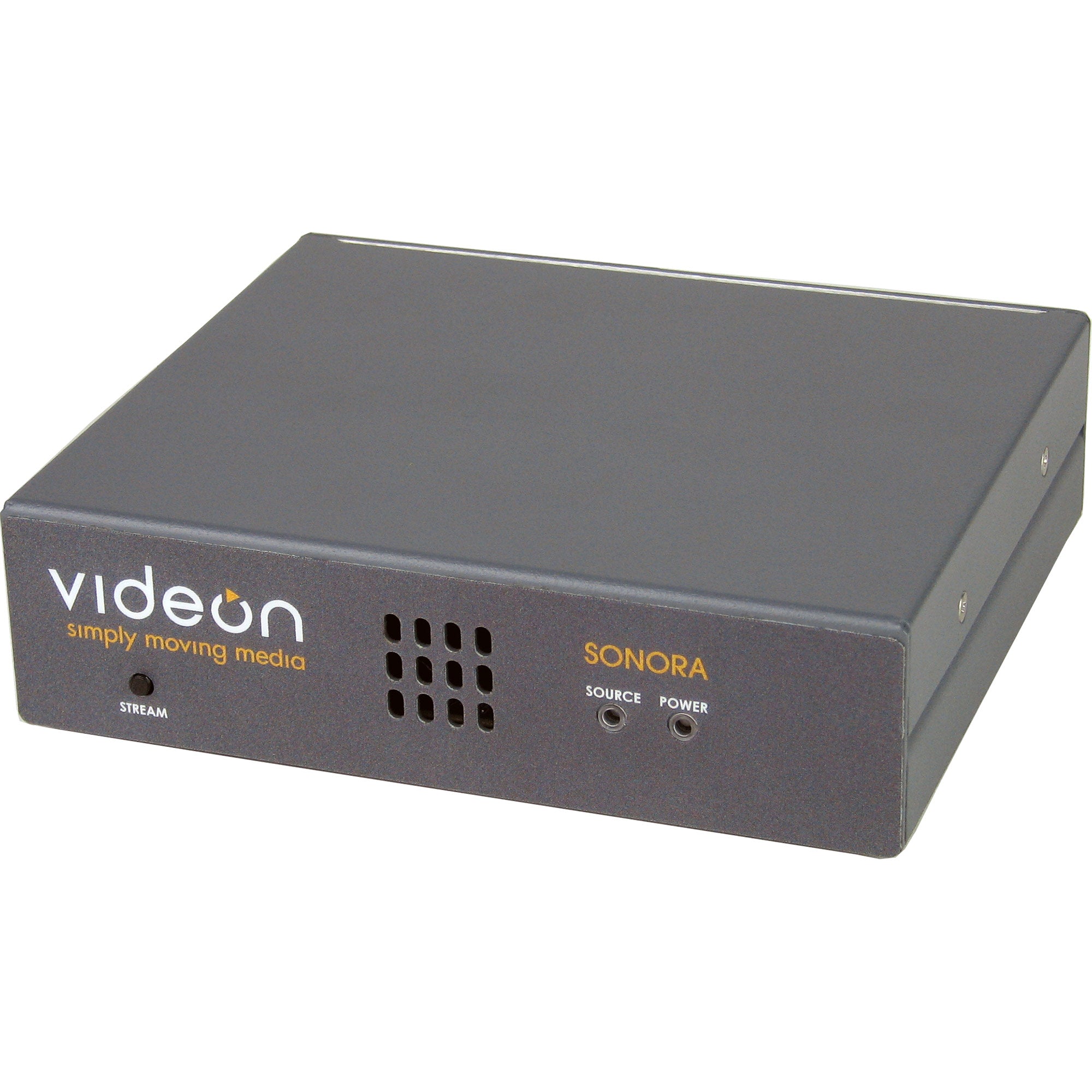

Videon Sonora - Video Encoder/Decoder and Streaming Interface - B-Stock

  • Dale #:

    VIDE-10004282BSTK
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Condition: B-Stock
This item was used in our demo room and is in excellent condition.

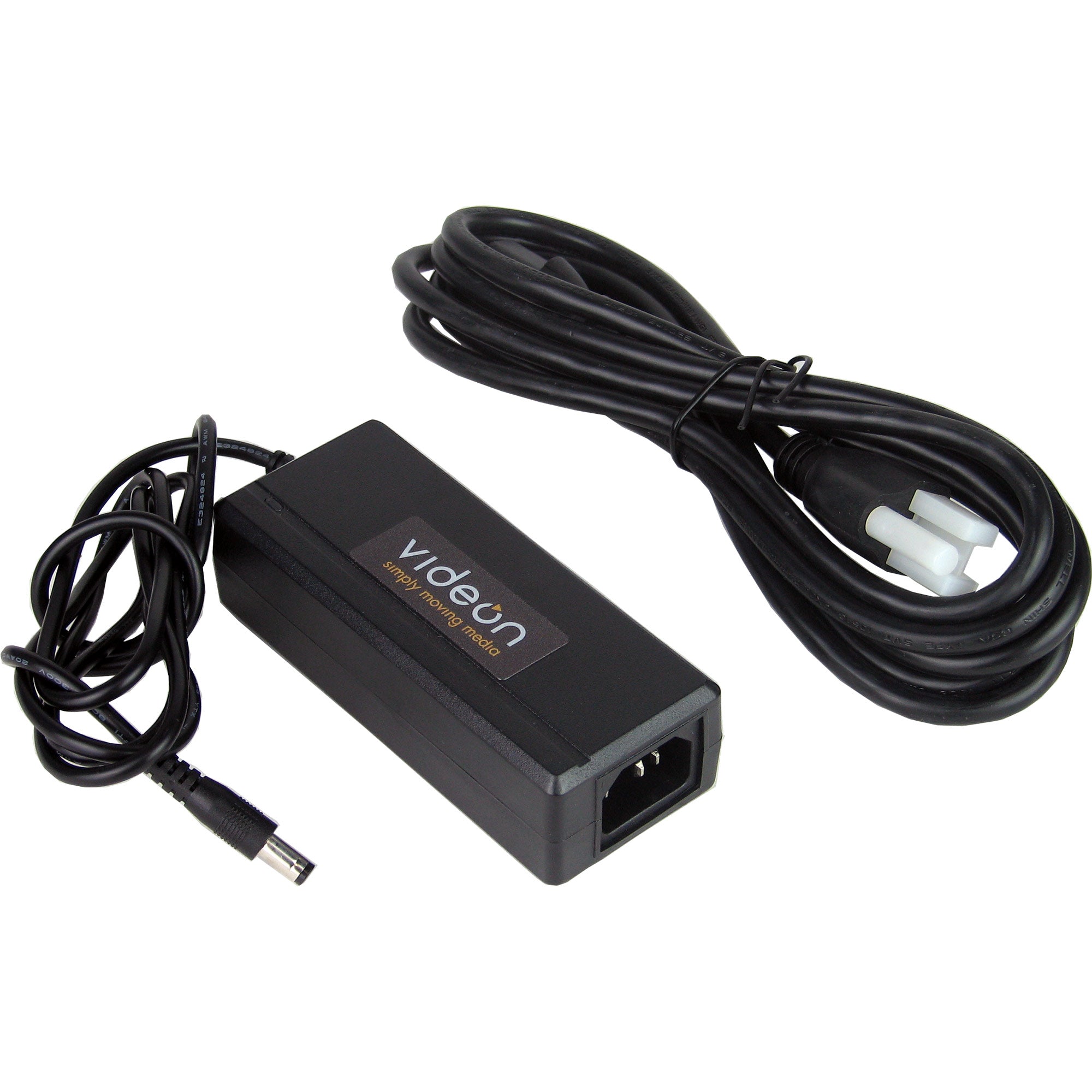

Power supply is included. Does not ship in the original box.

Description

Sonora encodes an HDMI source using H.264 compression. Don’t let Sonora’s market leading price fool you, this is a professional video encoder with all of the features you would expect in a much higher priced unit, it has all the power to simultaneously stream to many different destinations includ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Sonora encodes an HDMI source using H.264 compression. Don’t let Sonora’s market leading price fool you, this is a professional video encoder with all of the features you would expect in a much higher priced unit, it has all the power to simultaneously stream to many different destinations including:

Features:

  • Point-to-point on an internal network
  • Point-to-point over the WAN
  • Multicast on a local network
  • To a decoder located on a different network
  • To a variety of online video platforms


Professional Reliability At A Consumer Price
Make no mistake about it, Sonora is professional grade. Designed to be the most reliable encoder you have ever used, Sonora is at home in professional video production studios.

Stream Wherever You Want
All of Videon’s live streaming encoders integrate with the biggest online video platforms on the market today. Additionally all of our encoders can stream to local destinations making them perfect for both local and broadcast video distribution.

Streaming Made Simple
When you use Sonora with select online video platforms you can schedule the start and end times of your streams. That means you don’t have to do anything, Sonora starts and stops streams automatically.

Encode and Decode
Sonora is an encoder AND a decoder. One Sonora (setup as an encoder) can stream directly to another Sonora (setup as a decoder) either on a local network or over the public internet.

More +

Product Specs

Video Encoding/Decoding
Dual Core 1.2GHz Intel® AtomTM Processor
Input Resolutions
1080i60, i59.94, i50, p60, p59.94, p30, p29.97, p25; 720p60, p59.94, p50
Encode Resolutions
1080i60, i59.94, i50, p30, p29.97, p25; 720p60, p59.94, p50
Output Resolutions
1080i60, i59.94, i50, p60, p59.94, p50, p30, p29.97, p24, p23.98; 720p60, p59.94, p50; 576i50, p50; 480i59.94, p59.94
Compression: H.264, Baseline, Main, High
Bit rates: 250kbps-20Mbps; Rate control: Variable, Constant
Encode latency ~1sec; Decode latency ~250ms
Audio Encoding/Decoding
Encode: MPEG-4 AAC-LC in ADTS 64-320kbps; Decode: MPEG-1- Layer 2, MPEG-2/MPEG-4 AAC in ADTS/LOAS
Encode Sampling Freq: 32, 44.1, 48KHz; Decode: 48 KHz
General
+12V Input; under 15 Watts total
Dimensions: 1.75” x 6.54” x 6.2”
Action Button to start/stop RTMP encoding and for Factory Reset

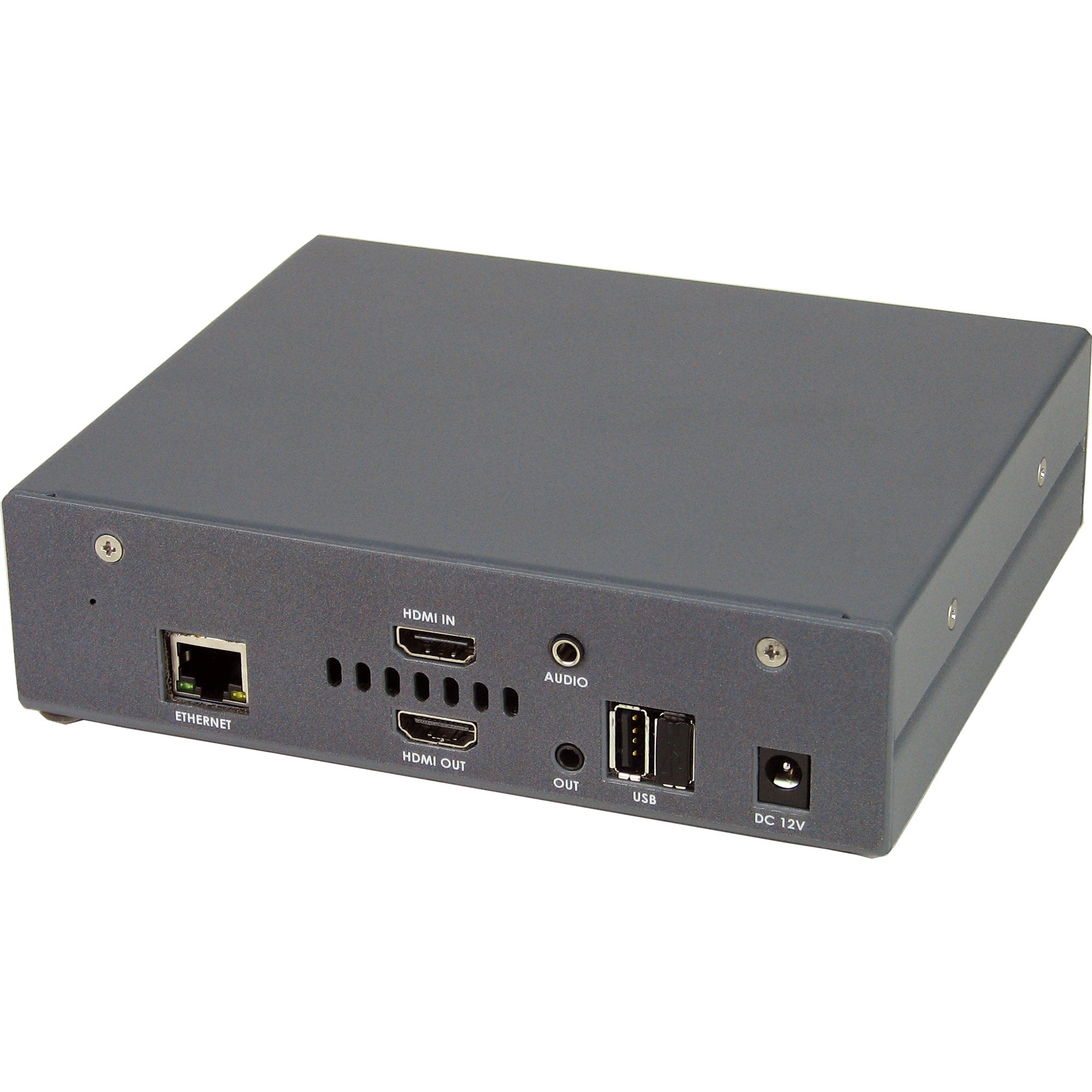

I/O
Video: HDMI v1.4a input and output
2 USB 2.0 connectors
Audio embedded in HDMI
3.5mm Analog Audio input
10/100/1000 Ethernet (RJ-45)
Streaming Capabilities
Unicast and Multicast
WowzaTM, UStream, YouTube Live, DaCast
RTMP
RTP over UDP, Raw UDP
Up to 2x Unicast and 1x Multicast simultaneous channel output
Network and Control
REST API integrates with third-party controllers and applications
Full-featured web browser based UI
Designed for tablets and desktops
Encoder and decoder configuration for unicast, multicast and RTMP
DHCP (Default) / Static IP Address
Command and Control: HTTP
Auto-detect and discover other Videon encoder and decoder units on subnet
