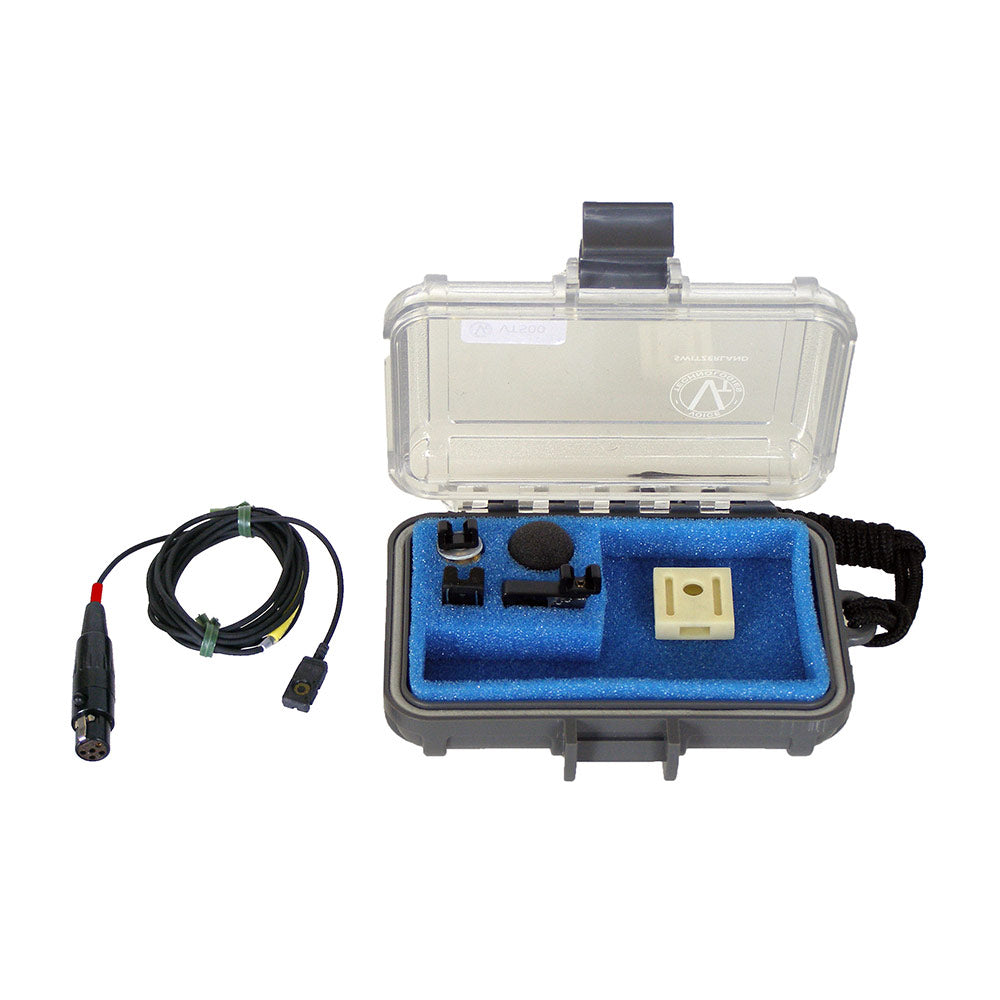

Voice Technologies VT506WATER Omni Lavalier Microphone (Black/Biased TA5F)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Terminated with a TA5F connector, for compatibility with wireless systems such as servo-biased Lectrosonics.
The VT506WATER is a waterproof version (IPX-7 certificated) of the VT506 lavalier microphone. Due to a special molding injection treatment the microphone can even be temporarily situated completely under water, without taking any damage. This enables a special flexible use in broadcast and live area or even at sports events. In addition the microphone is rugged and shockproof. Voice Technologies counts also on an especially flexible cable, which has excellent isolation from handling noise.
Applications:
- Broadcast and live area
- Sport events
| Generating Element | Electret Condenser |
| Polar pattern | Omni-Directional |
| Frequency Range | 40Hz - 20kHz |
| Sensitivity | -60dB ±3dB re 1V/microbar (10mV/Pa) |
| Noise Level | 26dB ÒAÓ weighted |
| Max. Input SPL | 118dB |
| Impedance | 3 kOhm |
| Bias/+VDC | 1.3V (0.9-20V) |
| Current drain | 25 A |
| Colors | black / beige |
| Microphone dimensions | 13x7x3,5mm |
| Cable | Length 1.5m, beige 1.8m ¯ 1.5mm |
| Weight | 7 g |
Terminated with a TA5F connector, for compatibility with wireless systems such as servo-biased Lectrosonics.
The VT506WATER is a waterproof version (IPX-7 certificated) of the VT506 lavalier microphone. Due to a special molding injection treatment the microphone can even be temporarily situated completely under water, without taking any damage. This enables a special flexible use in broadcast and live area or even at sports events. In addition the microphone is rugged and shockproof. Voice Technologies counts also on an especially flexible cable, which has excellent isolation from handling noise.
Applications:
- Broadcast and live area
- Sport events
| Generating Element | Electret Condenser |
| Polar pattern | Omni-Directional |
| Frequency Range | 40Hz - 20kHz |
| Sensitivity | -60dB ±3dB re 1V/microbar (10mV/Pa) |
| Noise Level | 26dB ÒAÓ weighted |
| Max. Input SPL | 118dB |
| Impedance | 3 kOhm |
| Bias/+VDC | 1.3V (0.9-20V) |
| Current drain | 25 A |
| Colors | black / beige |
| Microphone dimensions | 13x7x3,5mm |
| Cable | Length 1.5m, beige 1.8m ¯ 1.5mm |
| Weight | 7 g |
