DALE SKU # VAUD-VASAM1USB

Voyage Audio VA-SAM-1-USB Spatial Mic USB - Immersive Microphone Kit

Sale price$999.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Spatial Mic lets you focus on recording immersive audio for VR, ATMOS, spatial music, concert recording, live broadcasts and much more. Want to use it in traditional stereo session? No Problem – the included software makes it easy to decode to stereo and aim virtual mics around the soundfield. No need for expensive multi-microphone or preamp setups – just plug-in and record with either Dante audio networking or USB/ADAT models.

    Features:

    • USB Streaming up to 24-bit / 96 kHz
    • ADAT Light-Pipe up to 24-bit / 48 kHz
    • Live Binaural headphone playback
    • USB Bus powered or external 5v
    • Texas Instruments analog front end, ADC and DAC
    • Spatial Mic Control app for configuration over USB

    What's In The Box:

    • Spatial Mic USB
    • ¼-20 to ⅝ mini swivel ball hard-mount
    • Foam windscreen
    • For Download:
      • Spatial Mic Converter VST3® plugin (macOS / Windows), AU  (Audio Unit for macOS) and AAX (macOS / Windows)
      • MicNet Control app (macOS / Windows)
      • User Manual


    360º Creativity

    From studio to field, live concerts and the latest XR applications, your next adventure begins with Spatial Mic.

    Future Proof Immersive Production
    Record audio for evolving formats in VR/AR and leverage Dante audio networking to create 6 Degree Of Freedom experiences with multiple Spatial Mics.

    Portability Redefined
    Low noise and high SPL handling with single wire connectivity provides the freedom to leave bulky gear at home — even in the most demanding environments.

    Critical Recording Flexibility
    Spatial Mic transforms audio capture in the recording studio with unmatched control, versatility, quality and unique connectivity options to compliment your setup.

    Broadcast / Live Concerts
    Capture or live stream mono, stereo or multichannel audio feeds for sporting events, concerts, television, YouTube 360, Facebook 360 and more.

    Expand Your Vision
    Open new markets for your business and deliver content to Dolby Atmos, ambisonics or explore the sound field in mono, stereo X/Y, Blumlein or any format you would normally use for your production.

    Test / Measurement
    Use Spatial Mic to record and playback Impulse Responses in an acoustic space, view hotspots and sound reflections or explore new ways to interact with sound.

    Designed For Innovative Recording
    Spatial Mic is crafted to bring your recordings to life in the most realistic way possible. More than simply a microphone – analog and digital electronics work together with software components to create incredibly engaging audio.

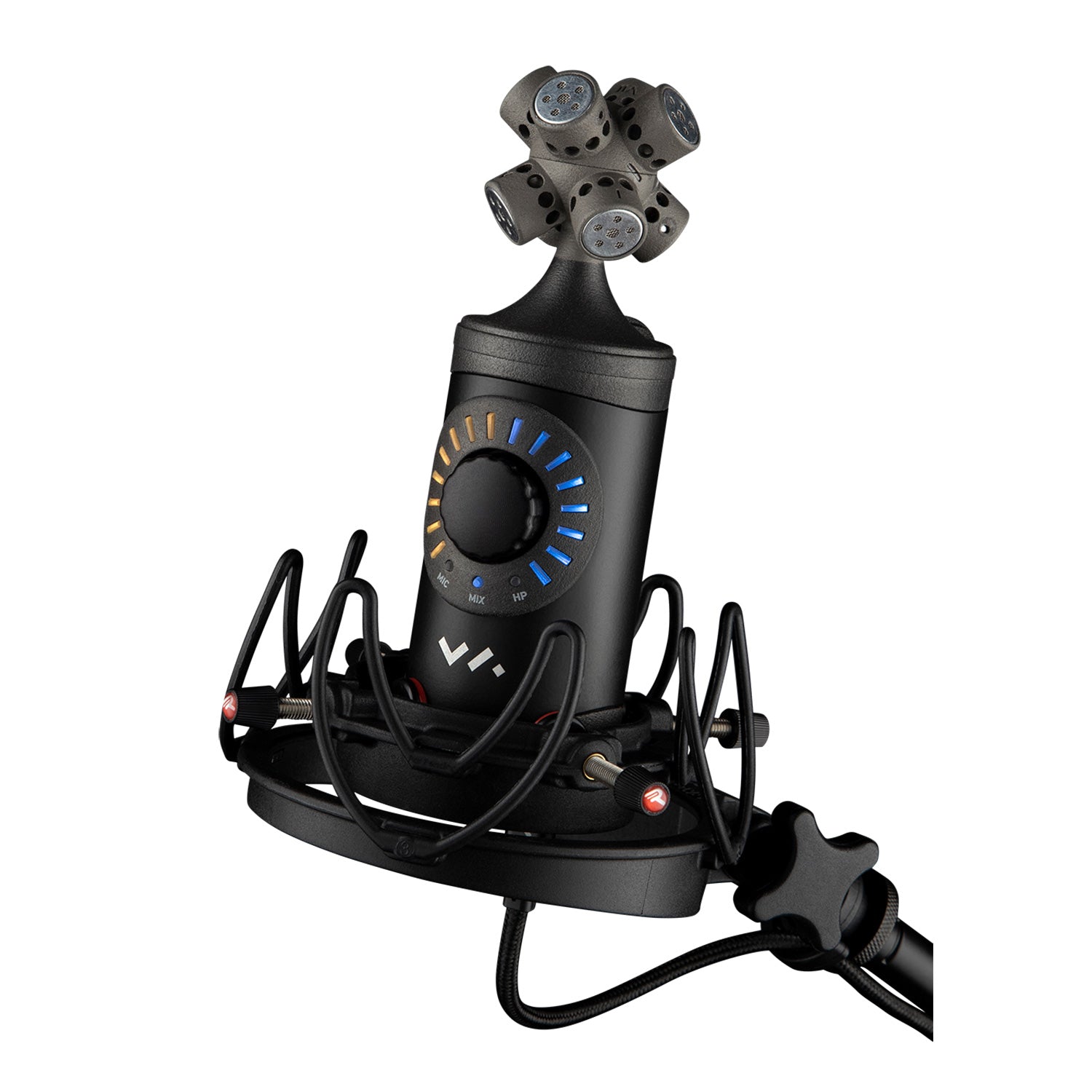

    8 Capsule Spatial Audio Capture
    High spatial resolution made possible with 8 analog capsules for 2nd Order Ambisonics.

    High Performance Audio Design
    Professional grade analog to digital conversion, high resolution Skyworks clocking scheme and built-in 32-bit XMOS Processor.

    Individual Calibration
    Each microphone is individually calibrated prior to shipping for quick recording with a balanced array.

    Complete Soundfield Control
    The Spatial Mic Converter plugin (AAX, Audio Unit or VST3) transforms the raw unprocessed audio signals from Spatial Mic USB and Dante to a number of different formats suitable for any type of audio production and opens advanced features like the ability to aim virtual mics in 360º.

    Output Options
    Spatial Mic in Anechoic ChamberSpatial Mic employs the concept of Ambisonics to transform the raw signals from the capsule array to a format suitable for audio production.

    The included software takes the guesswork out of this, letting you concentrate on your recordings. It’s as simple as setting the output to your desired format – mono, stereo, surround sound or even Ambisonics! Ambisonics enables audio reproduction on any number of speakers in varying configurations. To accomplish this, Spatial Mic Converter uses an internal 64-channel filter matrix and measurements from an anechoic chamber.

    Spatial Record App
    The Spatial Record App is a user-friendly, multichannel recording tool designed for iOS, macOS and Windows. Use it to effortlessly record multichannel audio files up to 24-bit / 96 kHz from Spatial Mic USB to devices like iPhones, iPads and laptops. Spatial Mic Dante can also be recorded with the help of Dante Virtual Soundcard or other Dante interface. Audio files are saved as multichannel .wav files, which can then be easily imported into your DAW of choice for conversion with the Spatial Mic Converter plugin.

    Using the Spatial Record App alongside Spatial Mic USB offers a complete solution for capturing higher-order ambisonics wherever your travels may take you. The app’s intuitive design ensures quick setup, so you don’t miss out on critical recordings. Additionally, Spatial Record features a DSP mode for binaural playback (for files recorded with Spatial Mic), file browser and live monitoring.

    Spatial Mic Control App
    The Spatial Mic Control app provides remote manipulation of various hardware parameters on Spatial Mic USB. Spatial Mic Control communicates with the microphone through the same USB cable used to supply power and stream audio data. Spatial Mic Control replicates the hardware controls found on Spatial Mic USB itself and adds additional functionality.

    Electrical
    Output Channels 8 Channels Streaming to USB 2.0 Audio Host via USB-C Connector / 2 Channels Streaming Playback
    8 Channels ADAT Lightpipe Digital Output
    USB Streaming and ADAT may be used independently or concurrently
    Sample Rates USB 44.1kHz, 48kHz, 88.2kHz and 96kHz
    Sample Rates ADAT 44.1kHz and 48kHz
    Signal to Noise ADC 110dB SNR per channel, DAC 108dB SNR
    Bit Depth 16/24-bit
    ADC clipping in pad mode 131dB SPL
    Power USB bus powered via USB-C or external 5v source via micro-USB
    Headphone output 130mW into 16 ohms via 3.5mm TRS jack
    Live binaural monitoring using Google Resonance HRTFs (44.1kHz and 48kHz) and live Mid-Side monitoring (88.2kHz and 96kHz)
    DSP Spatial Mic Converter plugin DSP filter type: 64-element output filter matrix
    Individual calibration stored in each Mic for balanced array.
    Capsule / Array
    Capsule Type 14mm Prepolarized Condenser
    SNR 72dB-A
    Frequency Response 20Hz to 20kHz
    Max SPL 120dB @1kHz
    Array 8 transducers
    Mechanical
    Construction Aluminum / Nylon
    Spatial Mic Dimensions Height: 6.75ÕÕ Diameter: 2.125ÕÕ
    Spatial Mic Weight 0.54 lbs
    System Requirements
    Software Host device supporting multi-channel USB Audio 2.0 or ADAT lightpipe input
    USB bus power via USB-C jack or external 5v / 500mA source via micro-USB
    Software Requirements
    DAW Host DAW supporting multi-channel audio tracks like Reaper, Pro Tools Ultimate or Nuendo for Spatial Mic Converter Plugin
    Spatial Mic Converter plugin, MicNet Control and Spatial Mic Control app have been tested to work on macOS 10.11 and higher or Windows 10. Plugin and Control apps are available for download to test system.
    Miscellaneous
    Array Ordering Looking at Spatial Mic from the front, as indicated by the logo, Capsule 1 is on the lower right (Roman numeral ÔIÕ). Capsule 5 is on the top ring of the capsule array and inline with mic knob. The bottom ring contains capsule 1-4 and the top ring contains capsule 5-8.

    Spatial Mic lets you focus on recording immersive audio for VR, ATMOS, spatial music, concert recording, live broadcasts and much more. Want to use it in traditional stereo session? No Problem – the included software makes it easy to decode to stereo and aim virtual mics around the soundfield. No need for expensive multi-microphone or preamp setups – just plug-in and record with either Dante audio networking or USB/ADAT models.

    Features:

    • USB Streaming up to 24-bit / 96 kHz
    • ADAT Light-Pipe up to 24-bit / 48 kHz
    • Live Binaural headphone playback
    • USB Bus powered or external 5v
    • Texas Instruments analog front end, ADC and DAC
    • Spatial Mic Control app for configuration over USB

    What's In The Box:

    • Spatial Mic USB
    • ¼-20 to ⅝ mini swivel ball hard-mount
    • Foam windscreen
    • For Download:
      • Spatial Mic Converter VST3® plugin (macOS / Windows), AU  (Audio Unit for macOS) and AAX (macOS / Windows)
      • MicNet Control app (macOS / Windows)
      • User Manual


    360º Creativity

    From studio to field, live concerts and the latest XR applications, your next adventure begins with Spatial Mic.

    Future Proof Immersive Production
    Record audio for evolving formats in VR/AR and leverage Dante audio networking to create 6 Degree Of Freedom experiences with multiple Spatial Mics.

    Portability Redefined
    Low noise and high SPL handling with single wire connectivity provides the freedom to leave bulky gear at home — even in the most demanding environments.

    Critical Recording Flexibility
    Spatial Mic transforms audio capture in the recording studio with unmatched control, versatility, quality and unique connectivity options to compliment your setup.

    Broadcast / Live Concerts
    Capture or live stream mono, stereo or multichannel audio feeds for sporting events, concerts, television, YouTube 360, Facebook 360 and more.

    Expand Your Vision
    Open new markets for your business and deliver content to Dolby Atmos, ambisonics or explore the sound field in mono, stereo X/Y, Blumlein or any format you would normally use for your production.

    Test / Measurement
    Use Spatial Mic to record and playback Impulse Responses in an acoustic space, view hotspots and sound reflections or explore new ways to interact with sound.

    Designed For Innovative Recording
    Spatial Mic is crafted to bring your recordings to life in the most realistic way possible. More than simply a microphone – analog and digital electronics work together with software components to create incredibly engaging audio.

    8 Capsule Spatial Audio Capture
    High spatial resolution made possible with 8 analog capsules for 2nd Order Ambisonics.

    High Performance Audio Design
    Professional grade analog to digital conversion, high resolution Skyworks clocking scheme and built-in 32-bit XMOS Processor.

    Individual Calibration
    Each microphone is individually calibrated prior to shipping for quick recording with a balanced array.

    Complete Soundfield Control
    The Spatial Mic Converter plugin (AAX, Audio Unit or VST3) transforms the raw unprocessed audio signals from Spatial Mic USB and Dante to a number of different formats suitable for any type of audio production and opens advanced features like the ability to aim virtual mics in 360º.

    Output Options
    Spatial Mic in Anechoic ChamberSpatial Mic employs the concept of Ambisonics to transform the raw signals from the capsule array to a format suitable for audio production.

    The included software takes the guesswork out of this, letting you concentrate on your recordings. It’s as simple as setting the output to your desired format – mono, stereo, surround sound or even Ambisonics! Ambisonics enables audio reproduction on any number of speakers in varying configurations. To accomplish this, Spatial Mic Converter uses an internal 64-channel filter matrix and measurements from an anechoic chamber.

    Spatial Record App
    The Spatial Record App is a user-friendly, multichannel recording tool designed for iOS, macOS and Windows. Use it to effortlessly record multichannel audio files up to 24-bit / 96 kHz from Spatial Mic USB to devices like iPhones, iPads and laptops. Spatial Mic Dante can also be recorded with the help of Dante Virtual Soundcard or other Dante interface. Audio files are saved as multichannel .wav files, which can then be easily imported into your DAW of choice for conversion with the Spatial Mic Converter plugin.

    Using the Spatial Record App alongside Spatial Mic USB offers a complete solution for capturing higher-order ambisonics wherever your travels may take you. The app’s intuitive design ensures quick setup, so you don’t miss out on critical recordings. Additionally, Spatial Record features a DSP mode for binaural playback (for files recorded with Spatial Mic), file browser and live monitoring.

    Spatial Mic Control App
    The Spatial Mic Control app provides remote manipulation of various hardware parameters on Spatial Mic USB. Spatial Mic Control communicates with the microphone through the same USB cable used to supply power and stream audio data. Spatial Mic Control replicates the hardware controls found on Spatial Mic USB itself and adds additional functionality.

    Electrical
    Output Channels 8 Channels Streaming to USB 2.0 Audio Host via USB-C Connector / 2 Channels Streaming Playback
    8 Channels ADAT Lightpipe Digital Output
    USB Streaming and ADAT may be used independently or concurrently
    Sample Rates USB 44.1kHz, 48kHz, 88.2kHz and 96kHz
    Sample Rates ADAT 44.1kHz and 48kHz
    Signal to Noise ADC 110dB SNR per channel, DAC 108dB SNR
    Bit Depth 16/24-bit
    ADC clipping in pad mode 131dB SPL
    Power USB bus powered via USB-C or external 5v source via micro-USB
    Headphone output 130mW into 16 ohms via 3.5mm TRS jack
    Live binaural monitoring using Google Resonance HRTFs (44.1kHz and 48kHz) and live Mid-Side monitoring (88.2kHz and 96kHz)
    DSP Spatial Mic Converter plugin DSP filter type: 64-element output filter matrix
    Individual calibration stored in each Mic for balanced array.
    Capsule / Array
    Capsule Type 14mm Prepolarized Condenser
    SNR 72dB-A
    Frequency Response 20Hz to 20kHz
    Max SPL 120dB @1kHz
    Array 8 transducers
    Mechanical
    Construction Aluminum / Nylon
    Spatial Mic Dimensions Height: 6.75ÕÕ Diameter: 2.125ÕÕ
    Spatial Mic Weight 0.54 lbs
    System Requirements
    Software Host device supporting multi-channel USB Audio 2.0 or ADAT lightpipe input
    USB bus power via USB-C jack or external 5v / 500mA source via micro-USB
    Software Requirements
    DAW Host DAW supporting multi-channel audio tracks like Reaper, Pro Tools Ultimate or Nuendo for Spatial Mic Converter Plugin
    Spatial Mic Converter plugin, MicNet Control and Spatial Mic Control app have been tested to work on macOS 10.11 and higher or Windows 10. Plugin and Control apps are available for download to test system.
    Miscellaneous
    Array Ordering Looking at Spatial Mic from the front, as indicated by the logo, Capsule 1 is on the lower right (Roman numeral ÔIÕ). Capsule 5 is on the top ring of the capsule array and inline with mic knob. The bottom ring contains capsule 1-4 and the top ring contains capsule 5-8.
