Waves DSPro StageGrid 4000 Stagebox Interface for Waves SoundGrid Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

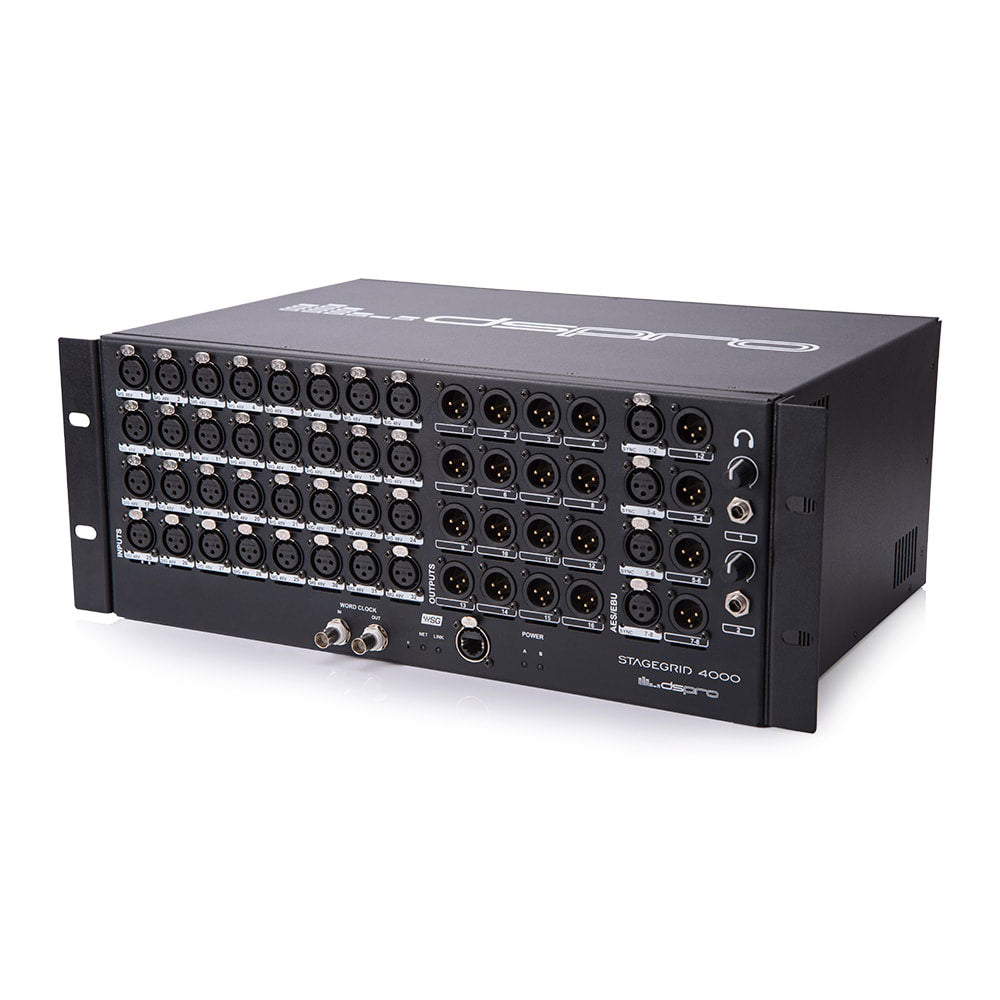

SoundGrid stagebox, perfect for use with the eMotion LV1 live mixer. Crafted for supreme sound quality and reliability, with 32 mic/line ins, 16 analog outs and AES/EBU ins/outs, all digitally controlled.
Featuring pristine preamps designed to deliver a dynamic sound with superb clarity, StageGrid 4000 is fully integrated into the Waves ecosystem and easily interfaces with the eMotion LV1 mixer and any other SoundGrid network component. It provides a seamless solution for live sound applications, coupled with the modularity and power of SoundGrid technology.
Built ruggedly in a robust 4U rack-mountable chassis, StageGrid 4000 is designed with the challenges of the road in mind, and with no compromise in audio quality. All of StageGrid 4000's components were carefully selected and tested to ensure continuous system stability and maximum dependability, including a redundant power supply. This way you can focus on what really matters – creating a consistent, impactful sonic experience, show after show.
Features:
- SoundGrid stagebox perfect for the eMotion LV1 mixer
- 32 Analog mic/line Inputs
- 16 Analog line outputs
- 4 Stereo AES / EBU Digital inputs
- 4 Stereo AES / EBU Digital outputs
- Sample Rate: 44.1 kHz - 96 kHz
- 2 Headphone outs with individual volume controls
- Word Clock input and output, BNC connectors
- SoundGrid Ethernet connection

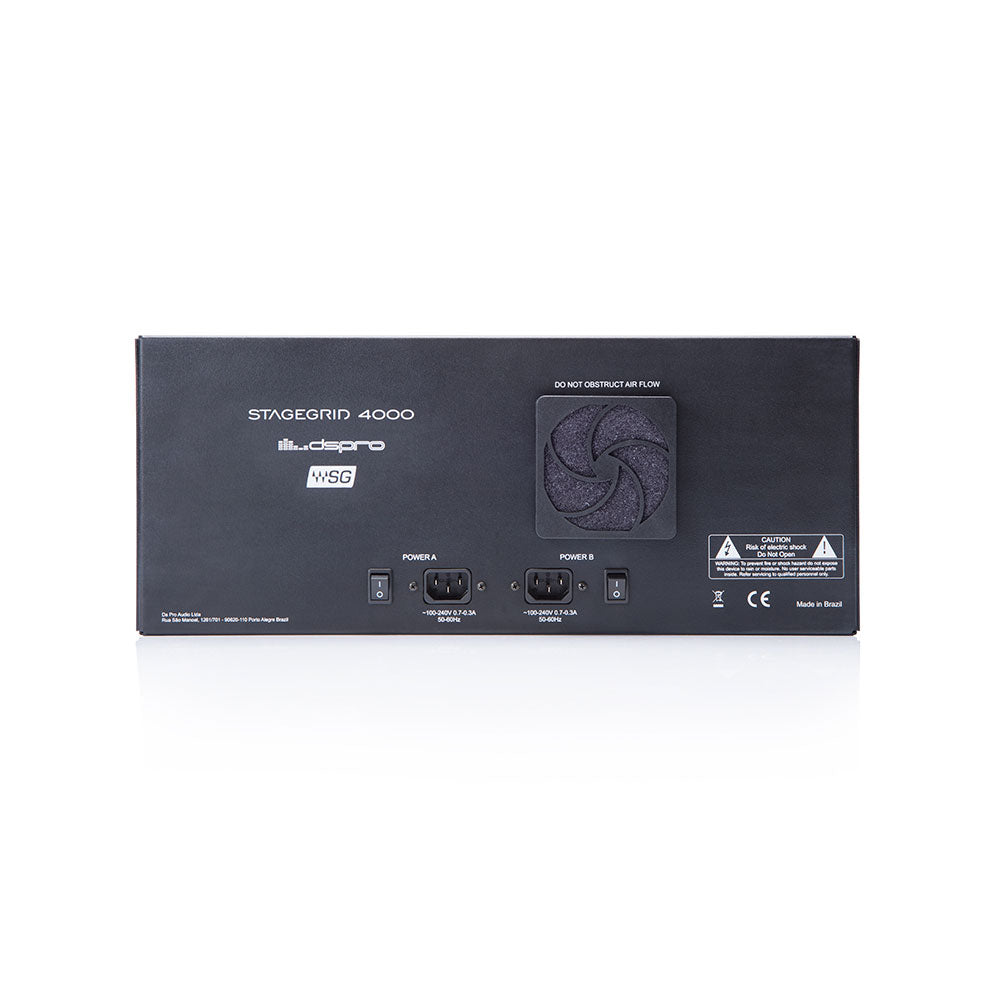

- Redundant AC power supply
| Analog Inputs | |
| Impedance | 2.86 kOhms |
| Gain range | -4 dB to 60 dB |
| Max input level | 28 dBu (-4 dB gain) |
| Dynamic range | 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted) |
| THD | 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted) |
| Equivalent input noise | -128 dBu (60 dB gain, A-weighted, 150 ohms) |
| Frequency response | +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate) |
| Phase Shift | <10¡ at 20 Khz |
| Analog Outputs | |
| Output impedance | 50 ohms |
| Max output Level (0dBFS) | 24 dBu |
| Dynamic range | 115 dB (-60 dBFS, 1 kHz, A-weighted) |
| THD | 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted) |
| Frequency response | +/- 0.1 dB (20 to 40 kHz at 96 kHz) Phase shift: <5¡ at 20 Khz |
| AES/EBU IN/OUT | |
| Standard | AES3 (2009) |
| Sample rates | 44.1, 48, 88.2 and 96 kHz |
| Impedance | 110 ohms |
| Headphones | |
| Output Power | 150 mW per channel on 16 ohms |
| Dynamic range | 100 dB |
| SoundGrid | |
| Interface | Gigabit Ethernet |
| Connector | Neutrik EtherCON |
| Word Clock | |
| Connector | BNC |
| Impedance | 75 Ohms |
| Voltage level | 5V TTL |
| Power supply | |
| Voltage | 110 or 240 VAC |
| Frequency | 50 Hz or 60 Hz Power: 60 W |
| Environmental specifications | |
| Operating temperature | 0¡C to 40¡C |
| Relative humidity | Up to 90% non-condensing |
Dimensions |
Height: 176 mm / 6.92 in (4RU) Width: 430 mm / 19.92 in (for 19” rack) Depth: 300 mm / 11.81 in (not including connectors) Weight: 7.89 Kg |
SoundGrid stagebox, perfect for use with the eMotion LV1 live mixer. Crafted for supreme sound quality and reliability, with 32 mic/line ins, 16 analog outs and AES/EBU ins/outs, all digitally controlled.
Featuring pristine preamps designed to deliver a dynamic sound with superb clarity, StageGrid 4000 is fully integrated into the Waves ecosystem and easily interfaces with the eMotion LV1 mixer and any other SoundGrid network component. It provides a seamless solution for live sound applications, coupled with the modularity and power of SoundGrid technology.
Built ruggedly in a robust 4U rack-mountable chassis, StageGrid 4000 is designed with the challenges of the road in mind, and with no compromise in audio quality. All of StageGrid 4000's components were carefully selected and tested to ensure continuous system stability and maximum dependability, including a redundant power supply. This way you can focus on what really matters – creating a consistent, impactful sonic experience, show after show.
Features:
- SoundGrid stagebox perfect for the eMotion LV1 mixer
- 32 Analog mic/line Inputs
- 16 Analog line outputs
- 4 Stereo AES / EBU Digital inputs
- 4 Stereo AES / EBU Digital outputs
- Sample Rate: 44.1 kHz - 96 kHz
- 2 Headphone outs with individual volume controls
- Word Clock input and output, BNC connectors
- SoundGrid Ethernet connection
- Redundant AC power supply
| Analog Inputs | |
| Impedance | 2.86 kOhms |
| Gain range | -4 dB to 60 dB |
| Max input level | 28 dBu (-4 dB gain) |
| Dynamic range | 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted) |
| THD | 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted) |
| Equivalent input noise | -128 dBu (60 dB gain, A-weighted, 150 ohms) |
| Frequency response | +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate) |
| Phase Shift | <10¡ at 20 Khz |
| Analog Outputs | |
| Output impedance | 50 ohms |
| Max output Level (0dBFS) | 24 dBu |
| Dynamic range | 115 dB (-60 dBFS, 1 kHz, A-weighted) |
| THD | 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted) |
| Frequency response | +/- 0.1 dB (20 to 40 kHz at 96 kHz) Phase shift: <5¡ at 20 Khz |
| AES/EBU IN/OUT | |
| Standard | AES3 (2009) |
| Sample rates | 44.1, 48, 88.2 and 96 kHz |
| Impedance | 110 ohms |
| Headphones | |
| Output Power | 150 mW per channel on 16 ohms |
| Dynamic range | 100 dB |
| SoundGrid | |
| Interface | Gigabit Ethernet |
| Connector | Neutrik EtherCON |
| Word Clock | |
| Connector | BNC |
| Impedance | 75 Ohms |
| Voltage level | 5V TTL |
| Power supply | |
| Voltage | 110 or 240 VAC |
| Frequency | 50 Hz or 60 Hz Power: 60 W |
| Environmental specifications | |
| Operating temperature | 0¡C to 40¡C |
| Relative humidity | Up to 90% non-condensing |
Dimensions |
Height: 176 mm / 6.92 in (4RU) Width: 430 mm / 19.92 in (for 19” rack) Depth: 300 mm / 11.81 in (not including connectors) Weight: 7.89 Kg |
