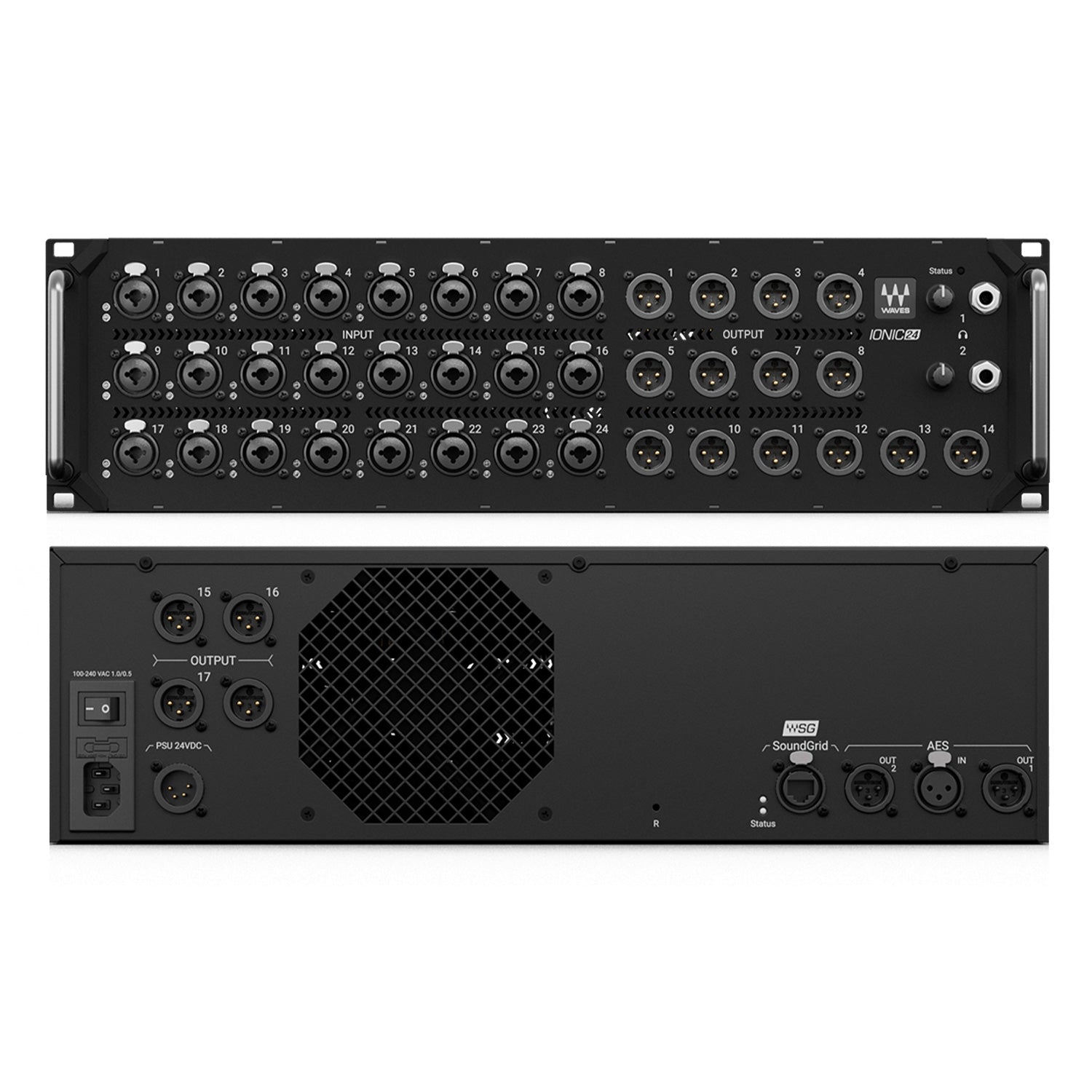

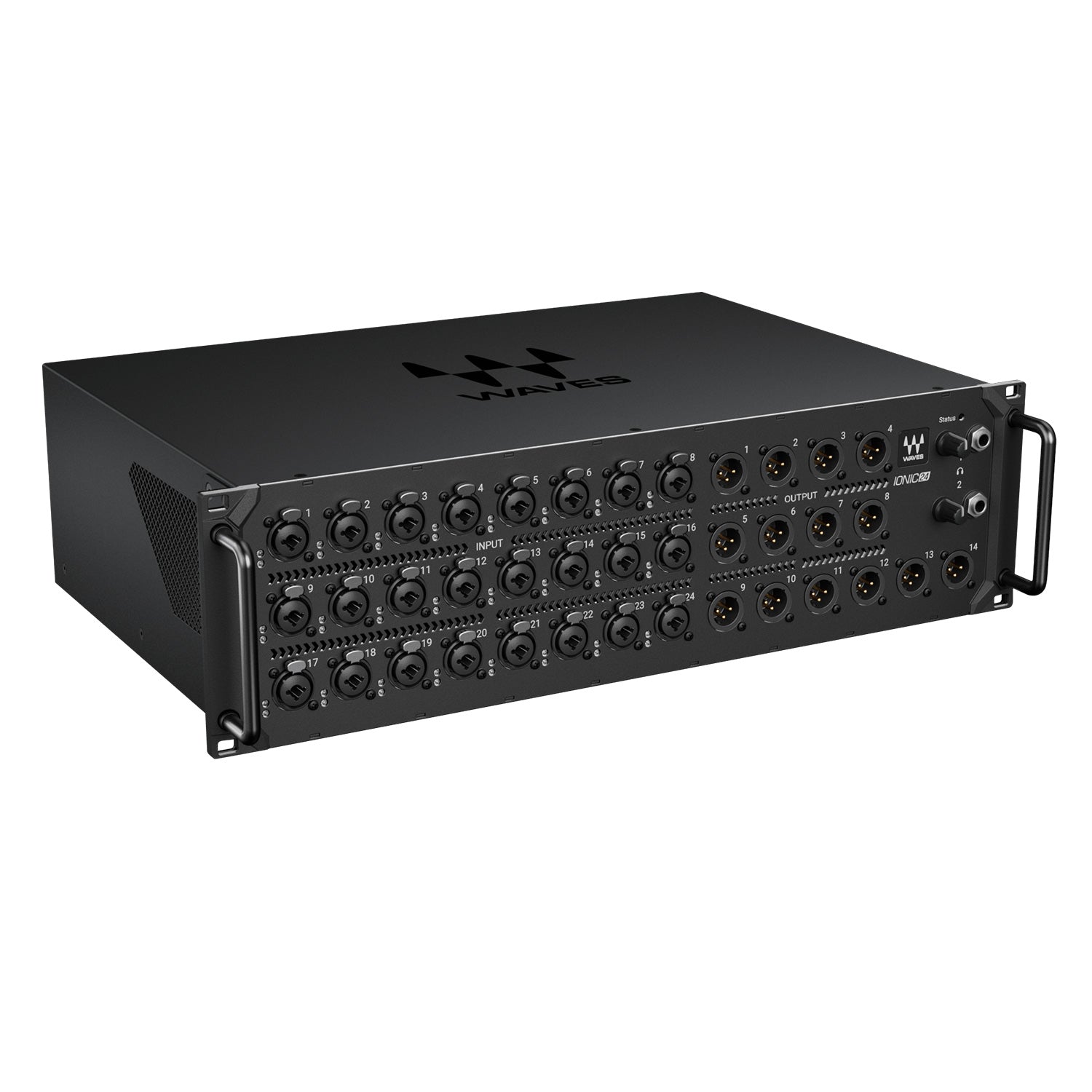

Waves IONIC 24 - 24-Input 18-Output SoundGrid Stagebox with Waves Signature Preamps
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Introducing Waves IONIC 24: the pinnacle of sound quality for live performances. Experience unparalleled punch and clarity, ensuring your sound stands out in any scenario. Engineered for excellence, IONIC 24 is crafted to enhance every input, from vocals to snare drums, delivering superb sound quality with uncompromising precision.
At the heart of IONIC 24 are Waves Signature Preamps—originally designed preamps with fully discrete analog circuits. Waves Signature Preamps deliver maximum headroom, lightning-fast transient response, and an incredibly low noise floor, plus your choice between transparent preamp sound and added rich harmonic enhancement per input.
IONIC 24 is the perfect I/O expansion for the eMotion LV1 live mixing console, complementing the LV1’s already exceptional sonic performance and ensuring quick and easy setup.
Features:
- 24 in / 18 out SoundGrid stage box with superior audio quality
- Seamless integration with the eMotion LV1 console
- 24 mic/line inputs with original-design Waves Signature Preamps
- 18 crystal-clear line outputs (selectable between 18/24 dBu)
- Stereo AES 1 input / 2 outputs
- 2 independent headphone outputs
- Analog-modeled harmonic enhancement per input (optional)
- Sample Rates: 44.1, 48, 88.2, 96 kHz
- Analog input impedance selector: classic 2kΩ / modern 7kΩ
- Road-ready 3U chassis: rugged build, rack-mountable
- Optional external power supply available separately
| Sample Rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| Microphone/Line Inputs | |
| Input Gain | adjustable from -3 dB to 60 dB in steps of 1dB |
| Frequency response (+18 dBu input) | +/- 0.1 dB, 20 Hz to 20 kHz +/ -1.0 dB, 10 Hz to 40 kHz |
| Dynamic range | >110 dB (20 kHz BW, 0 dB Gain) |
| EIN | -130 dBu (gain 60 dB, 0 ohms source, A-weighted) |
| THD+N | -100 dB (997 Hz, +18dBu source, 0 dB Gain, 20kHz BW) |
| Input impedance | XLR: 2k ohms / 7k ohms, selectable per input TRS: 14.6K ohms |
| Input Sensitivity | XLR: -33 dBu to +27 dBu, adjustable in 1 dB steps TRS: -27 dBu to +33 dBu, adjustable in 1 dB steps |
| CMRR | 50 dB (20 Hz to 1 kHz, 0 dB gain) |
| Crosstalk | > 90 dB (20 Hz to 20 kHz, +27 dBu input, 0 dB gain) |
| Inputs | 48V phantom power switchable per input Input transformer simulation, switchable per input Front panel signal presence and clip indicator, per channel |
| Line Output | |
| Maximum output level | +18 dBu or + 24 dBu, switchable per output |
| Frequency Response | +/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR +0.1 / -1.0 dB, 10 Hz to 40 kHz @ 96 kHz SR |
| THD+N | -100 dB @ +24 dBu, -105 dB @ +18 dBu (997 Hz, 20 kHz BW) |
| Crosstalk | > 90 dB (20 Hz to 20 kHz) |
| Residual output noise | -87 dBu (A-Weighted) |
| Output impedance | 150 ohms |
| Headphones Output | Adjustable output-gain up to 6V |
| Frequency Response | +/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR +0.1 / -1.0 dB, 10 Hz to 40 kHz @ 96 kHz SR |
| THD+N | -80 dB (3V @ 30 ohm load, 997 Hz, 20 kHz BW) |
| Output impedance | 20 ohms |
| AES3 | |
| Input / Output impedance | 110 ohms |
| Input SR with auto conversion (SRC) | Y |
| Output SR support | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| SoundGrid | |
| Ethernet | 1GB |
| Power | 100 VÐ240 V auto-switching PSU 0.5A / 0.25A, Redundant PSU external input |
| Operating Temperature | 0 to 35 degrees Celsius (32 to 95 degrees Fahrenheit) |
| Dimensions | 19 x 12.2 x 5.17 inches (482.1 x 310.8 x 131.4 mm) |
| Weight | 14.77 lbs (6.7 kg) |
