Waves WSG-Y16 V2 - mini-YGDAI I/O Card (for Yamaha Consoles)


  • Dale #:

    WAVE-WSGY16
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Waves WSG-Y16 V2 I/O card for Yamaha digital consoles enables integration with Waves SoundGrid systems via a single Ethernet cable, providing live sound engineers with access to SoundGrid’s low-latency plugin processing, multitrack recording and playback, and audio networking. WSG-Y16 V2 also... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

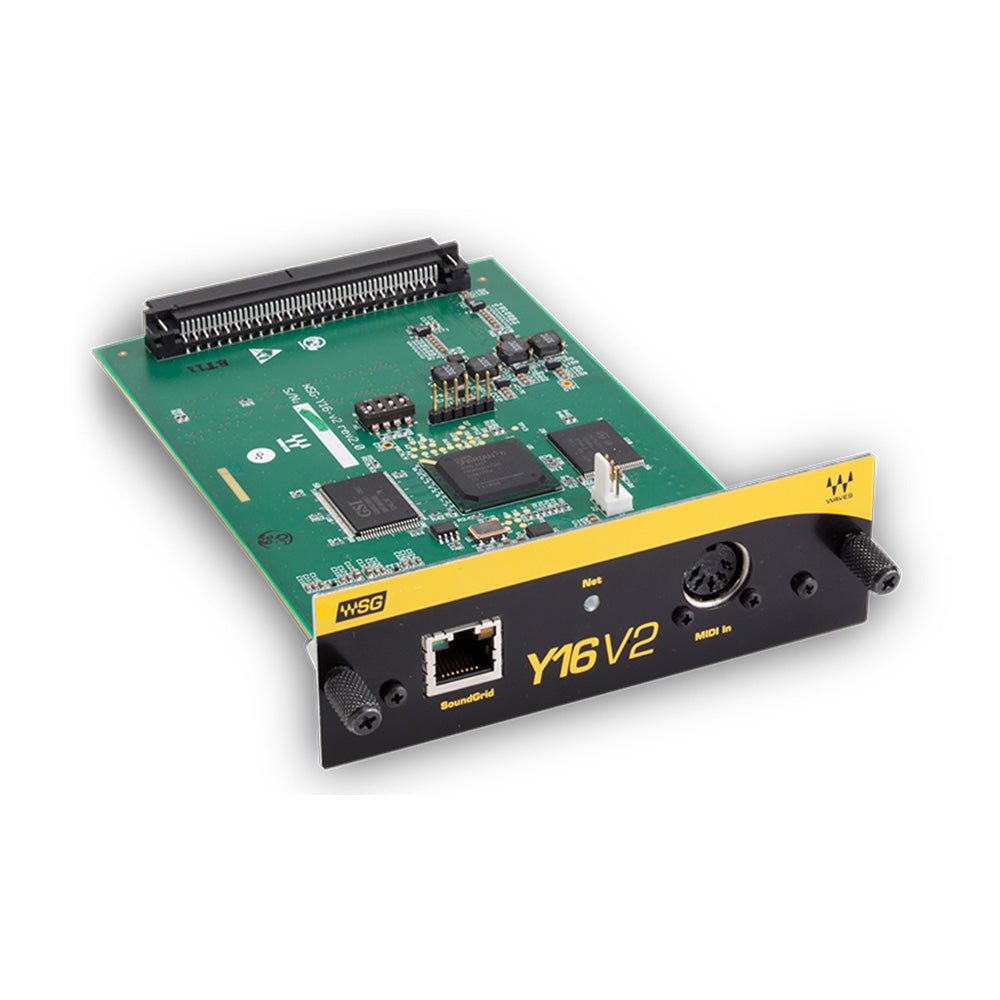

The Waves WSG-Y16 V2 I/O card for Yamaha digital consoles enables integration with Waves SoundGrid systems via a single Ethernet cable, providing live sound engineers with access to SoundGrid’s low-latency plugin processing, multitrack recording and playback, and audio networking. WSG-Y16 V2 also features clock Sync over Ethernet for syncing multiple consoles and performing digital splits.

Together with a SoundGrid DSP server and a Mac or PC, the Waves WSG-Y16 V2 card lets you process 16 channels of audio in low latency using SoundGrid-compatible plugins, directly from your Yamaha console.

Features:

  • Extremely low-latency networking platform for processing, playback and recording
  • Supports 44.1, 48, 88.2 and 96 kHz sample rates
  • 16 I/O channels of audio at 44.1/48 kHz; 8 I/O channels of audio at 88.2/96 kHz
  • Clock Sync over Ethernet (SoE) for digital splits and audio networking
  • Works with all consoles installed with the WSG-Y16 V1 card
  • Redundancy and recovery options
  • Connects to SoundGrid systems and SoundGrid-compatible devices
  • Compatible with standard computers and switches
  • Comes with the SoundGrid Studio Application for ASIO/Core Audio recording and playback
  • MIDI control from consoles
  • Add up to four cards for 64/32-channel processing and recording

More +

Product Specs

Console Model WSG-Y16 I/O cards supported
PM5D / PM10 / DM2000 / O2R96 / DME64N x 4
M7CL / CL Series x 3
DM1000 / LS9-32 / QL Series x 2
LS9 / O1V96 / DME24N / TXn series x 1
