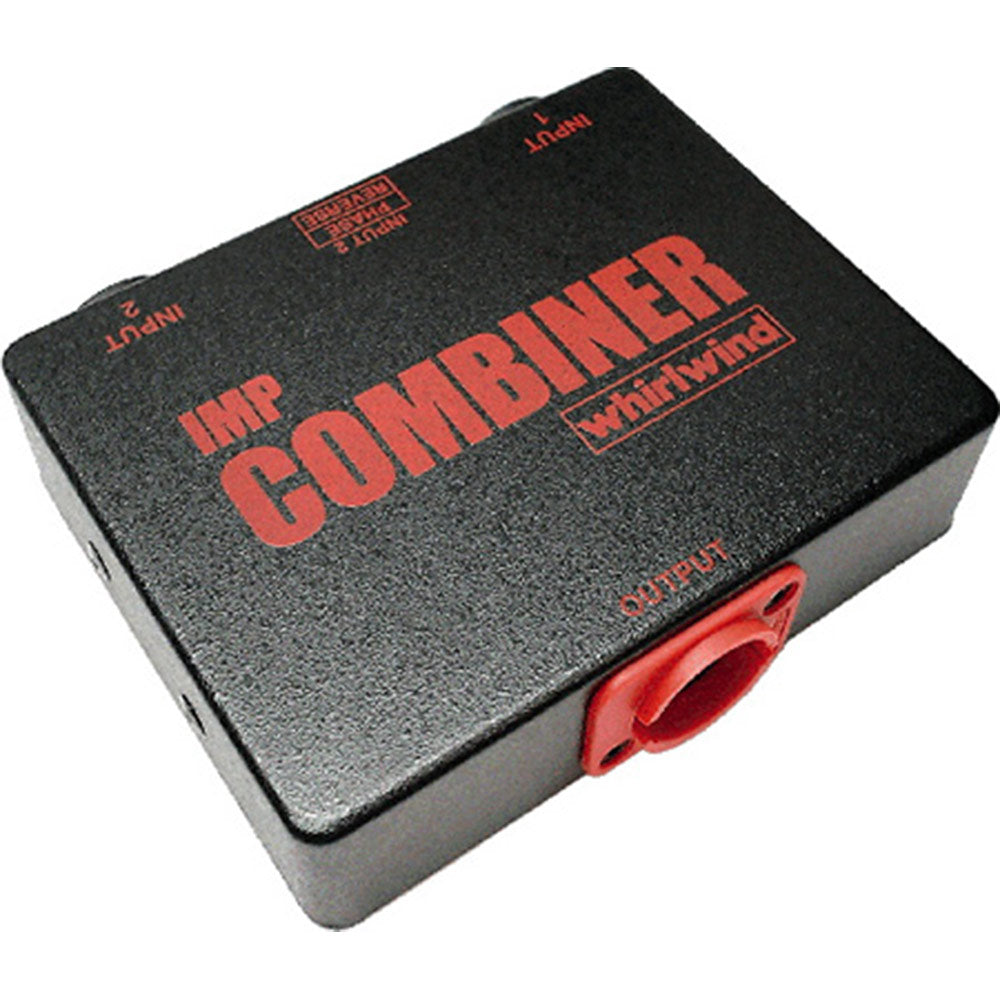

Whirlwind IMCOML Line Level Combiner - 2 in / 1 out
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Use the line level combiner when you want to create a mono mix from a stereo source but need to keep the original stereo signals isolated. It's great for feeding a DAT player or CD into a mono system or single channel on a board.
This unit not only combines two line-level signals into one line level output, it also compensates for the 6dB of gain that occurs when two in-phase signals are combined. A handy ground-lift switch breaks the shield connection between the inputs.
| Frequency response | ±0.3dB 20Hz-20kHz |
| Total harmonic distortion + noise | Less than 0.025% at 1kHz |
| Isolation between inputs | Greater Than 42dB |
| Insertion loss | -0.6dB, 50 Ohms source impedance -3.8dB, 200 Ohms source impedance |
| Output level | -3.8dB with both channels at 0dB sine wave input, in phase |
| Maximum input level | +28dBm |
| Input impedance | 600 Ohms |
| Output impedance | Less than 100 Ohms |
Use the line level combiner when you want to create a mono mix from a stereo source but need to keep the original stereo signals isolated. It's great for feeding a DAT player or CD into a mono system or single channel on a board.
This unit not only combines two line-level signals into one line level output, it also compensates for the 6dB of gain that occurs when two in-phase signals are combined. A handy ground-lift switch breaks the shield connection between the inputs.
| Frequency response | ±0.3dB 20Hz-20kHz |
| Total harmonic distortion + noise | Less than 0.025% at 1kHz |
| Isolation between inputs | Greater Than 42dB |
| Insertion loss | -0.6dB, 50 Ohms source impedance -3.8dB, 200 Ohms source impedance |
| Output level | -3.8dB with both channels at 0dB sine wave input, in phase |
| Maximum input level | +28dBm |
| Input impedance | 600 Ohms |
| Output impedance | Less than 100 Ohms |
