Whirlwind ISO-2 Dual Line Level Isolator and Balancer with Ground Lift Switches and Phase Switch
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

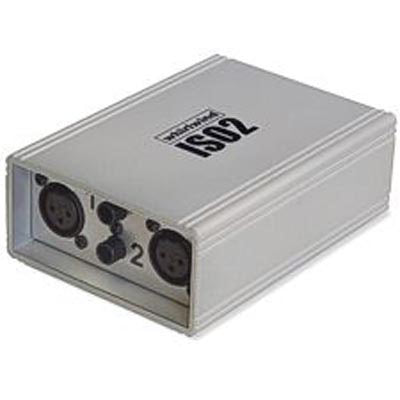

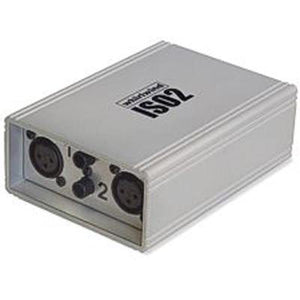

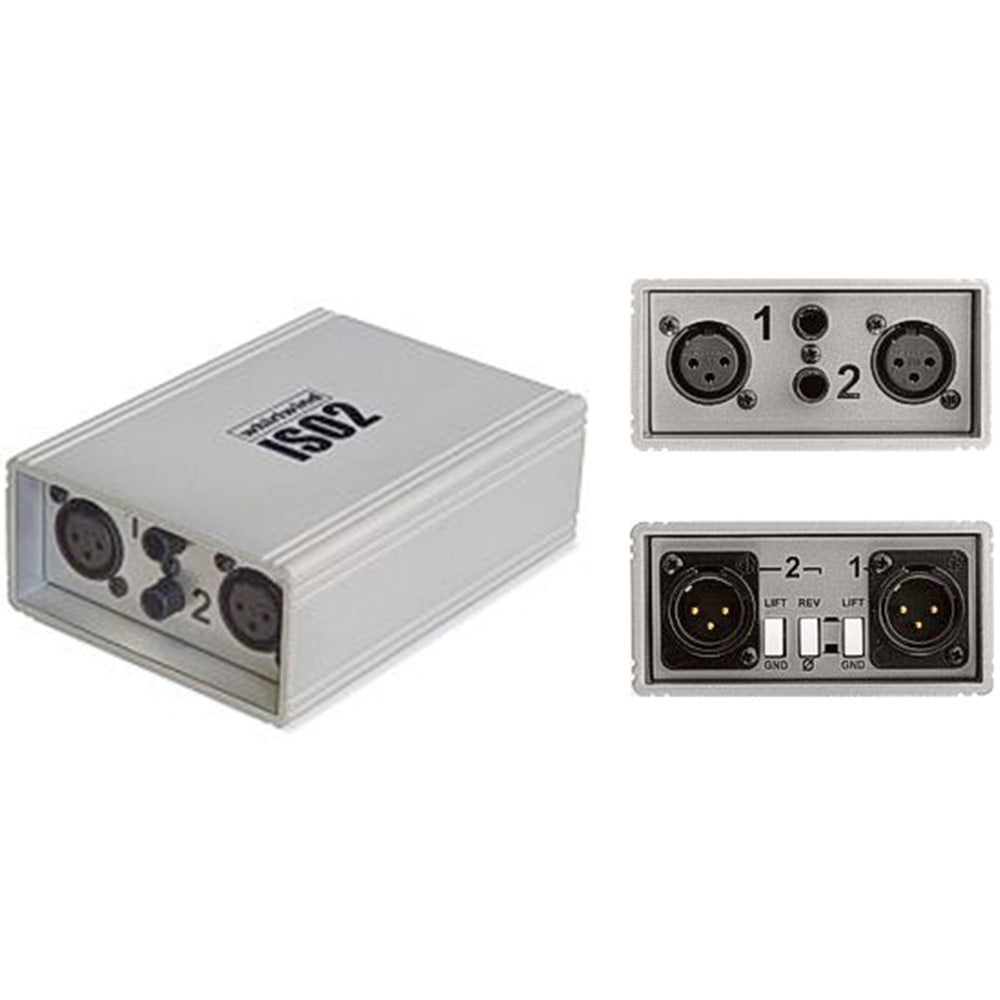

The ISO-2 is a two channel isolation box and line balancer. As an isolation unit, use it to isolate lines to press and video feeds or on-stage power amps. It's a handy hum and buzz fighter for broadcast or live sound applications. As a balancer, it converts unbalanced lines from CD players, tape decks, etc. to balanced for long cable runs.
Features- XLR and 1/4 inputs (accepts TRS or TS unbalanced)
- Ground-lift button
- Polarity reverse button (Channel 2 only)
- Whirlwind's own TRSP-600 transformers ensure flat frequency response and low distortion.
| Frequency Response: | 20Hz-20kHz ±0.5dB at +10dBm input |
| Maximum Input Level: | +28dBm |
| Input Impedance: | 600 Ohms |
| Output Impedance: | 600 Ohms |
The ISO-2 is a two channel isolation box and line balancer. As an isolation unit, use it to isolate lines to press and video feeds or on-stage power amps. It's a handy hum and buzz fighter for broadcast or live sound applications. As a balancer, it converts unbalanced lines from CD players, tape decks, etc. to balanced for long cable runs.
Features- XLR and 1/4 inputs (accepts TRS or TS unbalanced)
- Ground-lift button
- Polarity reverse button (Channel 2 only)
- Whirlwind's own TRSP-600 transformers ensure flat frequency response and low distortion.
| Frequency Response: | 20Hz-20kHz ±0.5dB at +10dBm input |
| Maximum Input Level: | +28dBm |
| Input Impedance: | 600 Ohms |
| Output Impedance: | 600 Ohms |
