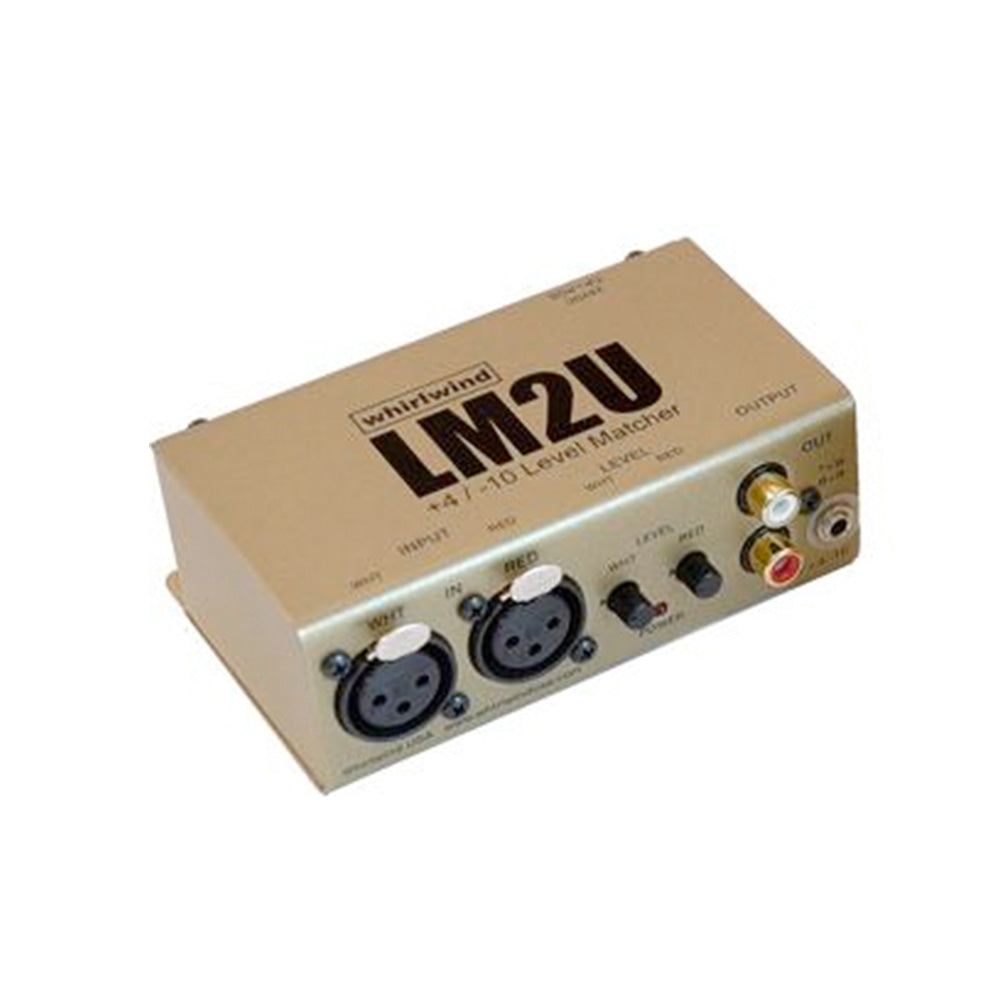

Whirlwind LM2U Dual-Channel Balanced to Unbalanced Analog Audio Converter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
These handy boxes can be used to match consumer grade audio devices (-10dB) to pro equipment (+4dB). These units convert the level and provide the conversion from balanced to unbalanced operation.
Features
- XLR, TRS mini and RCA phono jacks
- Level controls
- Active circuitry, power by Whirlwind PS24 supply (included)
| Frequency Response | 20-20 kHz at unity gain, ± .1 dBv |
| Total Harmonic Distortion +noise | < .0015% 20-20kHz at unity gain; < .0024% 20-20 kHz, +4 to -10 levels |
| Phase Shift | < 11.4 degrees 20-20 kHz; < 2 degrees 100-4 kHz |
| Dynamic range | 95.7 dB @ .1% thd |
| Total Gain | 40 dBv |
| Range of level pot | -40 to + 40 dBv |
| Maximum Input level | +17 dBv |
| Input Impedance | 20 k Ohms balanced |
| Maximum output level | +17 dBv |
| Output Impedance | 100 Ohms unbalanced |
| Noise at 20 dBv of gain | -87.4 dBv 20-20 kHz |
| Noise at unity gain | -103.4 dBv 20-20 kHz |
| Noise at 40 dBv of gain | -68.1 dBv |
| Power consumption | 34 mA DC max. |
| Stereo Separation | 94 dB at 20 kHz; 110 dB at 1 kHz; 120 dB at 20 Hz |
