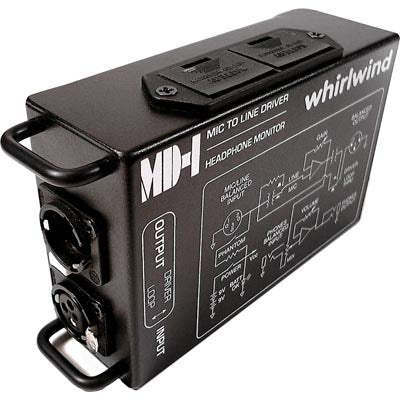

Whirlwind MD-1 Single Channel Portable Microphone Preamplifier and Headphone Monitor
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The industry's standard for parabolic, boom, and interview mic situations, the MD-1 is the ideal mic preamp for those who demand studio quality in a rugged, battery operated package. A broadcast quality performs alongside a high-performance input transformer to feed the MD-1 high-current line driver and headphone monitor amp. An input pad and level control let you adjust for almost any mic or line level signal (up to 60dB of gain). Or pass the unprocessed signal to the output (loop thru) while monitoring it with headphones.
Additional features:
- A separate balanced line level Aux input to the headphone amp for monitoring a program mix, a console foldback or a director's cues
- Headphone volume control and a separate MIX control allow you to adjust the headphone balance between the mic driver section and Aux input
- Built-in 18V phantom power (switchable)
- Steel case with belt clip resists abuse
- Two alkaline 9V batteries are mounted in slide out trays for easy access
| Input Impedance | Mic Mode: 1.5k Ohms Line Mode: 10k Ohms |
| Output Impedance | 600 Ohms |
| Max Input Signal | Mic Mode: -4dBm Line Mode: +12dBm |
| Frequency Response | +/-3dBm, 6Hz-25kHz -2dBm @ 20Hz -1dBm @ 20kHz |
The industry's standard for parabolic, boom, and interview mic situations, the MD-1 is the ideal mic preamp for those who demand studio quality in a rugged, battery operated package. A broadcast quality performs alongside a high-performance input transformer to feed the MD-1 high-current line driver and headphone monitor amp. An input pad and level control let you adjust for almost any mic or line level signal (up to 60dB of gain). Or pass the unprocessed signal to the output (loop thru) while monitoring it with headphones.
Additional features:
- A separate balanced line level Aux input to the headphone amp for monitoring a program mix, a console foldback or a director's cues
- Headphone volume control and a separate MIX control allow you to adjust the headphone balance between the mic driver section and Aux input
- Built-in 18V phantom power (switchable)
- Steel case with belt clip resists abuse
- Two alkaline 9V batteries are mounted in slide out trays for easy access
| Input Impedance | Mic Mode: 1.5k Ohms Line Mode: 10k Ohms |
| Output Impedance | 600 Ohms |
| Max Input Signal | Mic Mode: -4dBm Line Mode: +12dBm |
| Frequency Response | +/-3dBm, 6Hz-25kHz -2dBm @ 20Hz -1dBm @ 20kHz |
