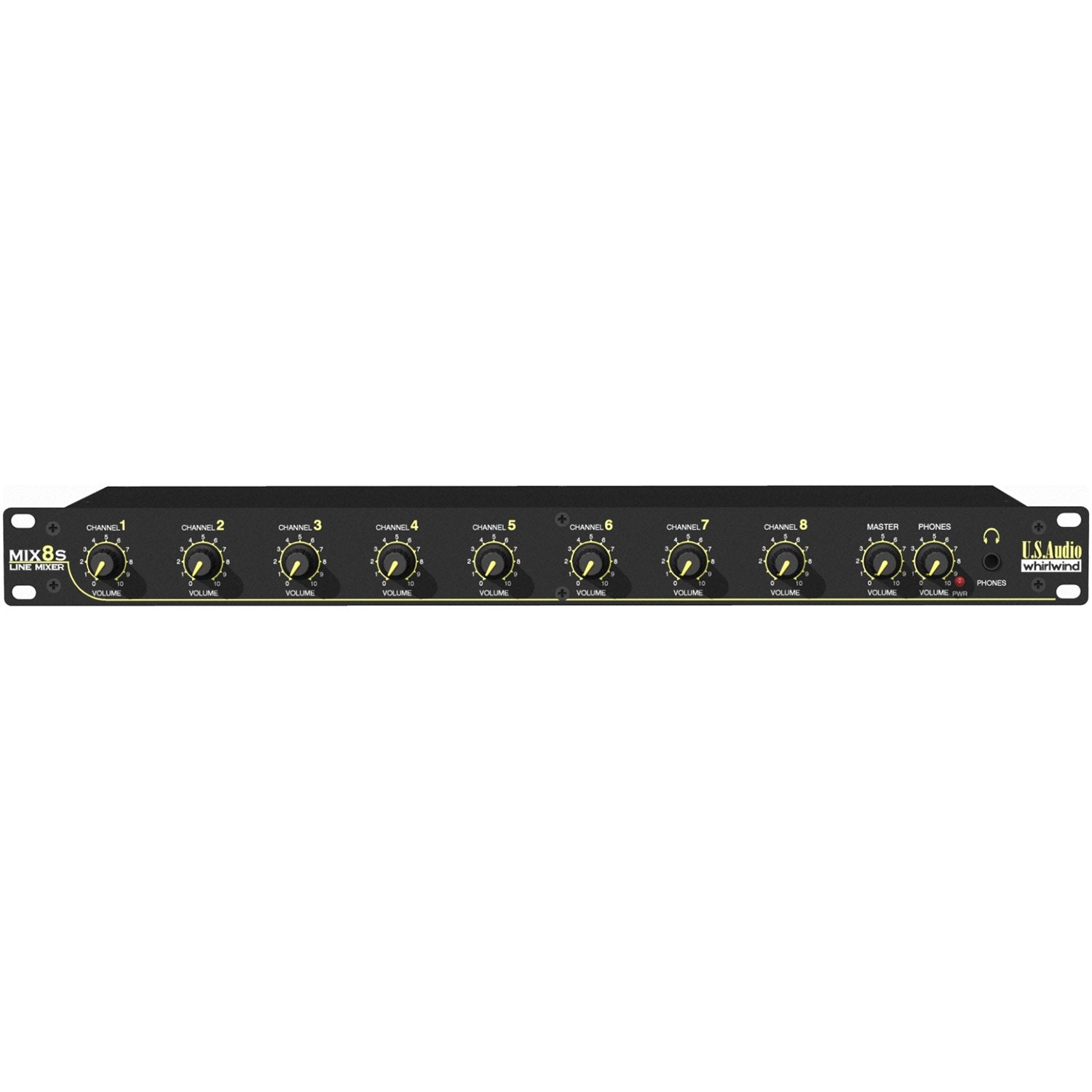

Whirlwind MIX-8S Stereo 8-Channel Line Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MIX-8S provides 8 stereo balanced line level inputs in an economical, space-saving package for broadcast audio mix-minus and studio monitoring of multiple stereo feeds.
Each channel has a front-panel volume control, with a single master volume control for the stereo output level. The unit also includes a headphone volume control and headphone jack for monitoring the stereo program mix. The stereo inputs and outputs are balanced or unbalanced line level via TRS 1/4" jacks.
| Frequency Response | 30Hz-20kHz ±0.5dB |
| Maximum Input Level | +22dBu |
| Input Impedance | 10k Ohms |
| Maximum Output Level | +22dBu |
| Output Impedance | 100 Ohms |
| Rise Time | 5µS |
| Total Harmonic Distortion | 0.05% |
| Power Requirements | 115/230VAC |
| Gain Structure | Channel Gain: 18dB Master Gain: 18dB Total Gain: 36dB |
| Headphone Impedance | 30 Ohms minimum |
The MIX-8S provides 8 stereo balanced line level inputs in an economical, space-saving package for broadcast audio mix-minus and studio monitoring of multiple stereo feeds.
Each channel has a front-panel volume control, with a single master volume control for the stereo output level. The unit also includes a headphone volume control and headphone jack for monitoring the stereo program mix. The stereo inputs and outputs are balanced or unbalanced line level via TRS 1/4" jacks.
| Frequency Response | 30Hz-20kHz ±0.5dB |
| Maximum Input Level | +22dBu |
| Input Impedance | 10k Ohms |
| Maximum Output Level | +22dBu |
| Output Impedance | 100 Ohms |
| Rise Time | 5µS |
| Total Harmonic Distortion | 0.05% |
| Power Requirements | 115/230VAC |
| Gain Structure | Channel Gain: 18dB Master Gain: 18dB Total Gain: 36dB |
| Headphone Impedance | 30 Ohms minimum |
