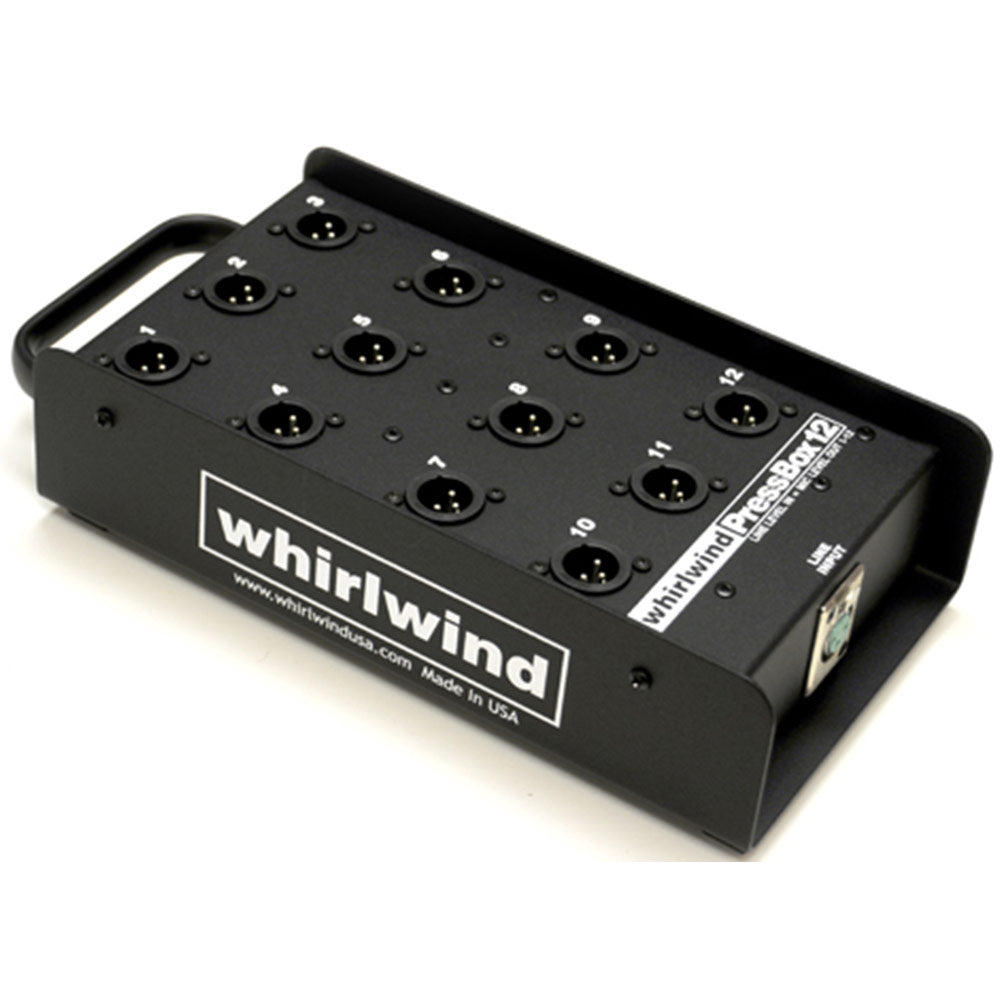

Whirlwind PB12 Passive Press Box (1 Input/12 Output)


  • Dale #:

    WHIR-PB12
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The PB Series expands mic outputs when used with line outs on PRESSPOWER 2 or PRESSMITE active press boxes or any time a line level feed is available. These passive units distribute one line level input to multiple mic level outputs*. Each output is transformer isolated, provides excellent inte... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The PB Series expands mic outputs when used with line outs on PRESSPOWER 2 or PRESSMITE active press boxes or any time a line level feed is available.

These passive units distribute one line level input to multiple mic level outputs*. Each output is transformer isolated, provides excellent interchannel isolation and is ground lifted to help eliminate noise problems. Whirlwind TRSP-2F transformers are used throughout.

The boxes are constructed with rugged, cold-rolled steel. Available with 6, 12, or 24 outputs.

  • Input Impedance: 2k Ohms
  • Output Impedance: 150 Ohms
  • Operating Level: 0 dB input = -43 dB output
  • Channel-to-channel Isolation:
  • 65 dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairs

* Line level signal MUST be provided into these passive press boxes. A microphone directly into the input will not provide enough signal level for proper operation.

More +

Product Specs

Length 11.0"
Width 5.5"
Depth 2.0"
