Whirlwind PCDIHW Stereo Direct Box with Hardwired Cable
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

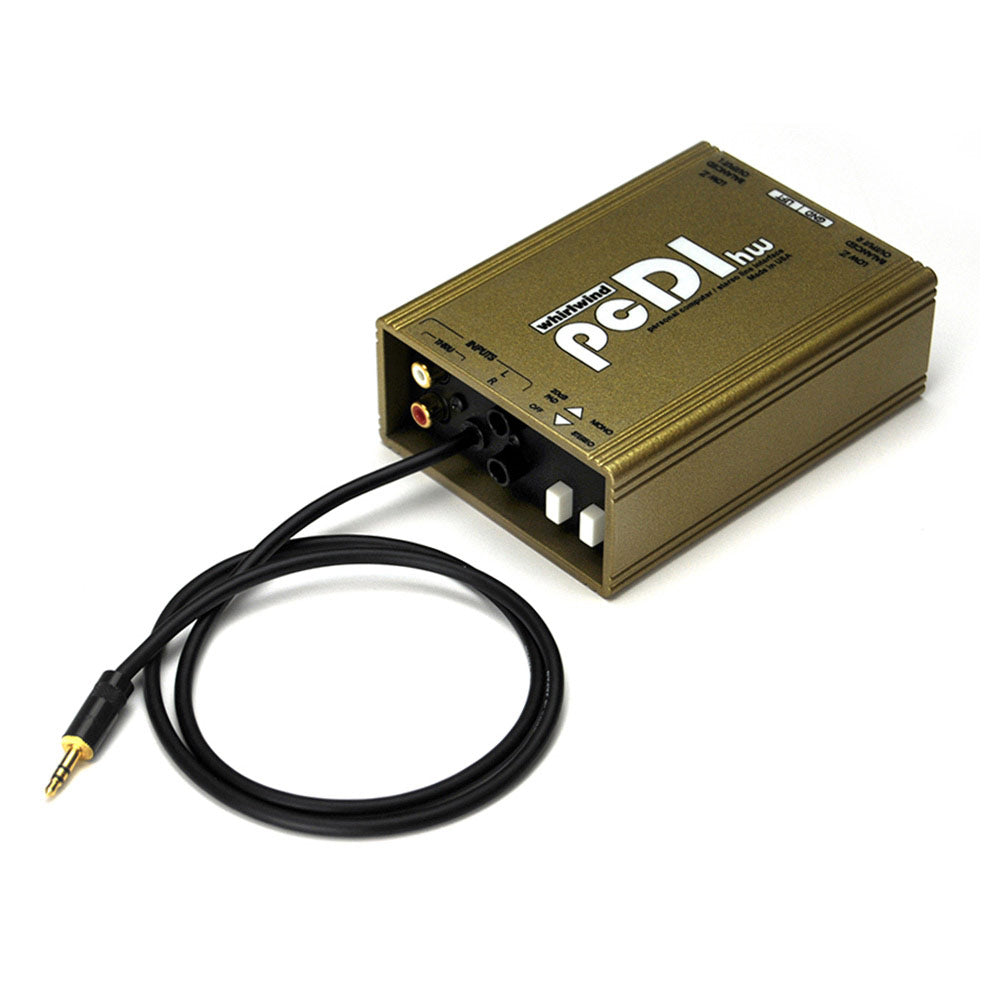

The Whirlwind pcDIhwb is a PCDI with a hard wired tail terminated with a stereo 3.5mm plug, perfect for interfacing the outputs of CD players, computer sound cards, iPODs® / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment. (with no chance of losing the cable) This unit contains two separate DIs - input your signals with one hard wired, 30 inch 3.5mm (1/8) mini TRS stereo plug, two sets of color coded RCA phono type input and through jacks or 1/4 TS input jacks. Output is via corresponding color coded XLRs.
Features:
- Color coded RCA phono in / through jacks
- 3.5 mm input plug on a 30 hard wired cable
- 1/4 TS input jacks

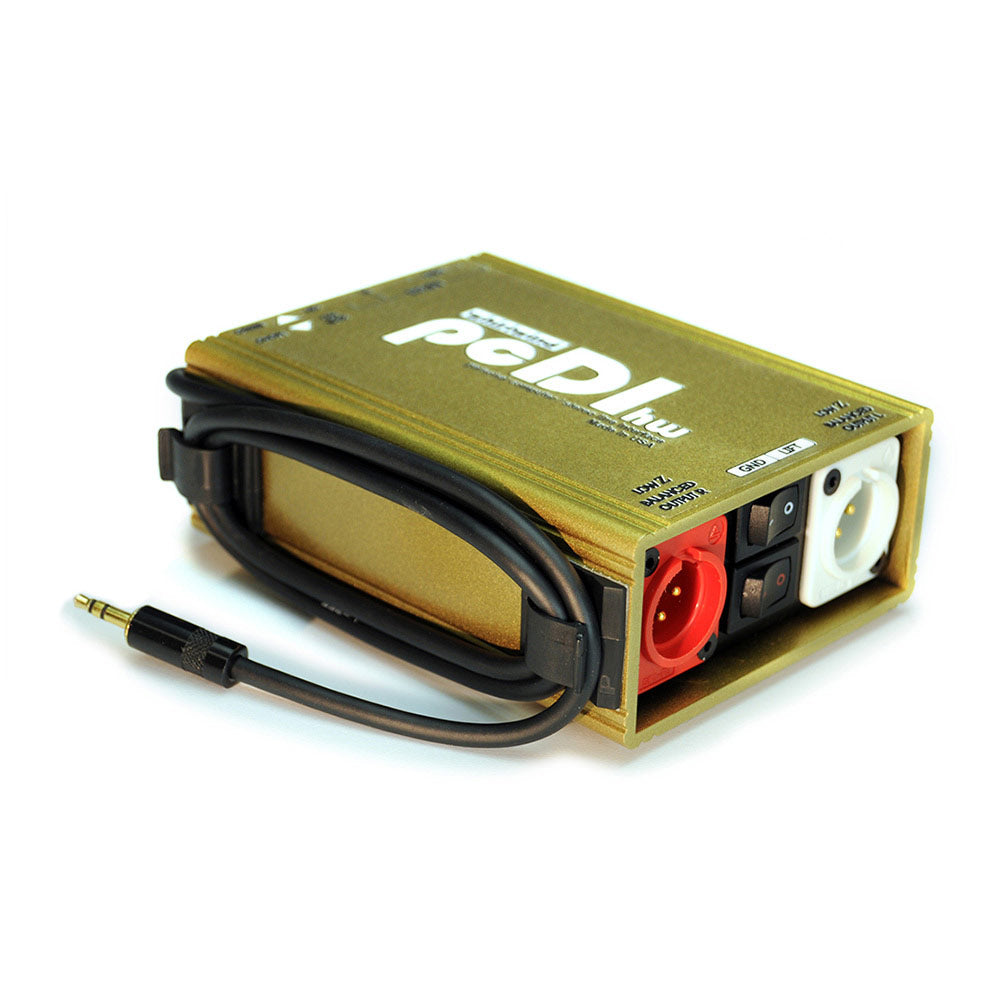

- Color coded XLR output jacks
- Ground Lift switch to help eliminate hum and buzz
- Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
- 20dB pad switch for connection to hot input signals
- Uses Whirlwind's TRHL-M transformers with metal shield
| Impedance Ratio (input to output, per channel) | 133:1 |
| Frequency Response | 20Hz-20kHz ±1dB |
| Level Change (input to output) | -20dB (pad out), -40dB (pad in) |
The Whirlwind pcDIhwb is a PCDI with a hard wired tail terminated with a stereo 3.5mm plug, perfect for interfacing the outputs of CD players, computer sound cards, iPODs® / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment. (with no chance of losing the cable) This unit contains two separate DIs - input your signals with one hard wired, 30 inch 3.5mm (1/8) mini TRS stereo plug, two sets of color coded RCA phono type input and through jacks or 1/4 TS input jacks. Output is via corresponding color coded XLRs.
Features:
- Color coded RCA phono in / through jacks
- 3.5 mm input plug on a 30 hard wired cable
- 1/4 TS input jacks
- Color coded XLR output jacks
- Ground Lift switch to help eliminate hum and buzz
- Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
- 20dB pad switch for connection to hot input signals
- Uses Whirlwind's TRHL-M transformers with metal shield
| Impedance Ratio (input to output, per channel) | 133:1 |
| Frequency Response | 20Hz-20kHz ±1dB |
| Level Change (input to output) | -20dB (pad out), -40dB (pad in) |
