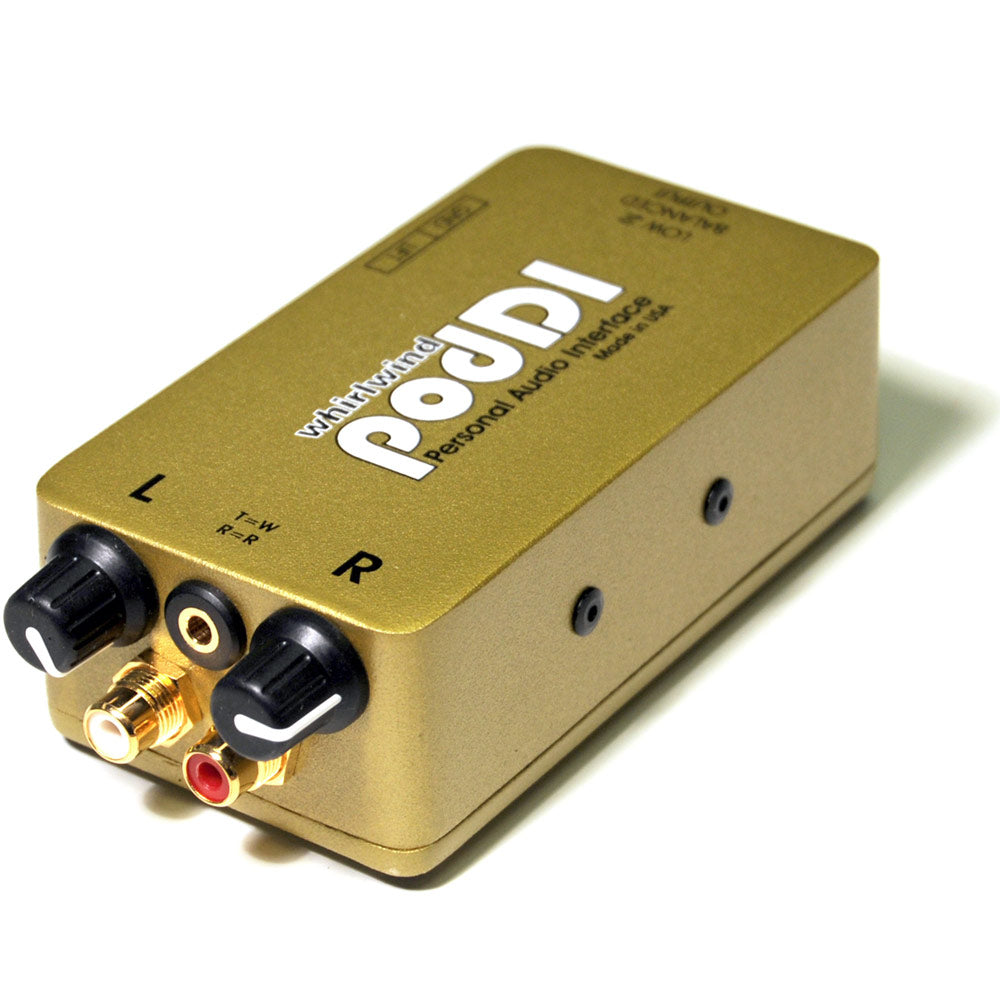

Whirlwind PODDI Single Output Summing Direct Box for Multimedia Devices
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The podDI is a single output summing direct box. Use it to connect CD and MP3 players, computer sound card outputs, DJ mixers, etc. to professional equipment with balanced inputs such as a mixing console. Accepts stereo inputs and sums them into a single mono output.
A variable attenuator on each input allows level matching between left and right inputs. This makes the podDI a passive mixer in split track audio applications, balancing the voice track and the music track levels in the summed mono output.
Signal is input via 3.5mm (1/8") stereo TRS jack or color coded RCA phono jacks. An unused input can be used as a "loop through". Output is via a balanced male XLR jack.
Features a ground lift switch to help eliminate hum and buzz.
The podDI can also be used as a high quality single input
| ATTENUATION, IN to OUT, LEVEL CONTROLS AT MAX | -21 dB, both channels driven; -25 dB, one channel only |
| IMPEDANCE RATIO (input to output) | 133:1 |
| FREQUENCY RESPONSE | 20Hz-20kHz ±1dB |
The podDI is a single output summing direct box. Use it to connect CD and MP3 players, computer sound card outputs, DJ mixers, etc. to professional equipment with balanced inputs such as a mixing console. Accepts stereo inputs and sums them into a single mono output.
A variable attenuator on each input allows level matching between left and right inputs. This makes the podDI a passive mixer in split track audio applications, balancing the voice track and the music track levels in the summed mono output.
Signal is input via 3.5mm (1/8") stereo TRS jack or color coded RCA phono jacks. An unused input can be used as a "loop through". Output is via a balanced male XLR jack.
Features a ground lift switch to help eliminate hum and buzz.
The podDI can also be used as a high quality single input
| ATTENUATION, IN to OUT, LEVEL CONTROLS AT MAX | -21 dB, both channels driven; -25 dB, one channel only |
| IMPEDANCE RATIO (input to output) | 133:1 |
| FREQUENCY RESPONSE | 20Hz-20kHz ±1dB |
