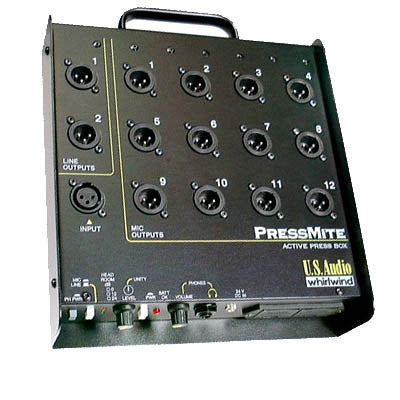

Whirlwind Pressmite Active Press Box (1) line in to (12) mic / (2) line out
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This compact, active press feed distribution box distributes 12 high-quality mic level signals and 2 line level signals with a high degree of isolation between outputs. It provides a 60dB gain adjustment for one mic or line input. The PressMite also features a built-in headphone amp.
Two alkaline 9V batteries provide power for typically more than 8 hours of continuous operation, monitored by a Battery OK LED. The batteries are easily replaced via side-mount trays. A 120VAC/24VDC power adapter (model PS24) is included. In MIC input mode, 18V phantom power is selectable and a three segment LED headroom display speeds level adjustment.
If more outputs are needed, PB Series Press Boxes can be connected to the line outputs to provide up to 48 additional mic outputs. The PressMite's box is built to withstand the abuse of public events.
| Frequency Response | 100Hz-6kHz +/- 0.3dB, 15Hz-20kHz +/- 3.0dB |
| Input Impedance | Mic: 1.5k Ohms; Line: 40k Ohms |
| Max Input Level | Mic: -14dBu; Line: +30dBu |
| Output Impedance | Mic: 150 Ohms; Line: 600 Ohms |
| Max Output Level | Mic: -17dBu Mic Outputs; Line: +12dBu |
| Total Harmonic Distortion | 0.063% at 1kHz (unity gain) |
| Rise Time | 26uS |
| Phase Shift | -0.8 degrees at 1kHz (unity gain) |
| Intermodulation Distortion | 0.08% (unity gain, Mic mode) |
| CMR at 60Hz | Mic: 75dB; Line: 60dB |
| Mic Outputs | Greater than 107dB for outputs not vertically adjacent to one another, greater than 60dB for outputs vertically adjacent |
| Line Outputs | Greater than 77dB |
| Power Requirements | (2) 9V alkaline batteries or 24 Volt external DC (120VAC/24VDC power adapter included) |
This compact, active press feed distribution box distributes 12 high-quality mic level signals and 2 line level signals with a high degree of isolation between outputs. It provides a 60dB gain adjustment for one mic or line input. The PressMite also features a built-in headphone amp.
Two alkaline 9V batteries provide power for typically more than 8 hours of continuous operation, monitored by a Battery OK LED. The batteries are easily replaced via side-mount trays. A 120VAC/24VDC power adapter (model PS24) is included. In MIC input mode, 18V phantom power is selectable and a three segment LED headroom display speeds level adjustment.
If more outputs are needed, PB Series Press Boxes can be connected to the line outputs to provide up to 48 additional mic outputs. The PressMite's box is built to withstand the abuse of public events.
| Frequency Response | 100Hz-6kHz +/- 0.3dB, 15Hz-20kHz +/- 3.0dB |
| Input Impedance | Mic: 1.5k Ohms; Line: 40k Ohms |
| Max Input Level | Mic: -14dBu; Line: +30dBu |
| Output Impedance | Mic: 150 Ohms; Line: 600 Ohms |
| Max Output Level | Mic: -17dBu Mic Outputs; Line: +12dBu |
| Total Harmonic Distortion | 0.063% at 1kHz (unity gain) |
| Rise Time | 26uS |
| Phase Shift | -0.8 degrees at 1kHz (unity gain) |
| Intermodulation Distortion | 0.08% (unity gain, Mic mode) |
| CMR at 60Hz | Mic: 75dB; Line: 60dB |
| Mic Outputs | Greater than 107dB for outputs not vertically adjacent to one another, greater than 60dB for outputs vertically adjacent |
| Line Outputs | Greater than 77dB |
| Power Requirements | (2) 9V alkaline batteries or 24 Volt external DC (120VAC/24VDC power adapter included) |
